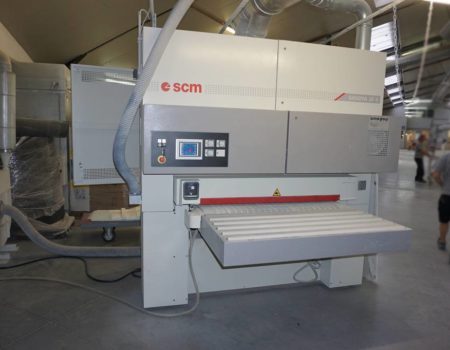

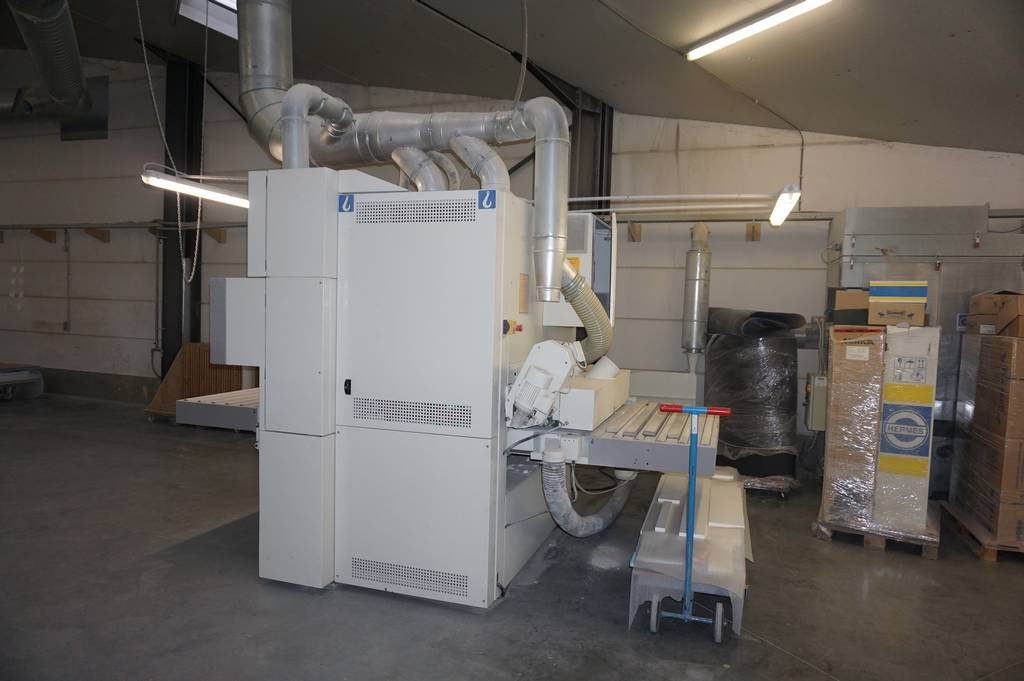

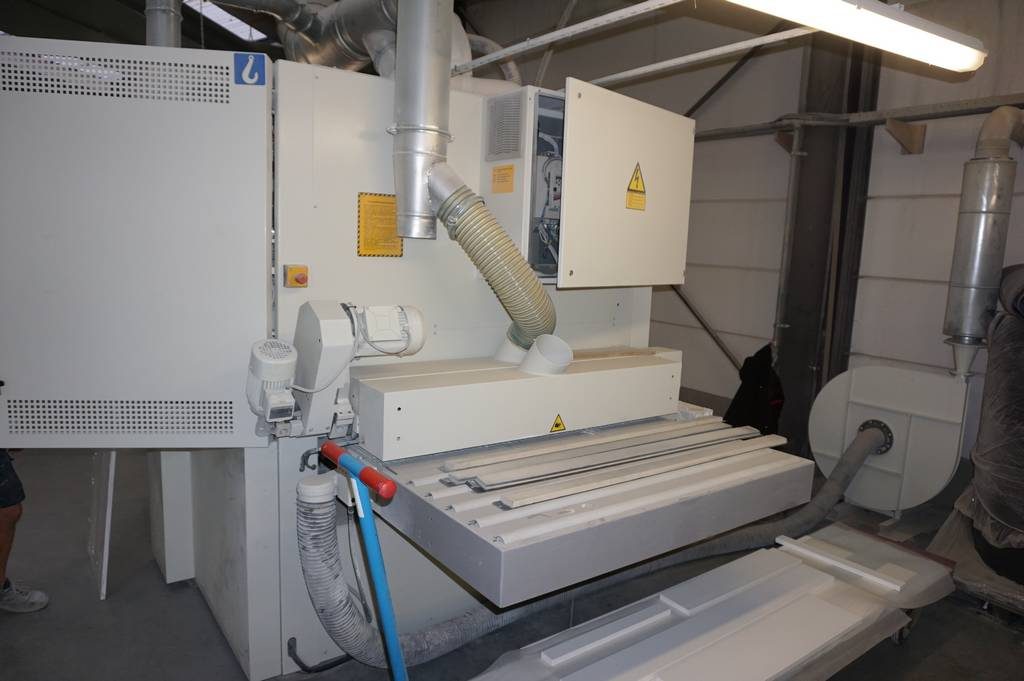

Surface sanding machine SCM Sandya 20 S with cross belt

Machine no .:

AE/028165

Operating hours

approx. 5000

Sanding width

1350 mm

Workpiece thickness max.

4-170 mm

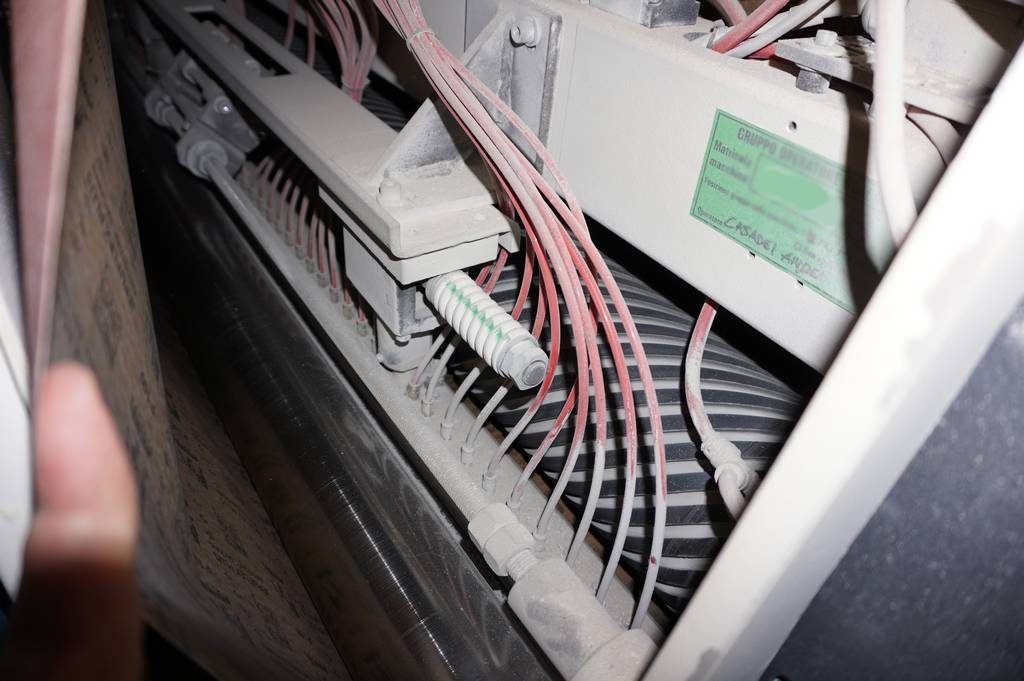

Electronically controlled, segmented pressure beam system for each sanding unit

– 46 segments with a width of 30 mm,

– automatic adjustment of the segments to the workpiece surface

– up to 2 mm tolerance compensation, (± 1 mm on the machining line)

– adjustable pressure,

– left and right segment control,

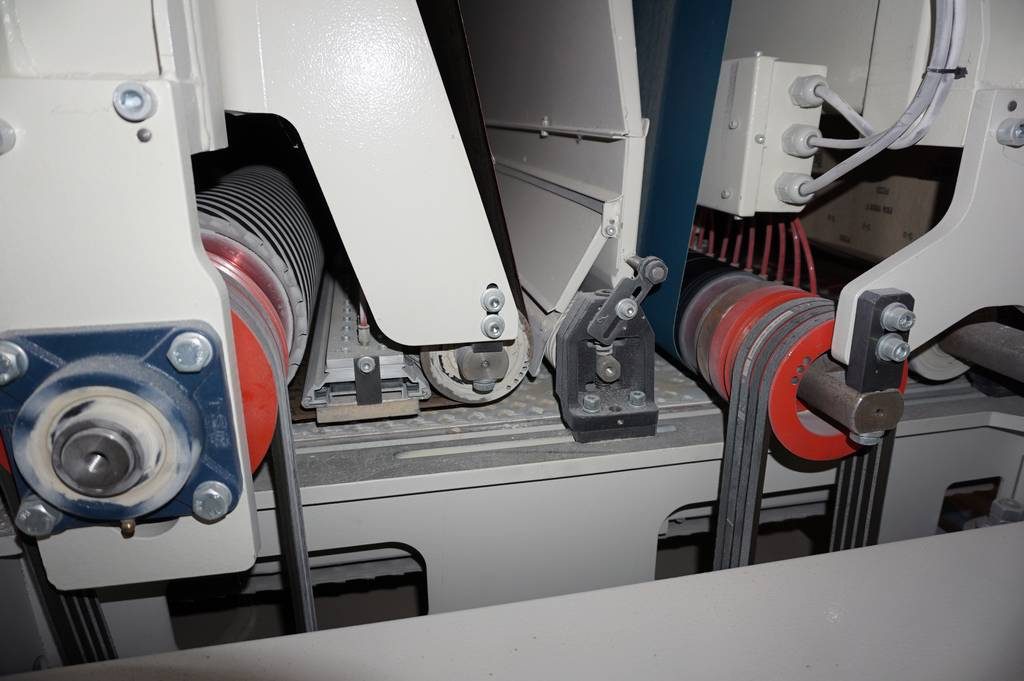

Arrangement of the units:

Cross / Longitudinal / Longitudinal /Swabbing unit

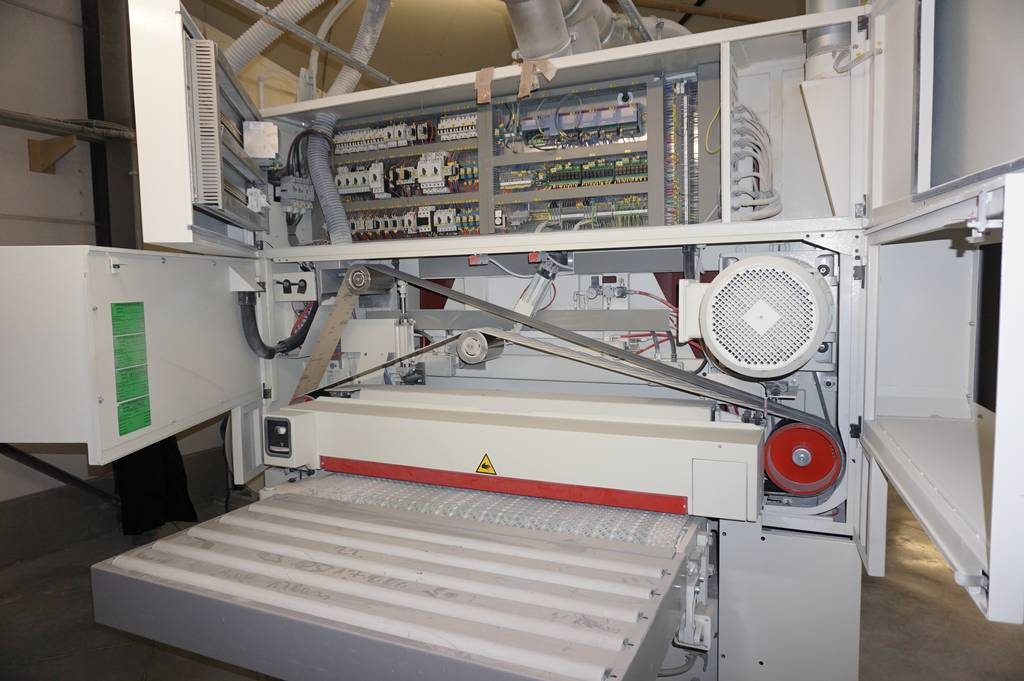

1. Front crosswise machining unit XC46

Abrasive belt dimensions: 5.500 x 150 mm

Drive power: 15 kW, belt speed 5,5 -11-22m / sec.

Lock-free braking device

Including Logic 50 basic control system for sectioned shoes

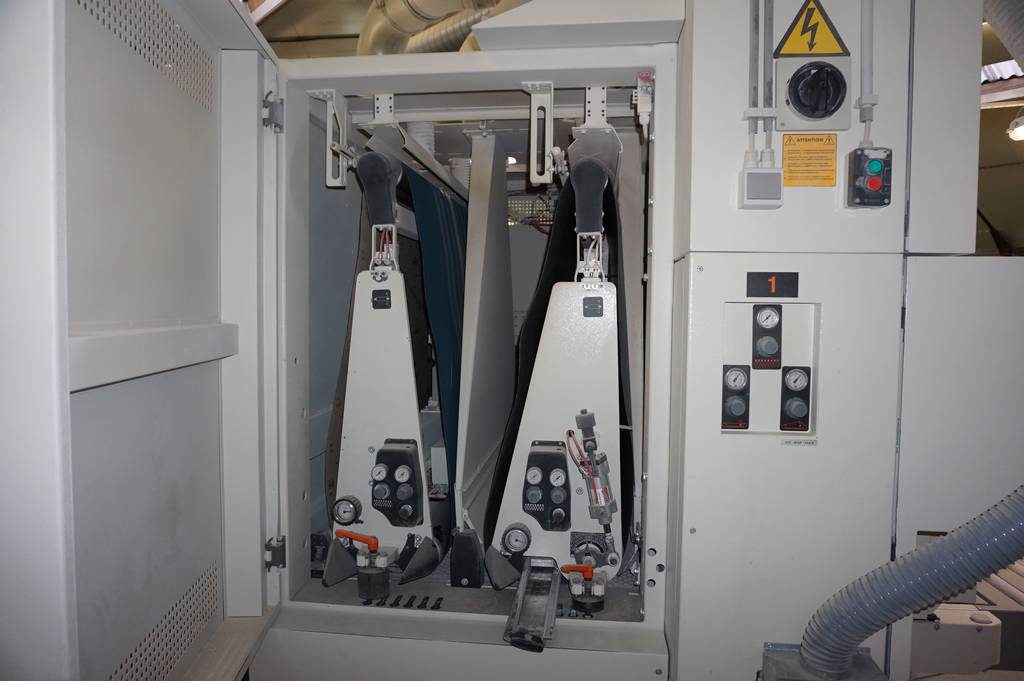

2. Longitudinal combined rolled and pad sanding unit

45 shore grooved rubber roller CR45, diameter 175mm with electronically controlled pad type TSE 46 – hardness 0,68.

Drive power: Frequency with 18.5kW motor. Setting the belt speed between 3 – 18m / sec.

Abrasive belt dimensions: 2.620 x 1370 mm,

Pneumatic belt tension, intermittent belt radiating device,

Automatic infrared band control, band oscillation 100 mm with appropriate grinding belt width, grinding belt in the opposite direction,

3. Longitudinal pad sanding unit

Electronically controlled pad unit Type TSE 46 – hardness 0.68.
Drive power: Frequency with 15kW motor. Setting the belt speed between 3 – 18m / sec.
Abrasive belt dimensions: 2.620 x 1370 mm
Wear-free brake device, pneumatic belt tensioning, intermittent belt irradiation device,
Automatic infrared band control, band oscillation 100 mm with appropriate grinding belt width, grinding belt in the opposite direction,

4. Swabbing unit type GSO / 200 with electromechanical oscillation

Diameter: 200 mm, drive power: 2,2 kW, eccentric adjustment of the roller, rubber pressure roller at the output side.

Work table positioning.

Electronic sensor for measuring workpiece thickness

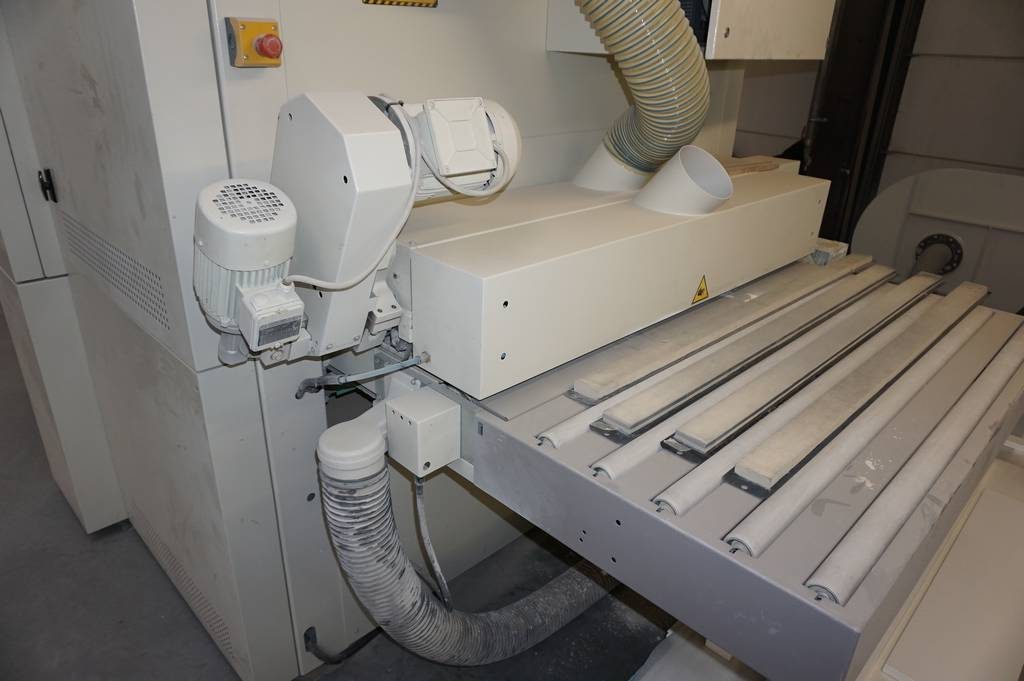

Inlet and outlet roller extensions

For long workpieces

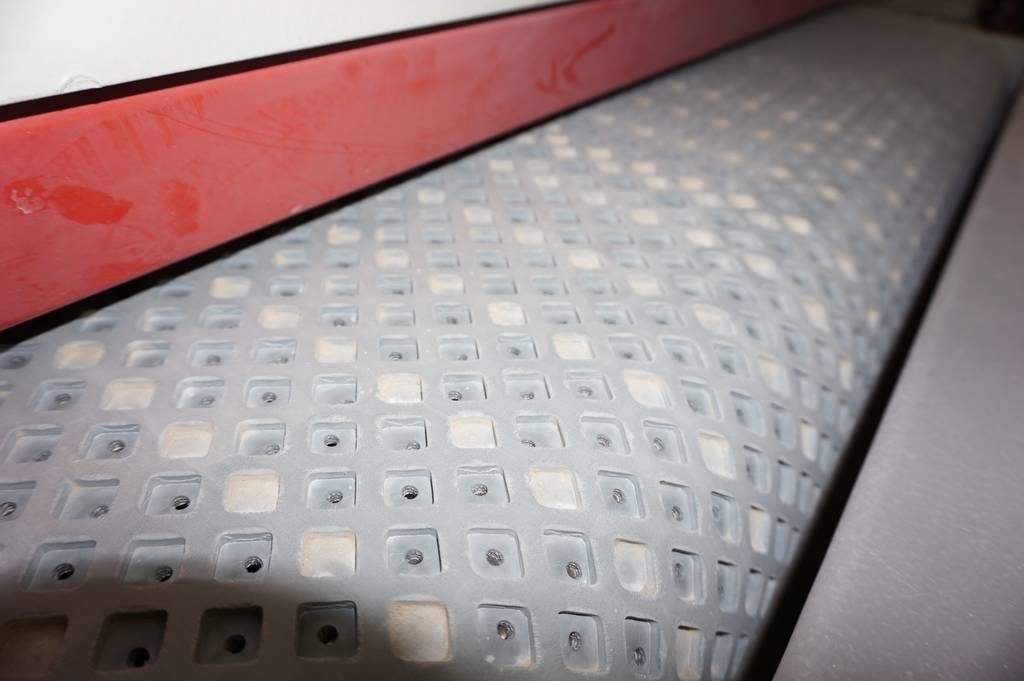

Conveyor belt with vacuum

Fan 5.5 kW

Feed rate

3,5 – 18 m/min

Feed motor

2,2  kW

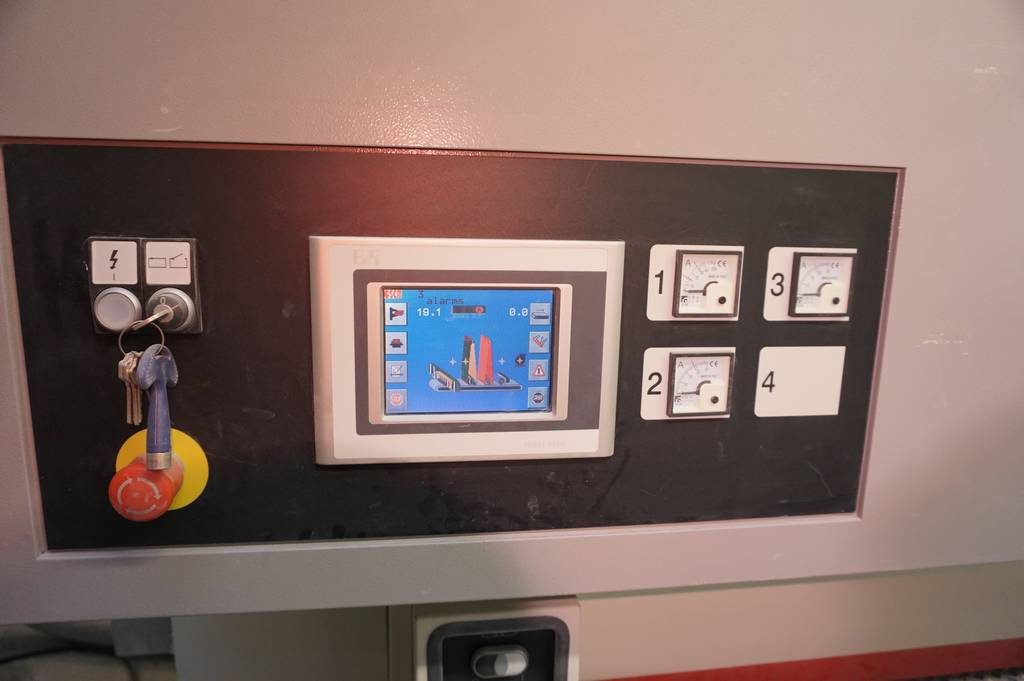

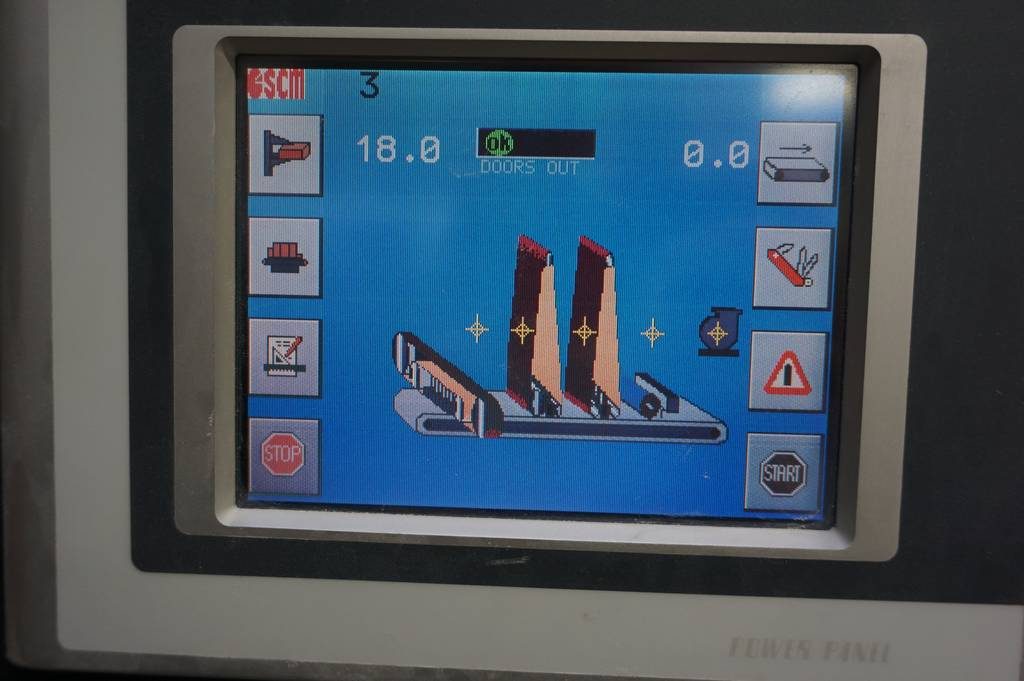

“Touch Screen” operating terminal

LCD 5.7 “color screen, Interactive graphical operation of the machine. Programming the segmented pressure beam system.

Incl. Feedrate and feedrate display, input of the workpiece thickness in the terminal.

Program memory for max. 120 programs

Values loop start, grinding, grinding edge Intensity is stored and automatically set after the program has been selected.

Control panel and tape support

Right

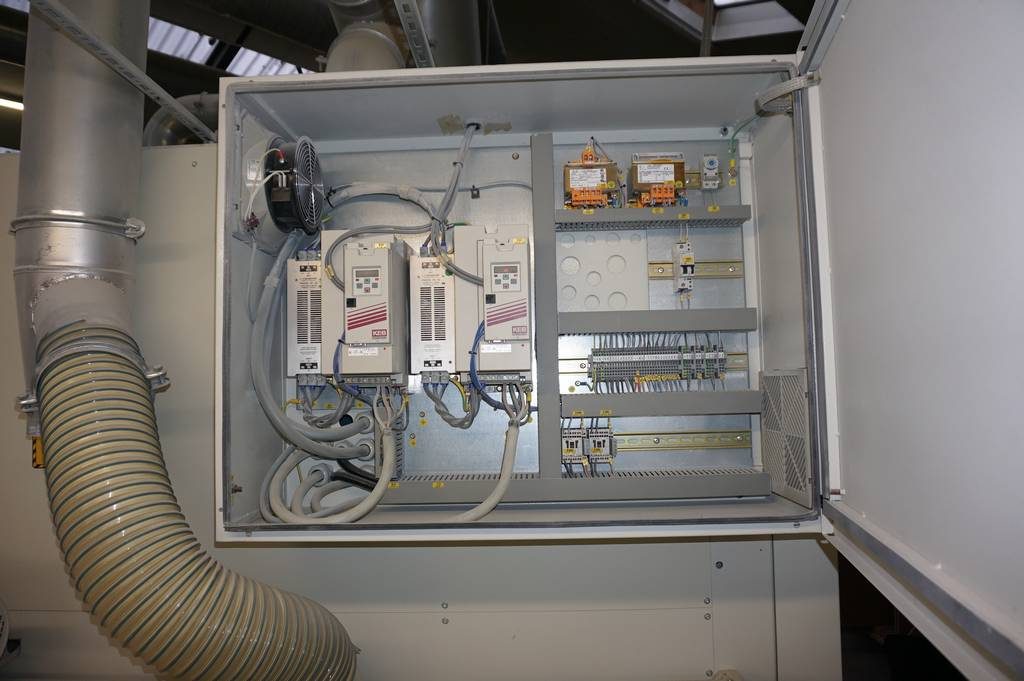

Total connection value

approx. 58 kW

Suitable

Veneer sanding, easy calibration

Weight

3.700 kg
