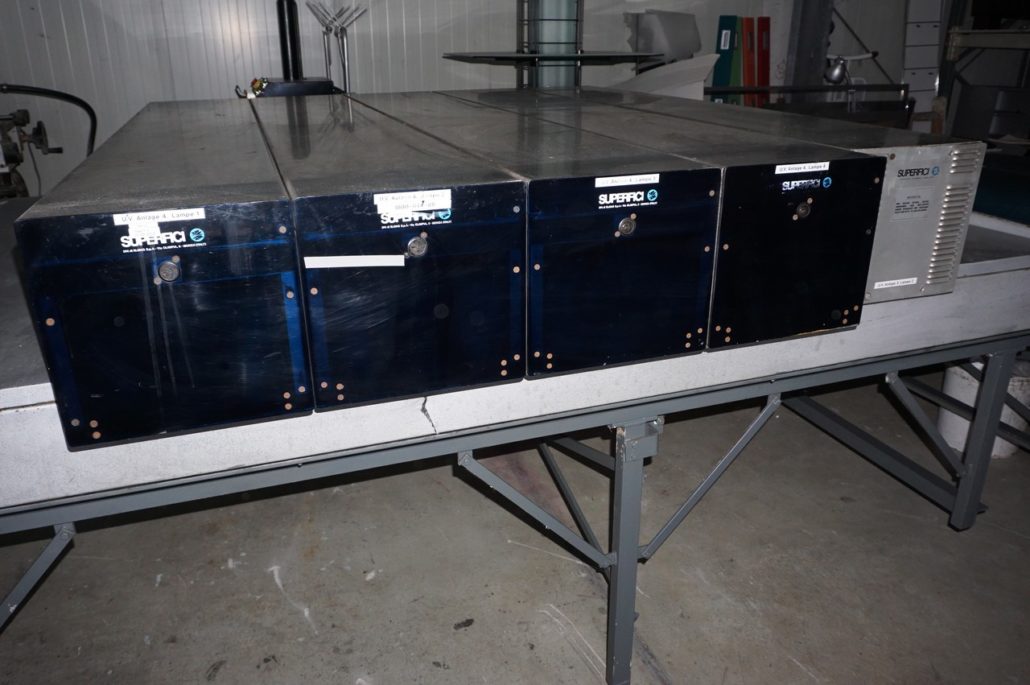

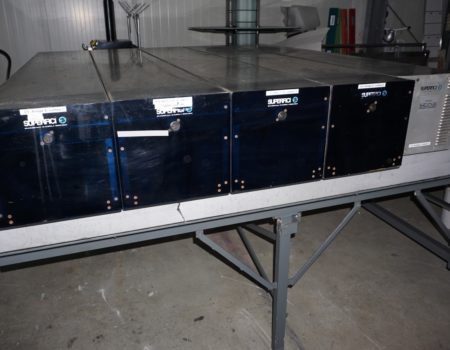

Description
|
Machine no .: |
|
|
Total length of the dryer |
4200 mm |
|
Overall width |
2305 mm |
|
working height |
860 – 940 mm |
|
Max. Workpiece width |
1200 (1300 mm) |
|
Max. Workpiece thickness |
70 mm |
|
minute Workpiece length |
200 mm |
|
1 Modul with 1 UV- spotlight |
Lamp type gallium |
|
1 Modul with 1 UV- spotlight |
Lamp type gallium |
|
1 Modul with 1 UV- spotlight |
Lamp type mercury |
|
1 Modul with 1 UV- spotlight |
Lamp type mercury |
|
Lamp review |
each approx. 80W /cm2 |
|
Beam length |
1440 mm |
|
Cooling fan |
4 x 900 m³/h |
|
Power |
4 x 1,1 kW |
|
Tilting device of the spotlights |
electro- pneumatic |
|
Feed rate |
2,2 – 25 m/min |
|
Feed motor |
1,5 kW |
|
Transport bandwidth |
1200 mm |
|
Separate control cabinet |
|
|
Operating voltage |
400 V, AC, 50 Hz, 3 Phasen |
|
Overall performance complete machine |
approx. 45 kW |
|
Mass |
approx. 1100 kg |
|
Location |
D-32683 Barntrup |
(Subject to technical errors/modifications and prior sale)
