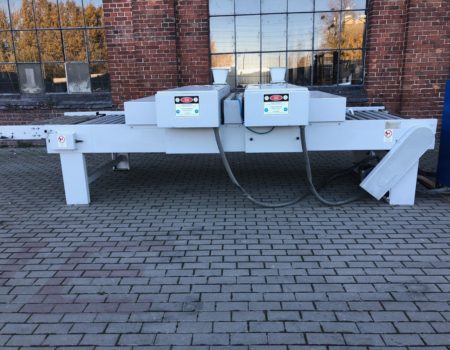

Description
Total length 4000 mm
Total width 2492 mm
Max. working width 1300 mm
Max. working height 70 mm
Min. Working length of the material 400 mm

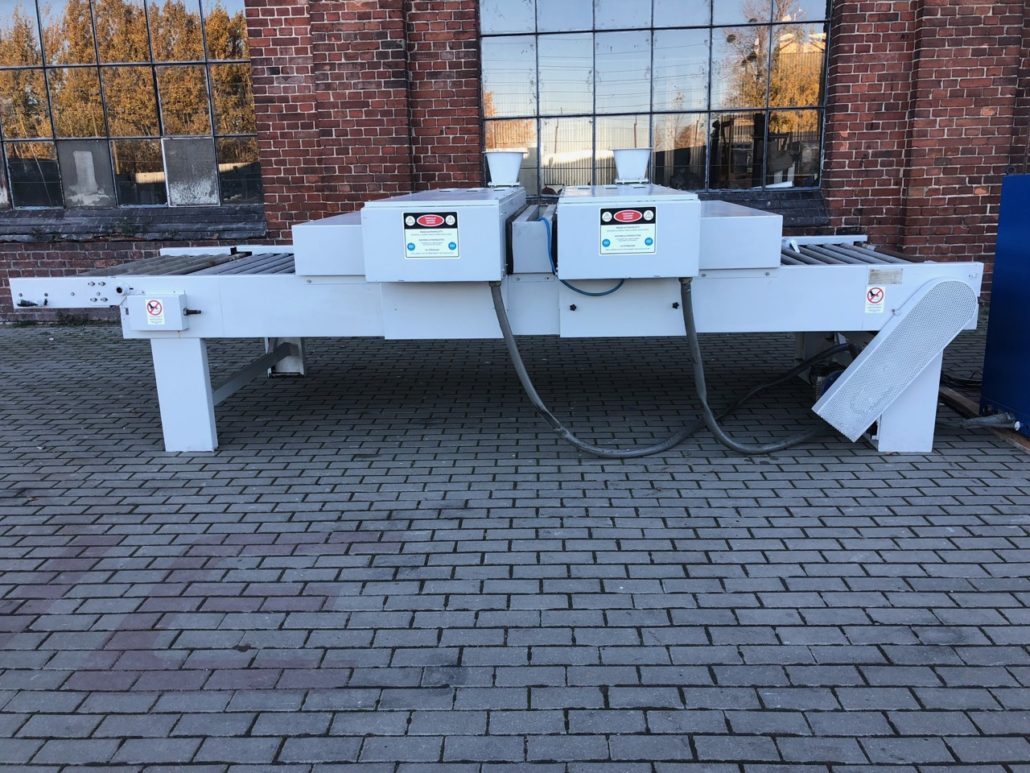

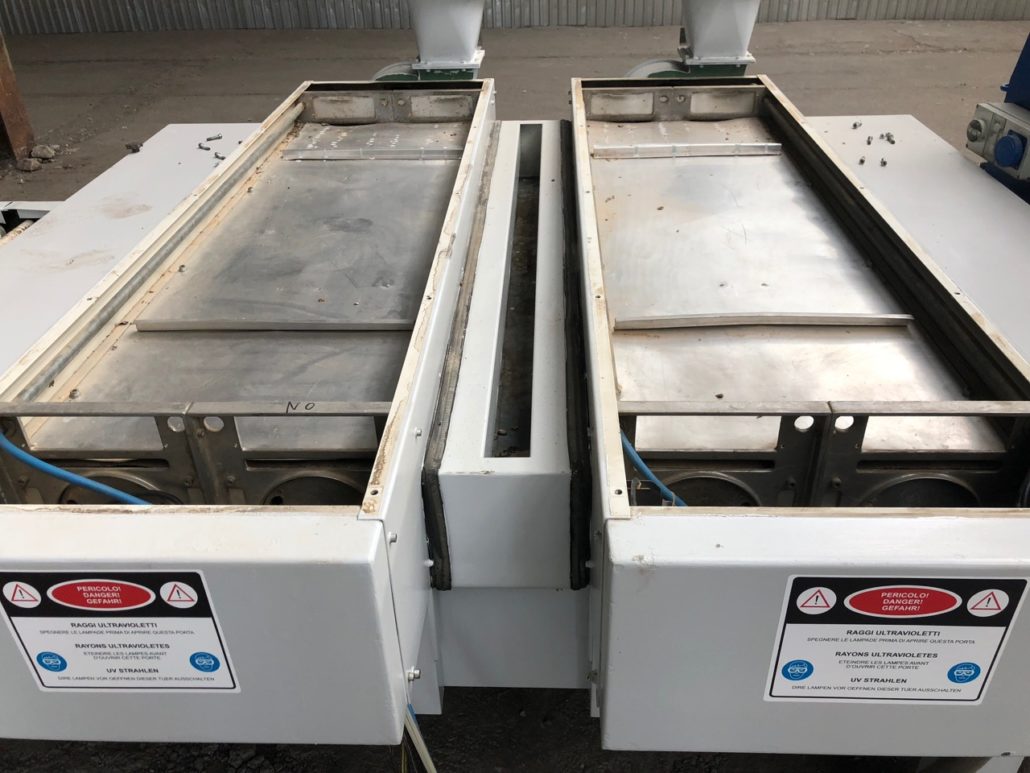

2 Modules with 3 UV radiators Type: TLF / 3L 80W
Lamps efficiency and energy consumption 3 x 80 W / cm2, 3 x 11 kW
Length of radiators 1445 mm

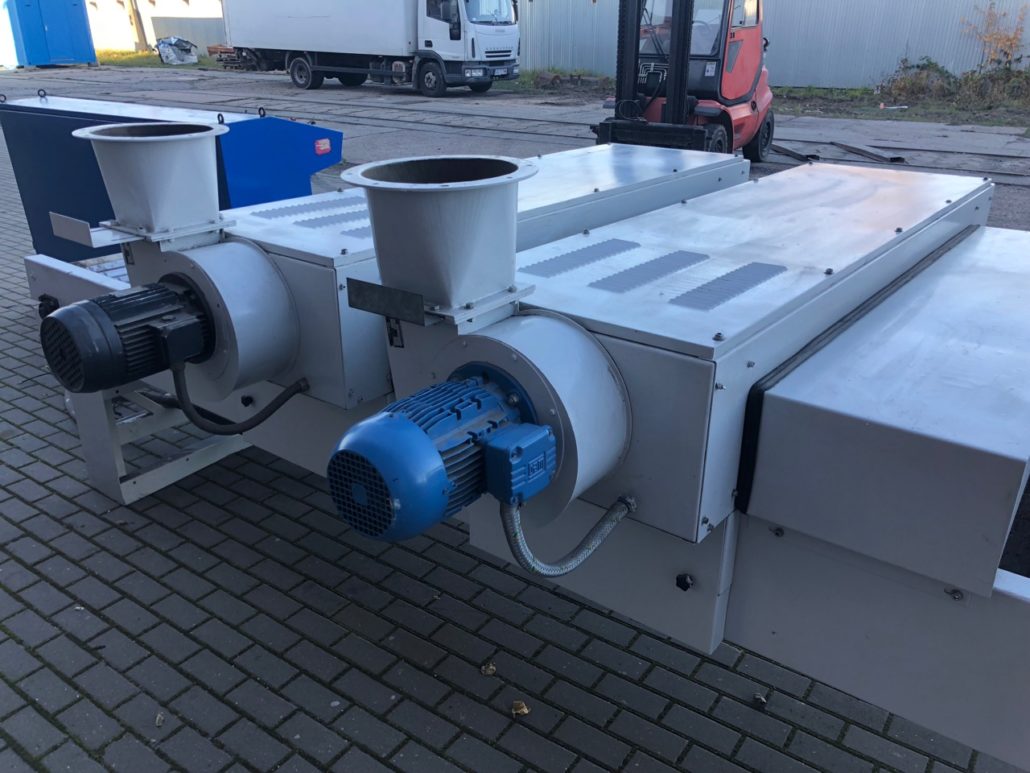

Cooling fan 2 x 900 m³ / h
Fan power 2 x 0.55 kW
The consumption of air flow 2 NL / Zycklus
Rotating the radiators Electro-pneumatic system

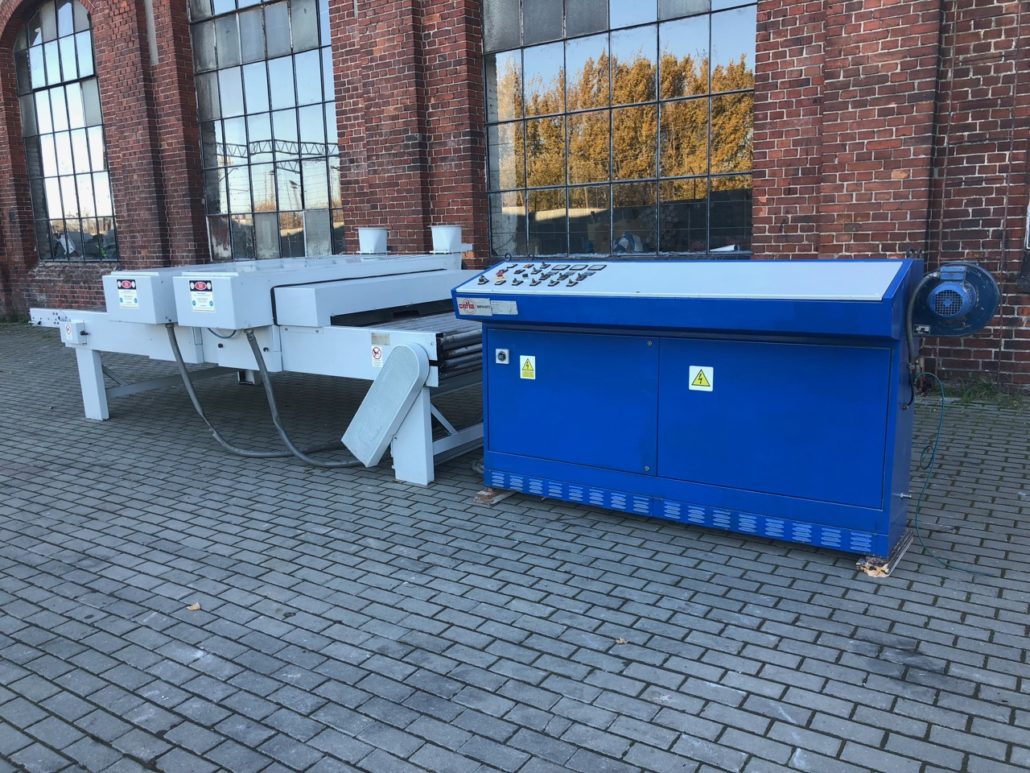

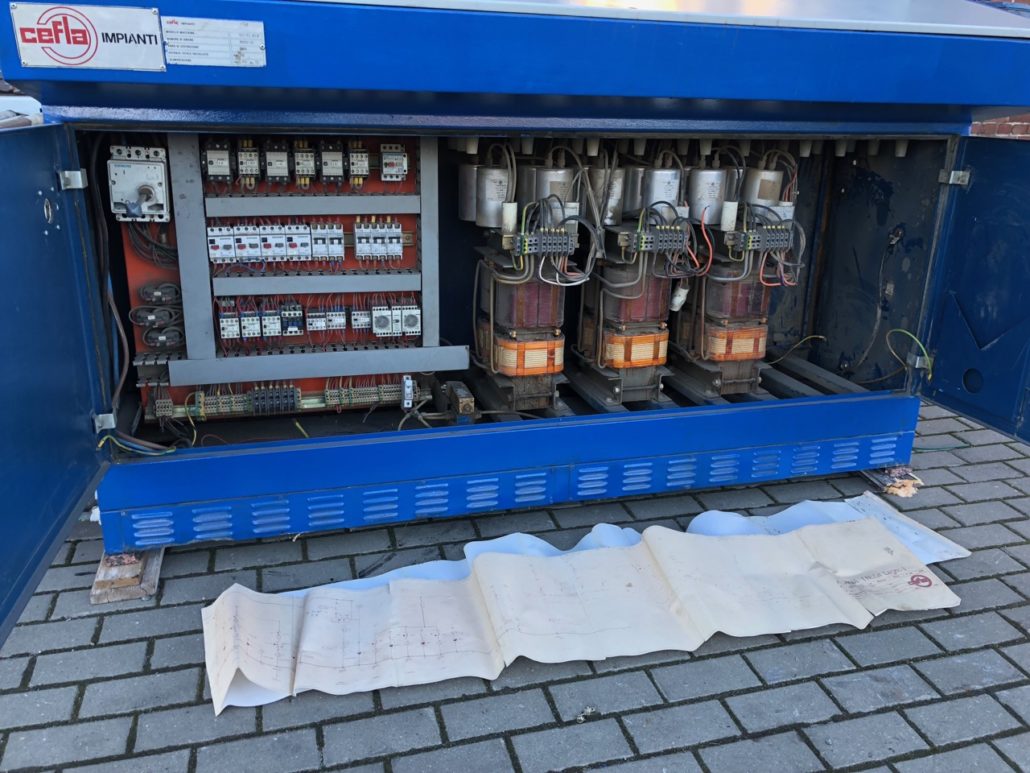

Separate control cabinet

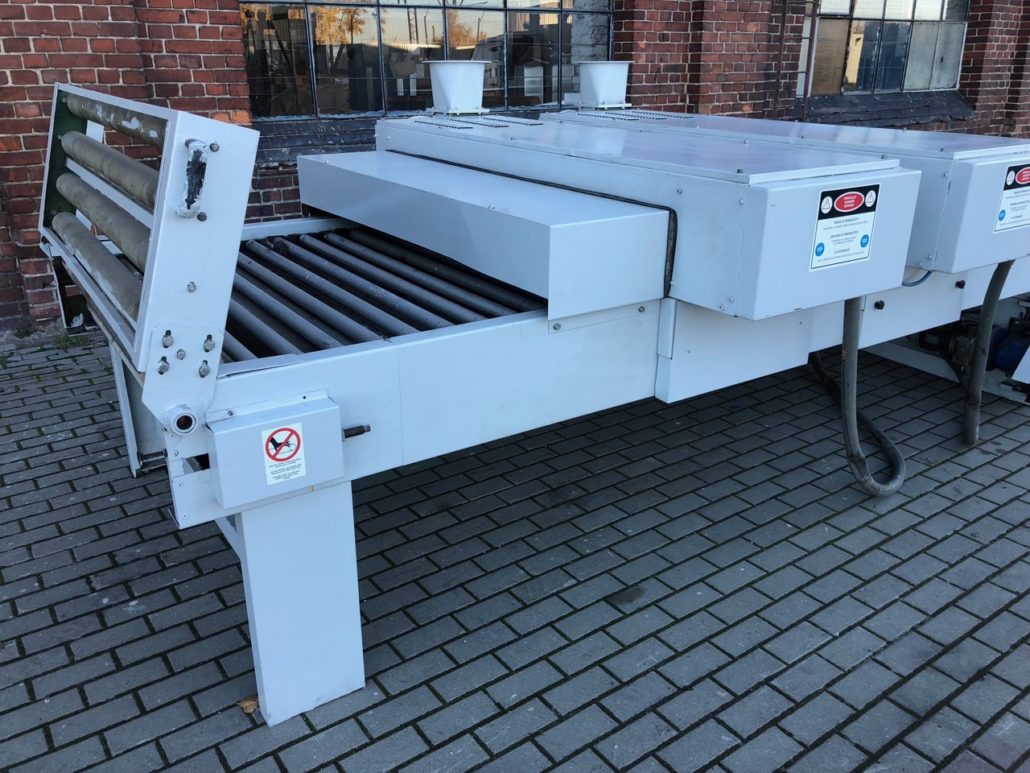

Hook conveyor driven by two side chains simultaneously Type: TLF 40 / BB8 / 3 / R
Transporter length 4000 + 500 mm flap
Working width 1300 mm
Working height from the substrate 860 – 940 mm
Feed 0.65 kW
Feed speed 2.2 – 19.4 m / min
Power voltage 380 V, AC, 50 Hz, 3 Phasen
Total machine power 38 kW
Weight about 2200 kg
Location Gdansk / Poland
(Subject to technical errors/modifications and prior sale)
