Description
The machine are specially designed to carry aout on edges all the processes which are normally carried out on surfaces.
The machine can be employed in the functions:

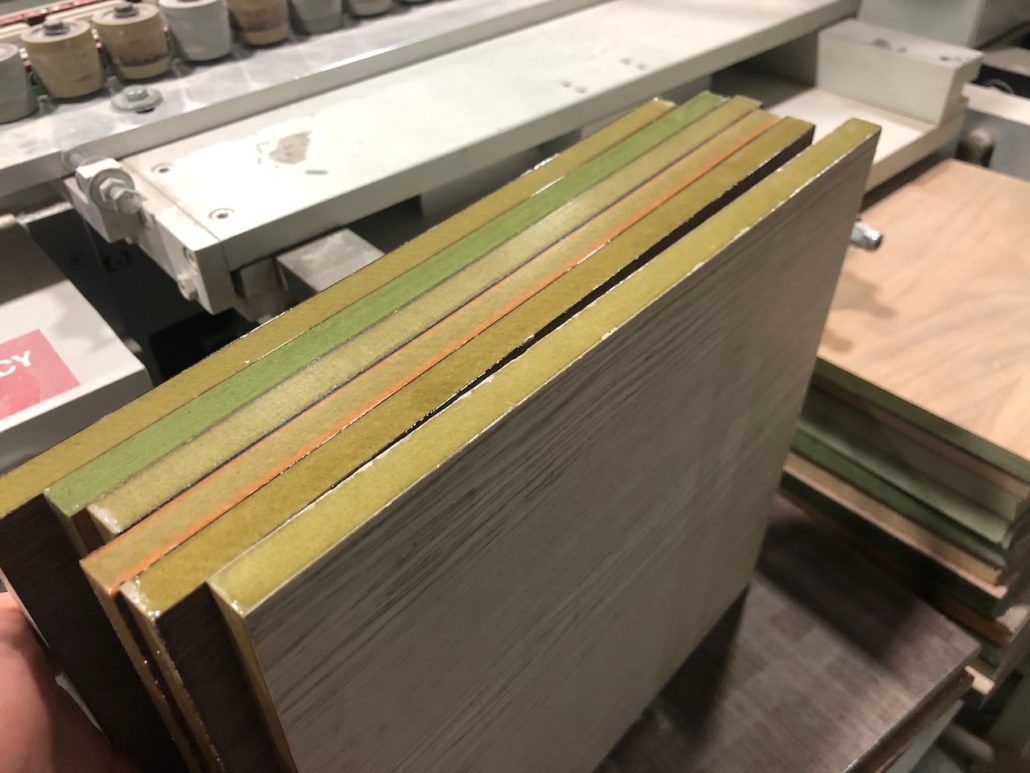

1) wooden or veneered edges finishing for any type of veneer
2) edge filling operation before the finishing for any type of constructed board like PD, OSB, MDF, etc.

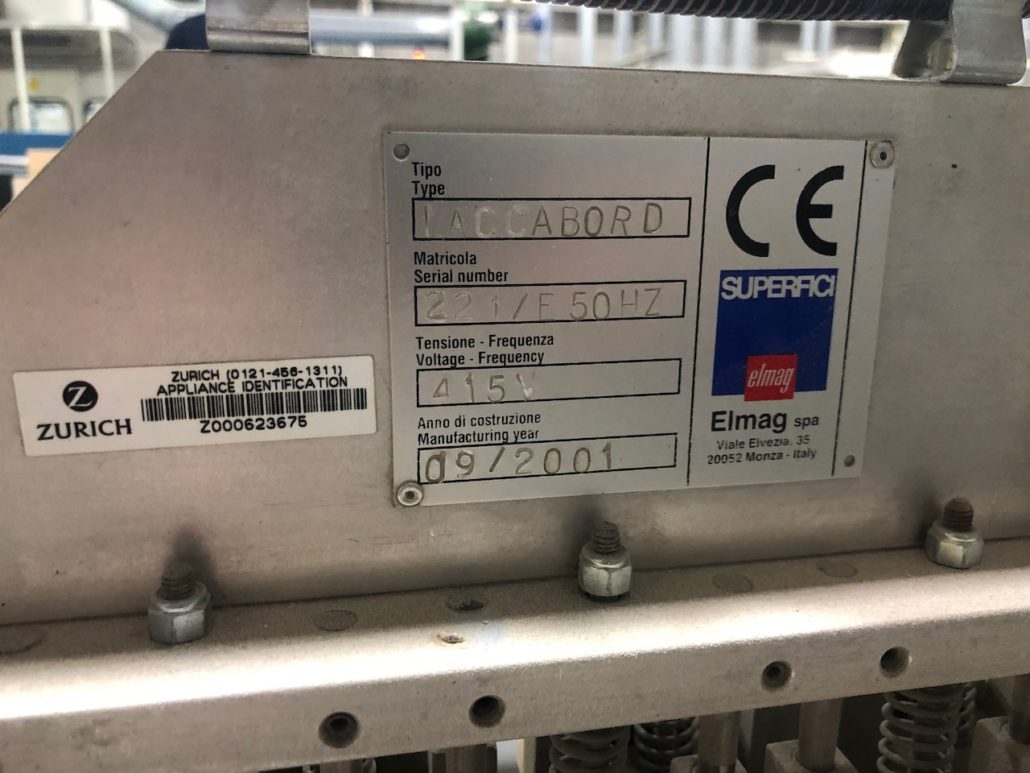

Masch.: – Nr. 221/E

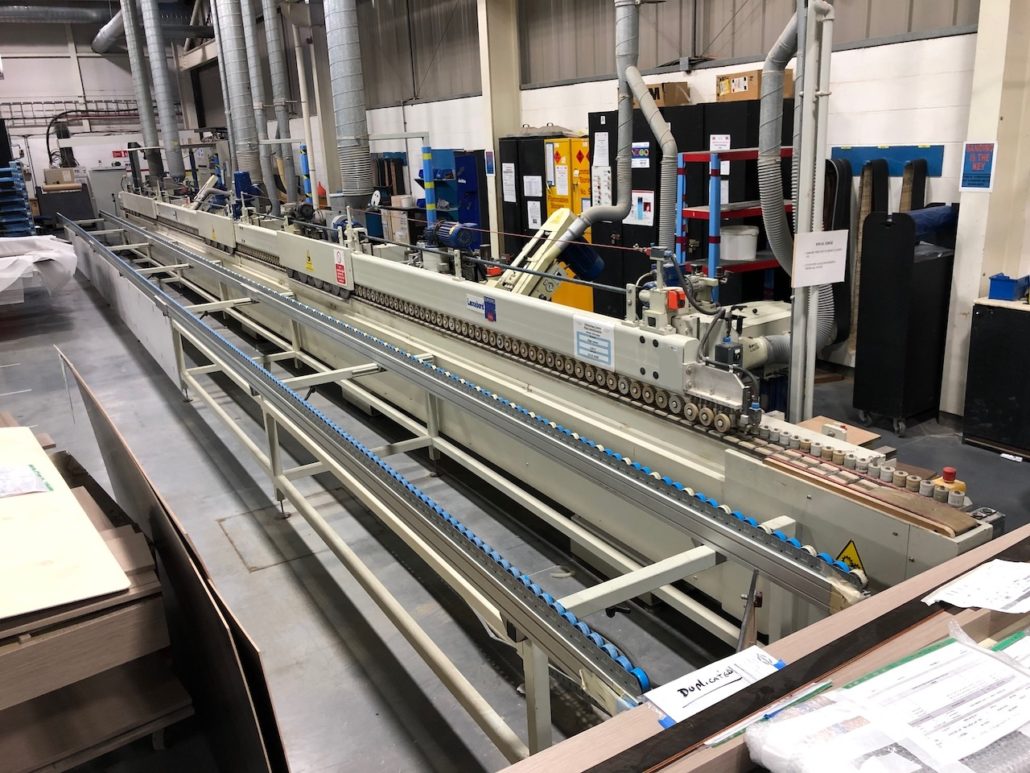

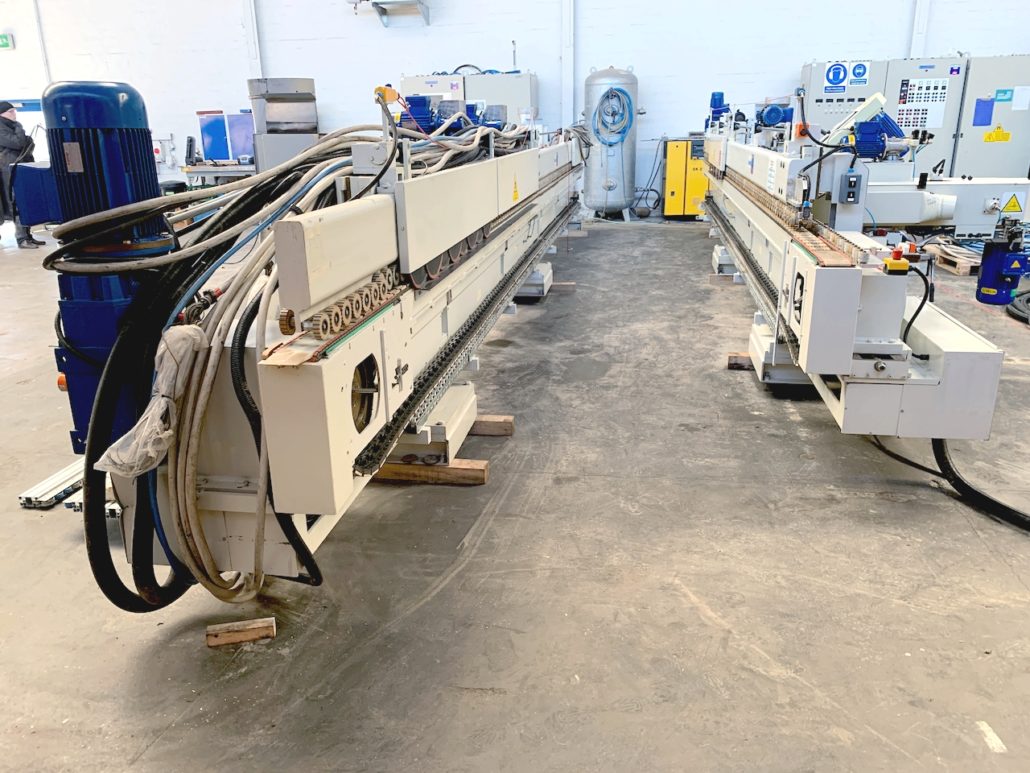

Machine lenght approx. 20.000 mm
Max. thickness of working pieces 60 mm
Min. thickness of working pieces 10 mm
Min. working width 100 mm
Working units:

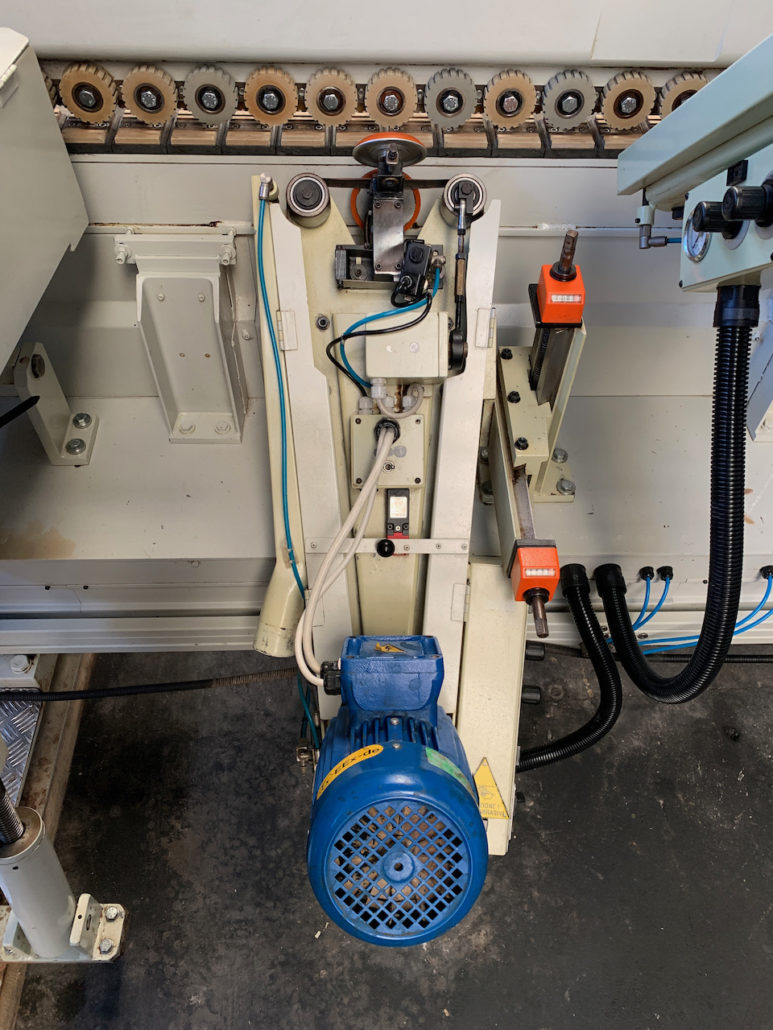

– Honing / Sanding unit TP for sanding of unfinished and painted edges Motor 3 kW, Inverter- driven, speed from 100 rpm to 1800 rpm with oscillation 0,18 kW.

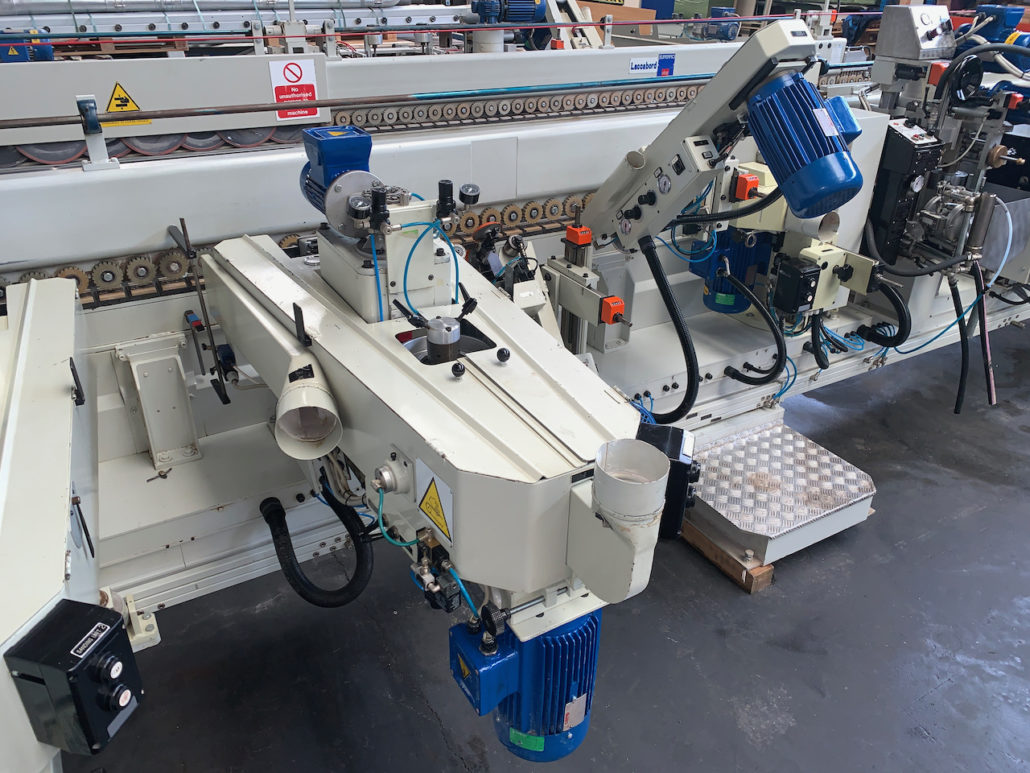

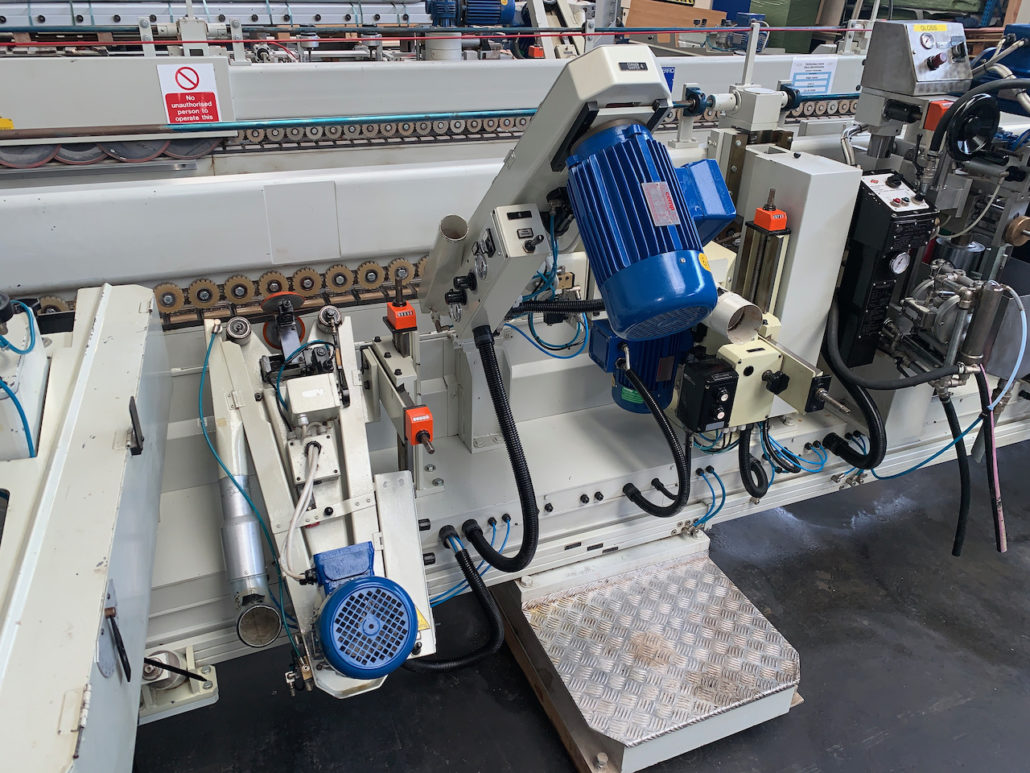

– Bevelling unit for sanding edges and shapes having sharp or radiuses corners Lower/upper 2 x 1,5 kW with oscillation

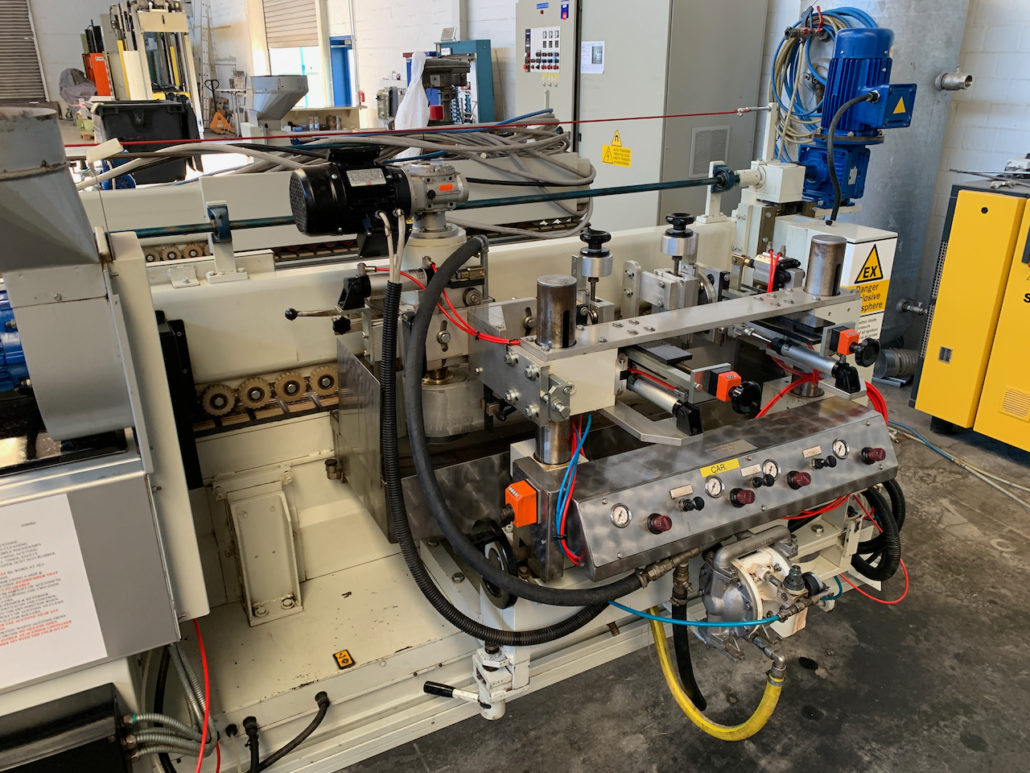

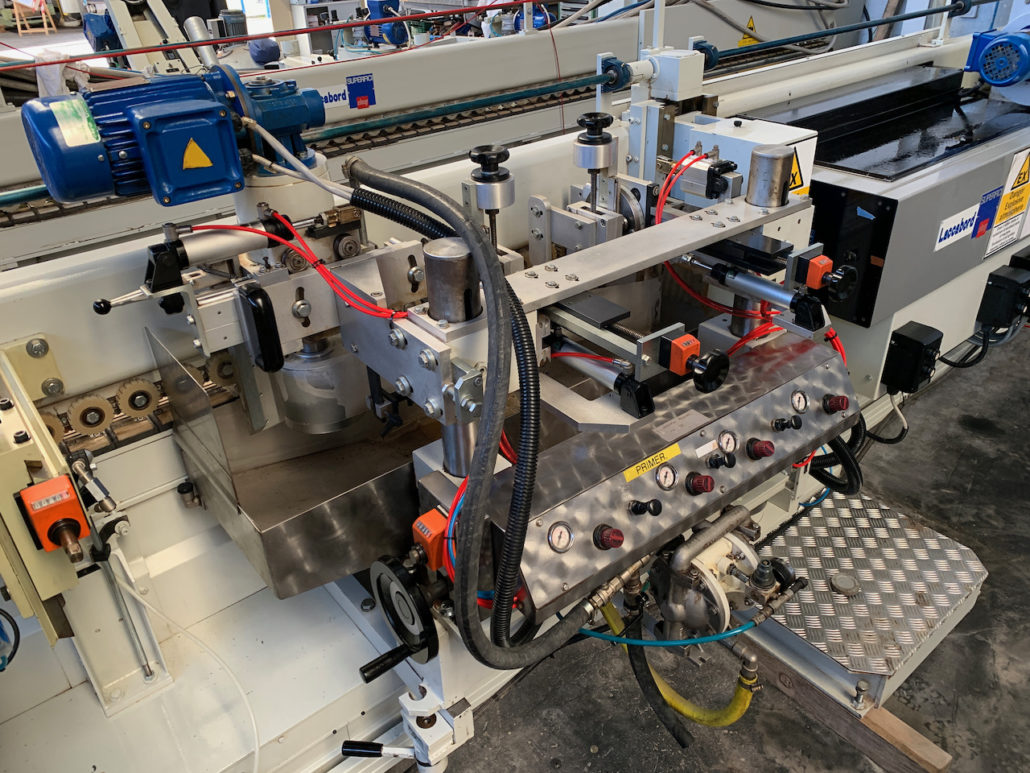

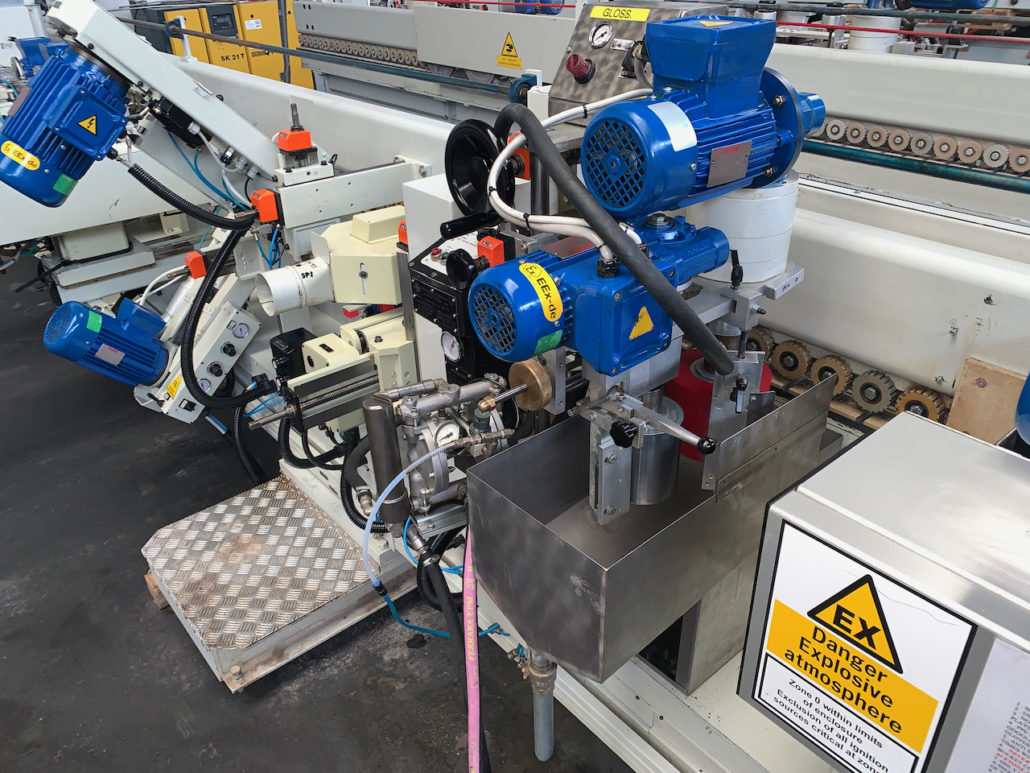

– Belt paint applying unit mod. NST with 2 coating knifes in nylon. Lacquer applied 5 – 70 g/m2, Motor 0,37 kW

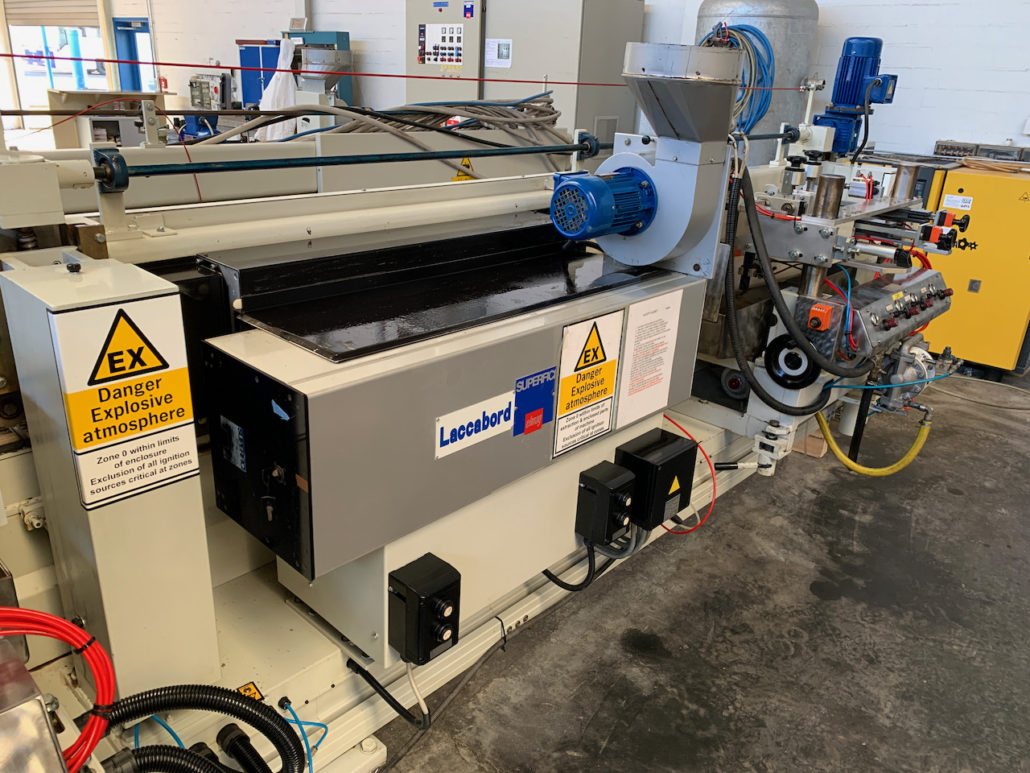

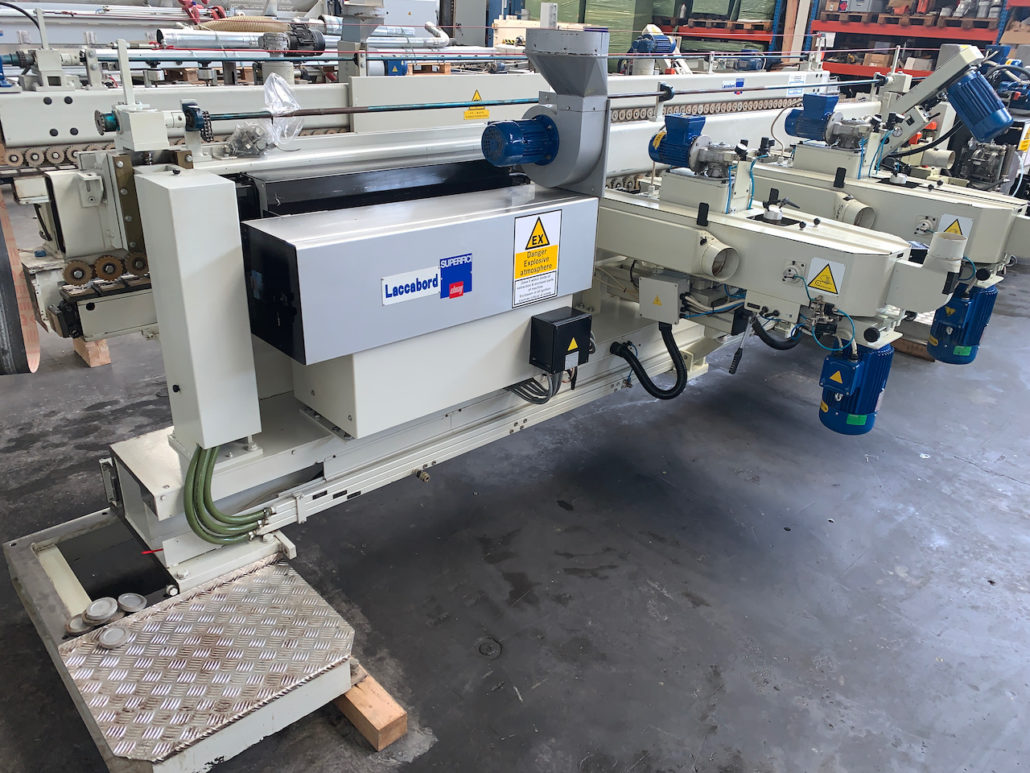

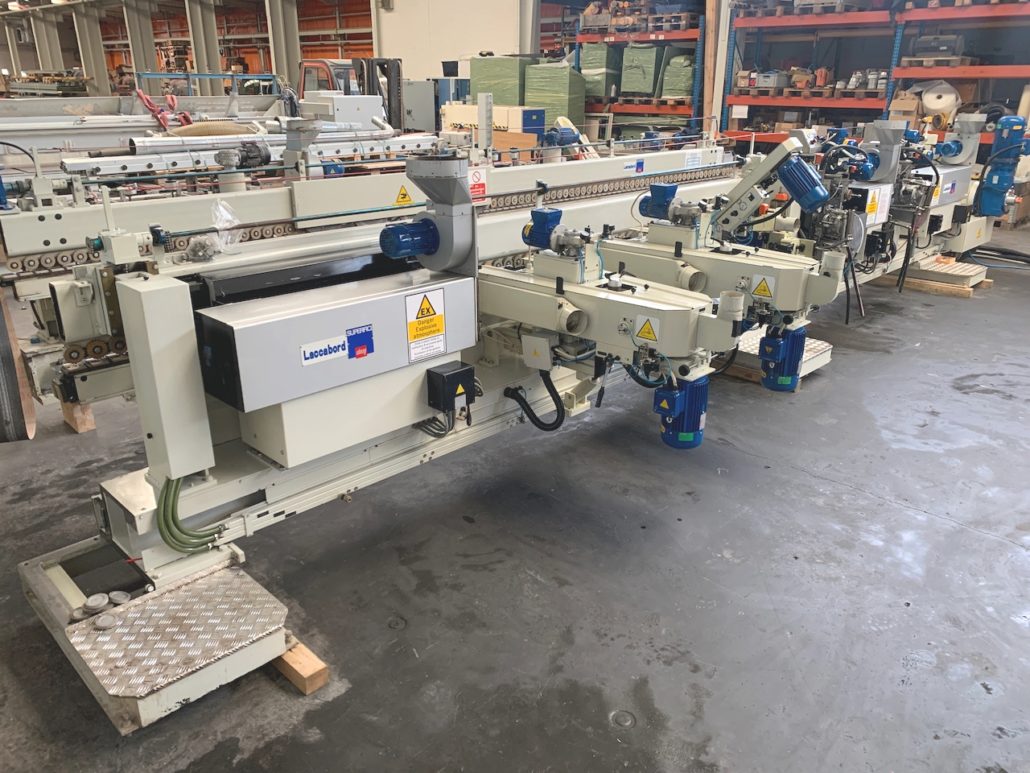

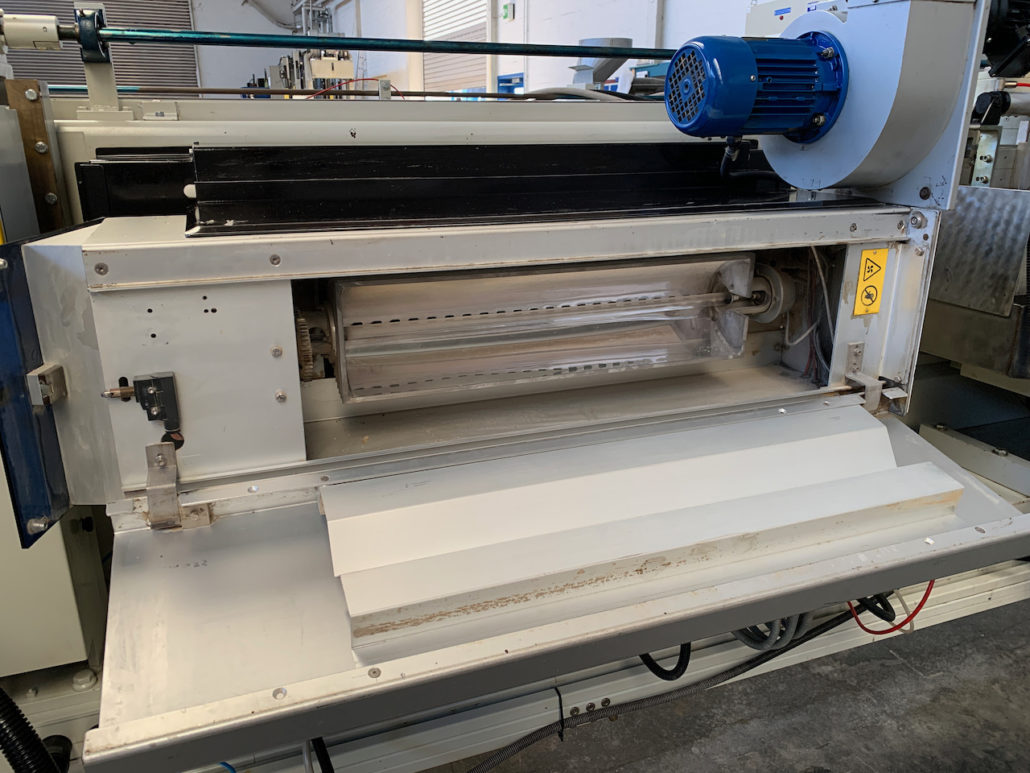

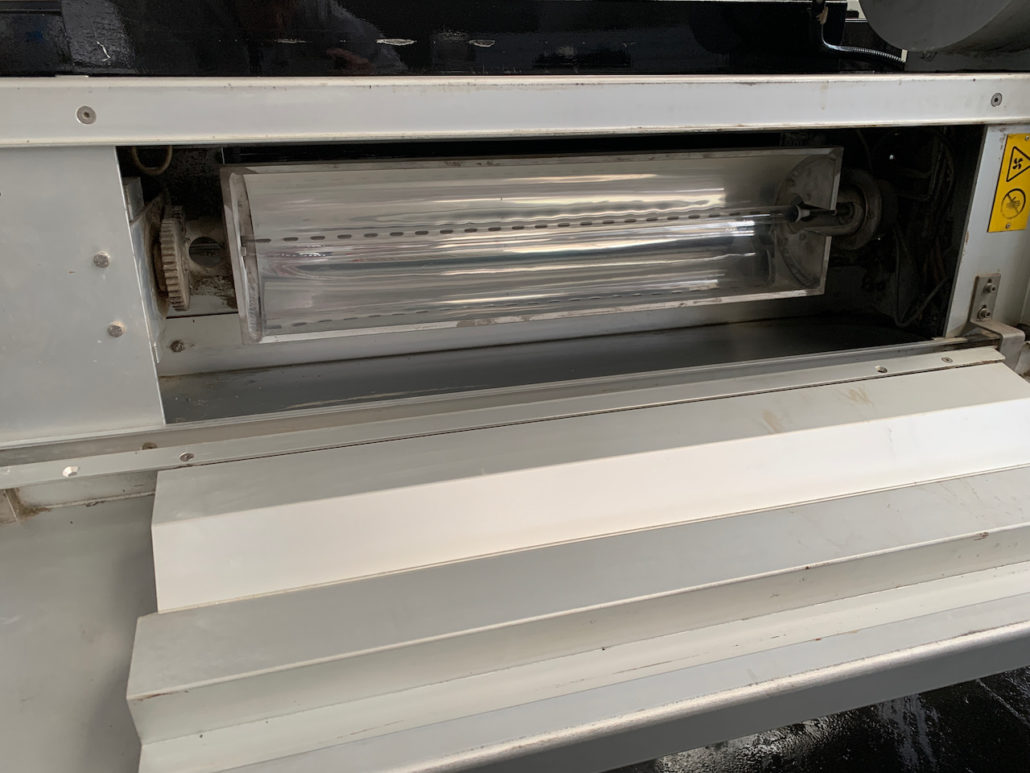

– 25“ ultraviolet drying unit 1400 mm LAMP, 120 W/cm, Ventilator 1,1 kW

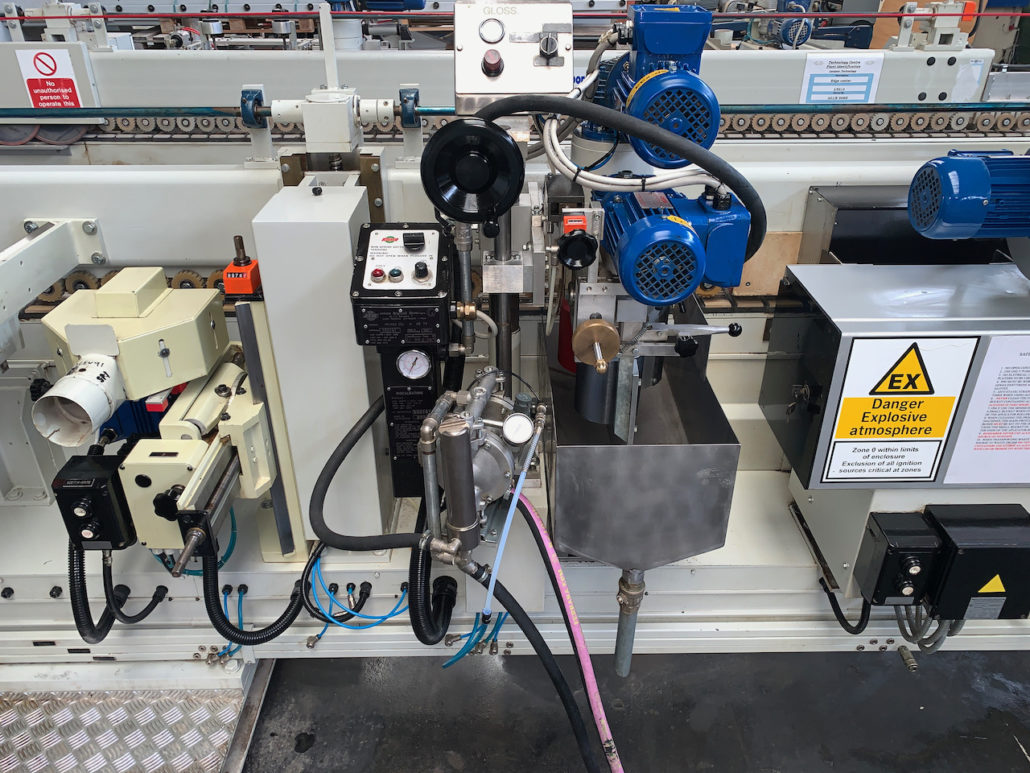

– Belt paint applying unit mod. NST with 2 coating knifes in nylon. Lacquer applied 5 – 70 g/m2, Motor 0,37 kW. Membrane pump. Belt oscillation.
– 25“ ultraviolet drying unit 1400 mm LAMP, 120 W/cm, Ventilator 1,1 kW
– Honing / Sanding unit TP for sanding of unfinished and painted edges Motor 3 kW, Inverter- driven, speed from 100 rpm to 1800 rpm with oscillation 0,18 kW.
– Honing / Sanding unit TP for sanding of unfinished and painted edges Motor 3 kW, Inverter- driven, speed from 100 rpm to 1800 rpm with oscillation 0,18 kW.
– Bevelling unit for sanding edges and shapes having sharp or radiuses corners Lower/upper 2 x 1,5 kW with oscillation
– Scotch Brite unit 1,1 kW, abrasive Wheel D-250mm, adjustable 0° – 90°, vertically or horizontally

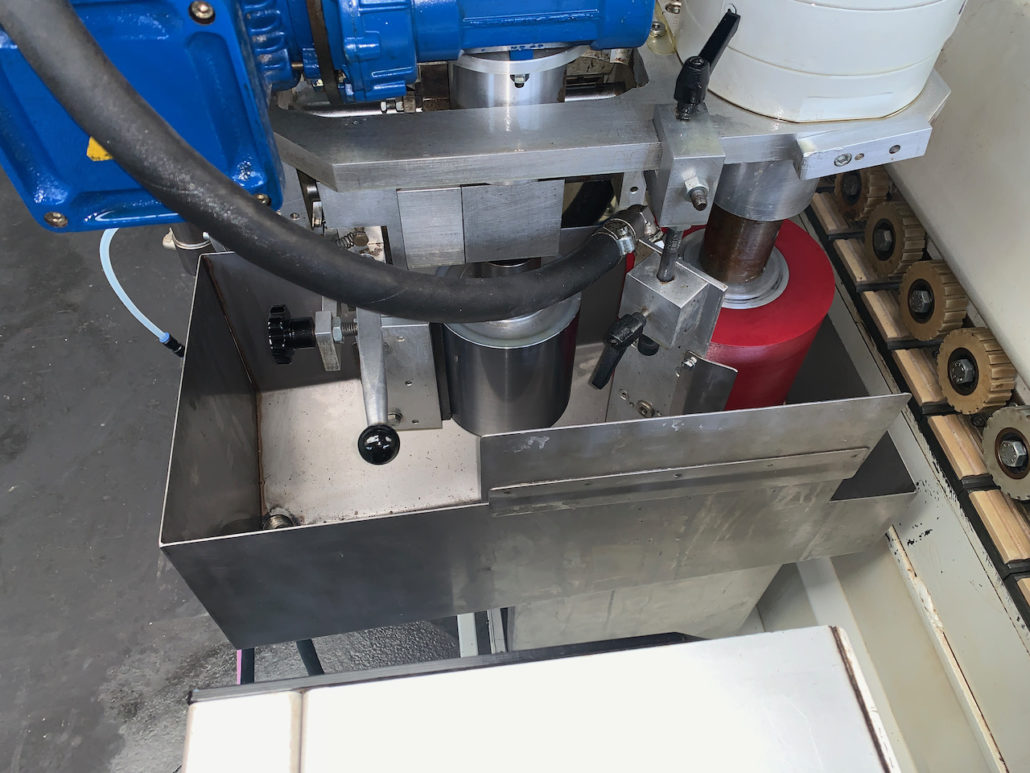

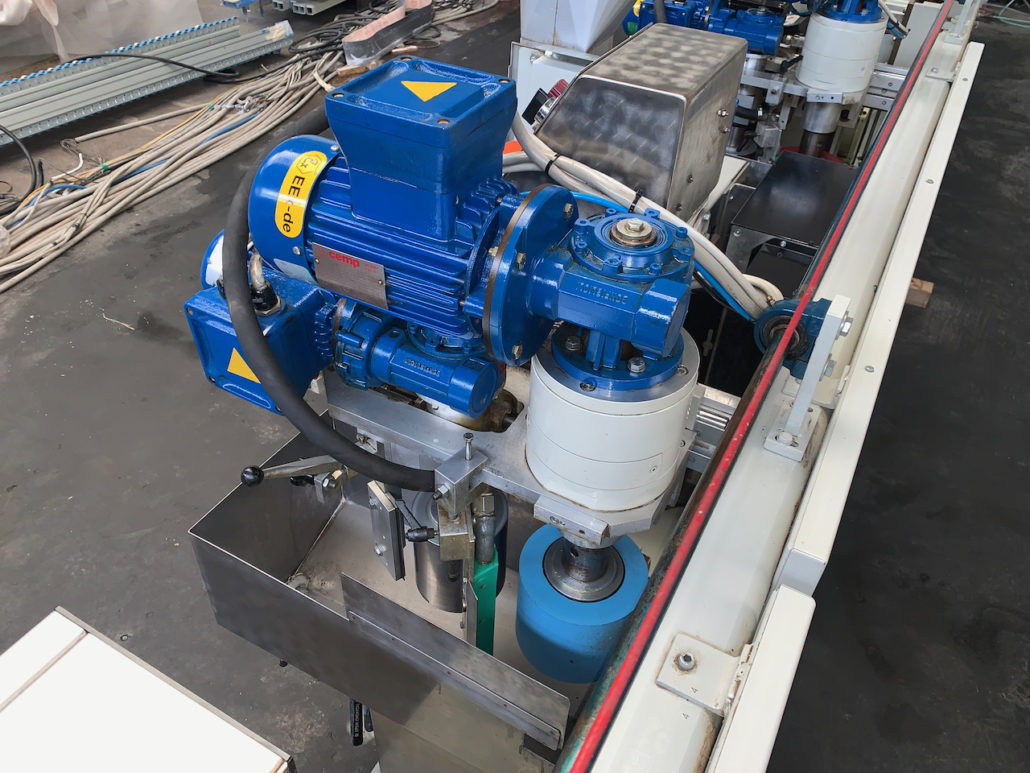

– Roller group with applying Smooth roller – spreading machine roller 0,37kW, Doctor roller 0,37kW
– G220 ultraviolet drying unit

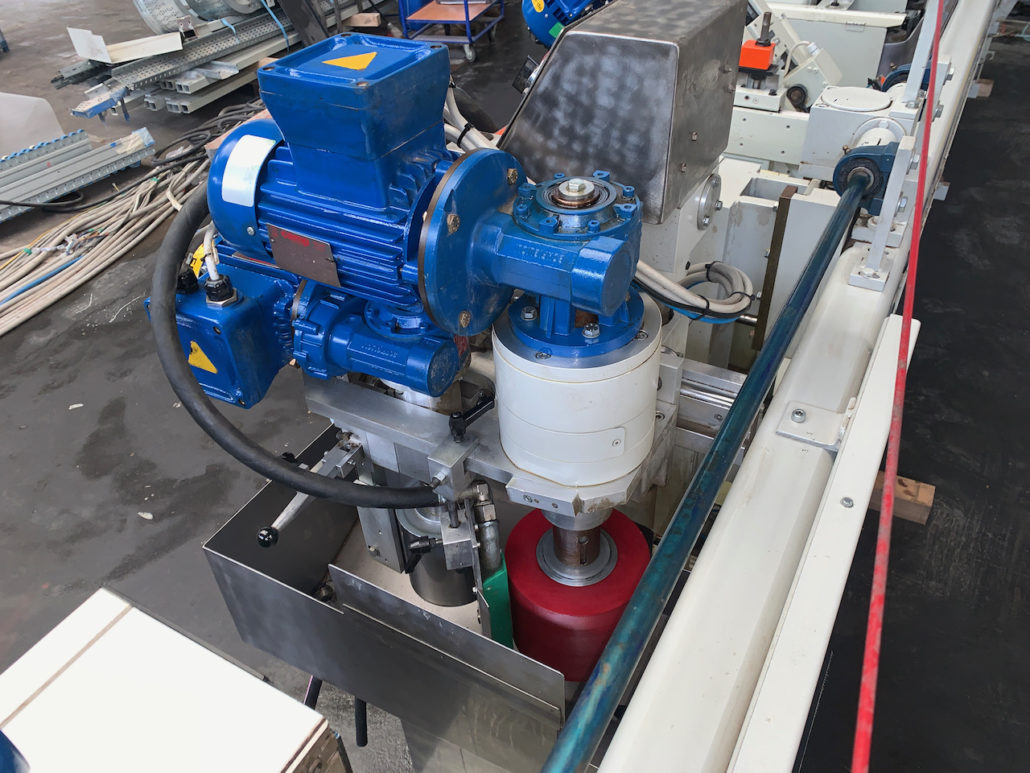

– Roller group with applying Grooved roller 175 x 140 – 30SH – – spreading machine roller 0,37kW, doctor roller 0,37kW
– 25“ ultraviolet drying unit 1400 mm LAMP, 120 W/cm, Ventilator 1,1 kW

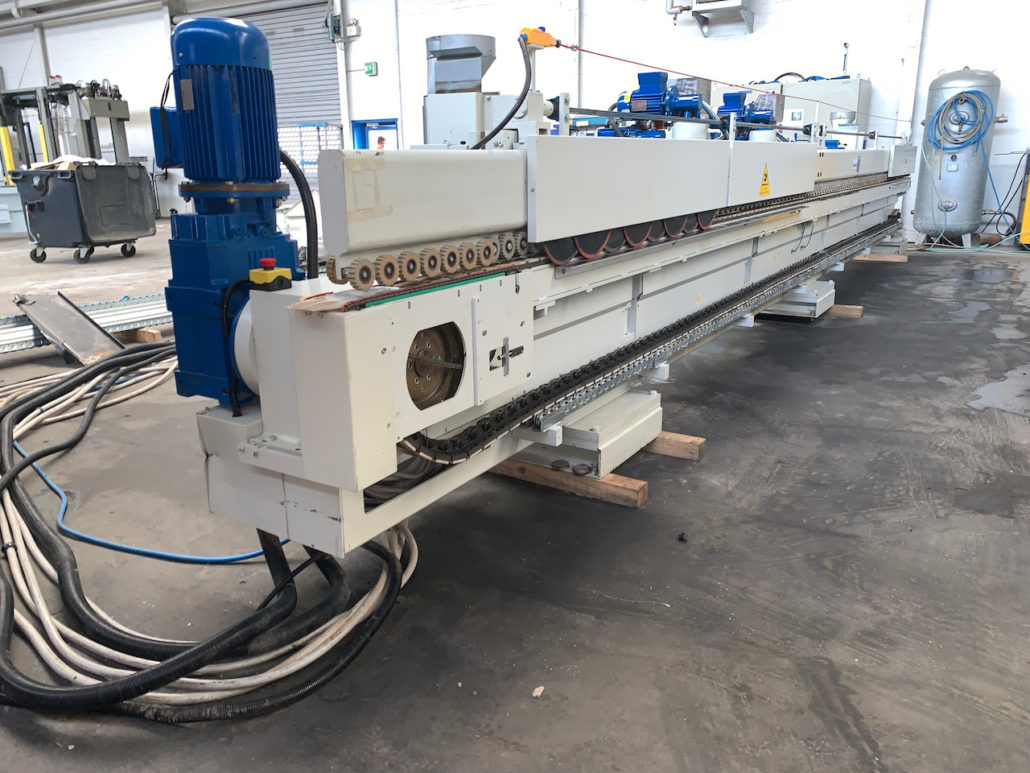

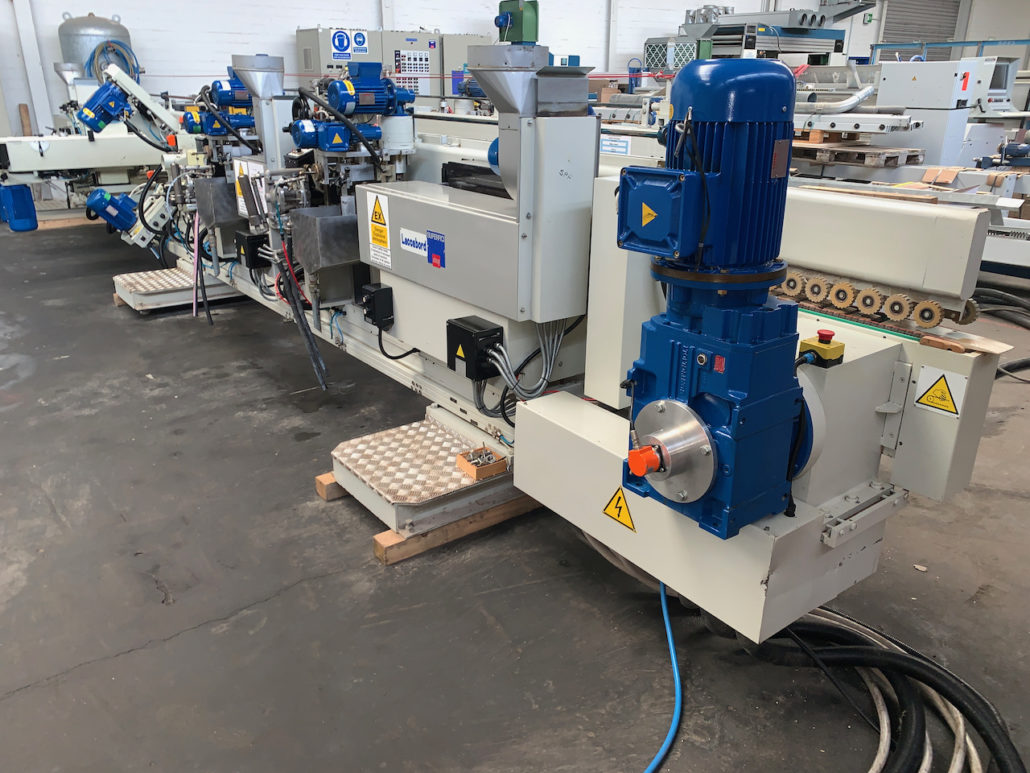

Conveyor motor 5,5 kW
Height from floor 1040+- 20 mm
Electrical box dimensions 2000 x 2200 x 800 mm
Total instaled power 37 kW
Operating voltage 400 V, AC, 50 Hz, 3 phases
(Subject to technical errors/modifications and prior sale)
