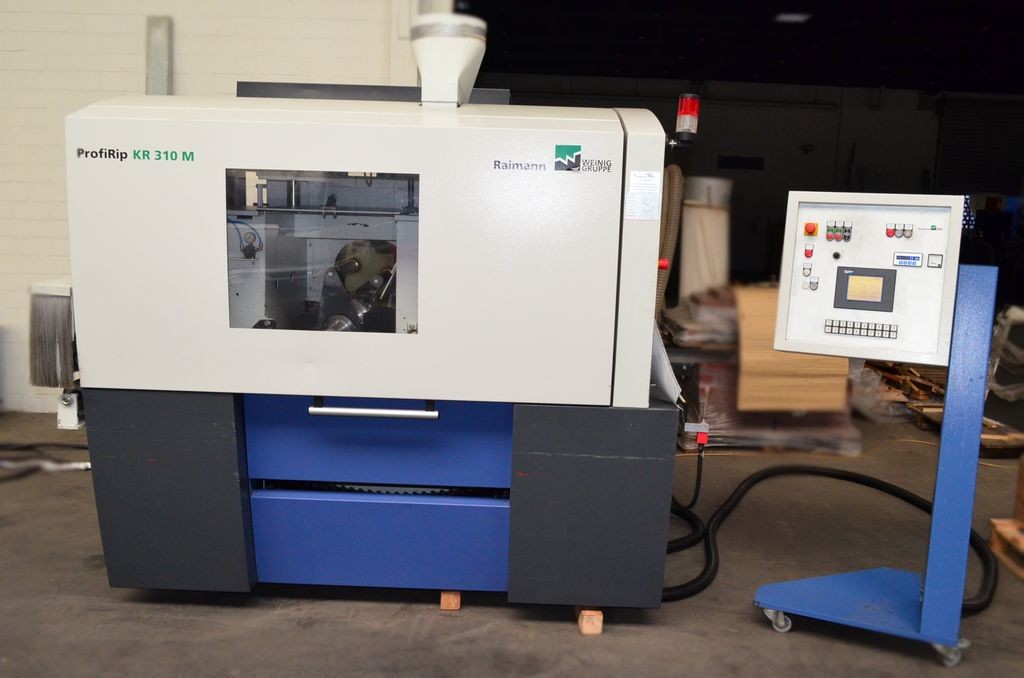

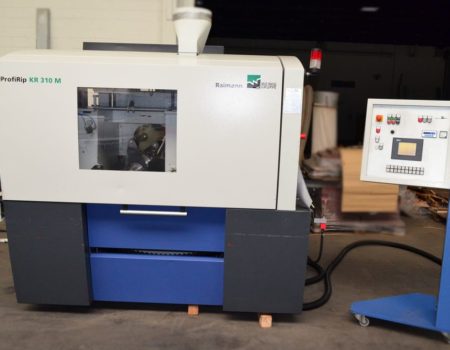

Description
|

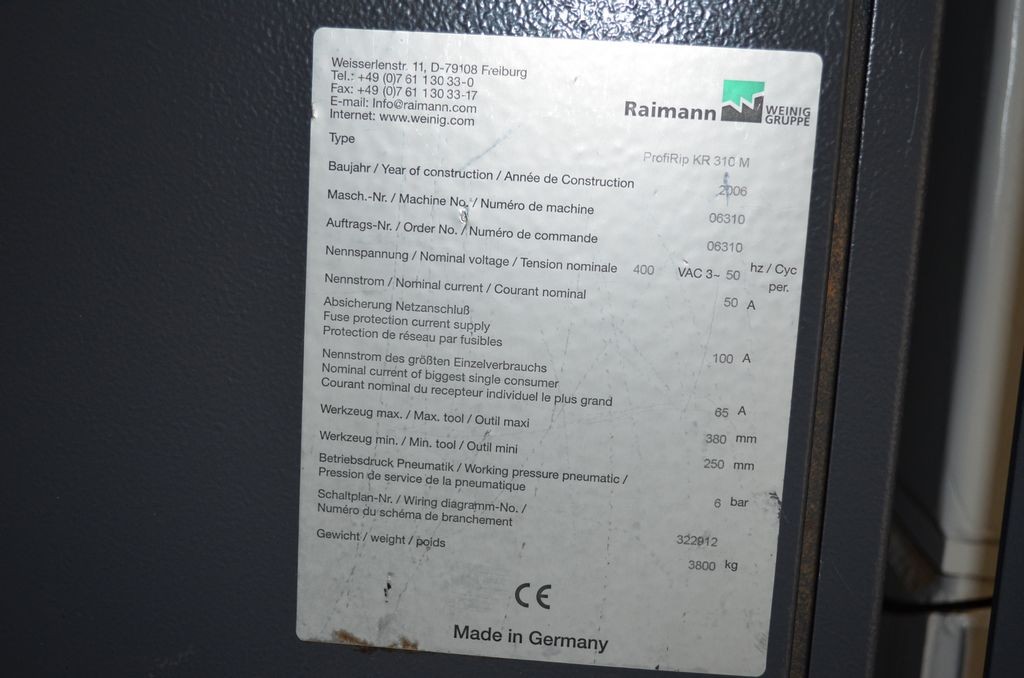

Machine No. |
6310 |
|
Track width |
340 mm (with spikes) |
|
Cutting width (usable) |
310 mm |
|
450 mm |
|
|
Total – passage width |
650 mm |
|

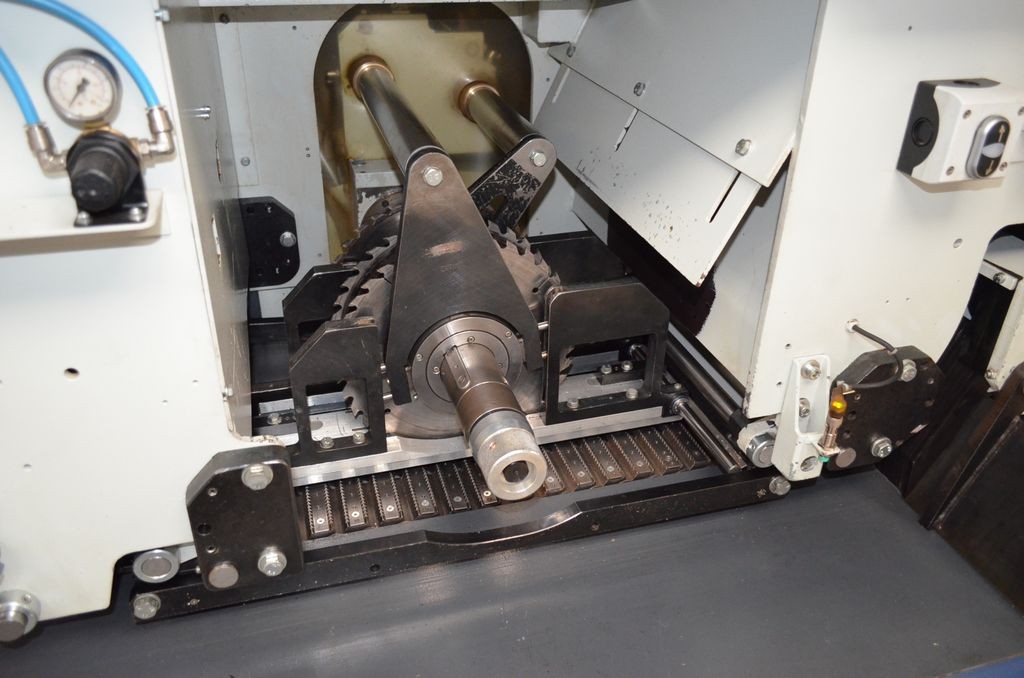

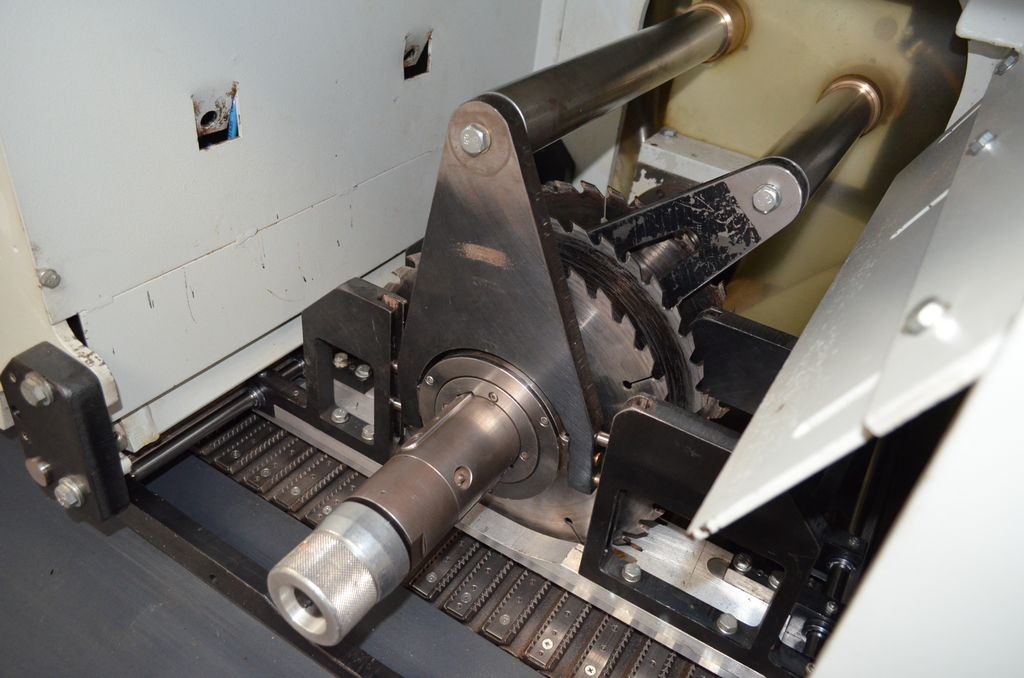

Number of movable saw blades |
2 |
|
Max. cutting height with bushing |
|
|
with pressure board |
115 mm |
|
without pressure board |
130 mm |
|
Max. cutting height with movable saw blades |
|
|
with pressure board |
100 mm |
|
without pressure board |
115 mm |
|
Saw blade bore |
80 mm |
|
Spindel – Diameter |
65 mm |
|
Electric height adjustment of the saw |
0,37 kW |
|

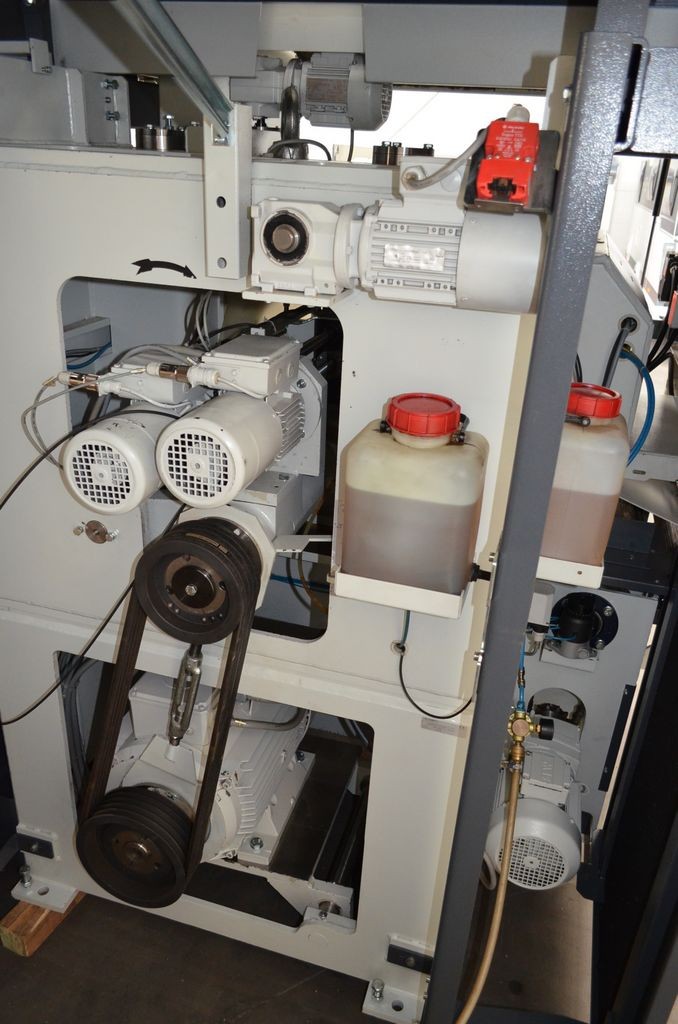

Main motor power |
37 kW |
|
Saw spindle speed |
3900 U/min |
|

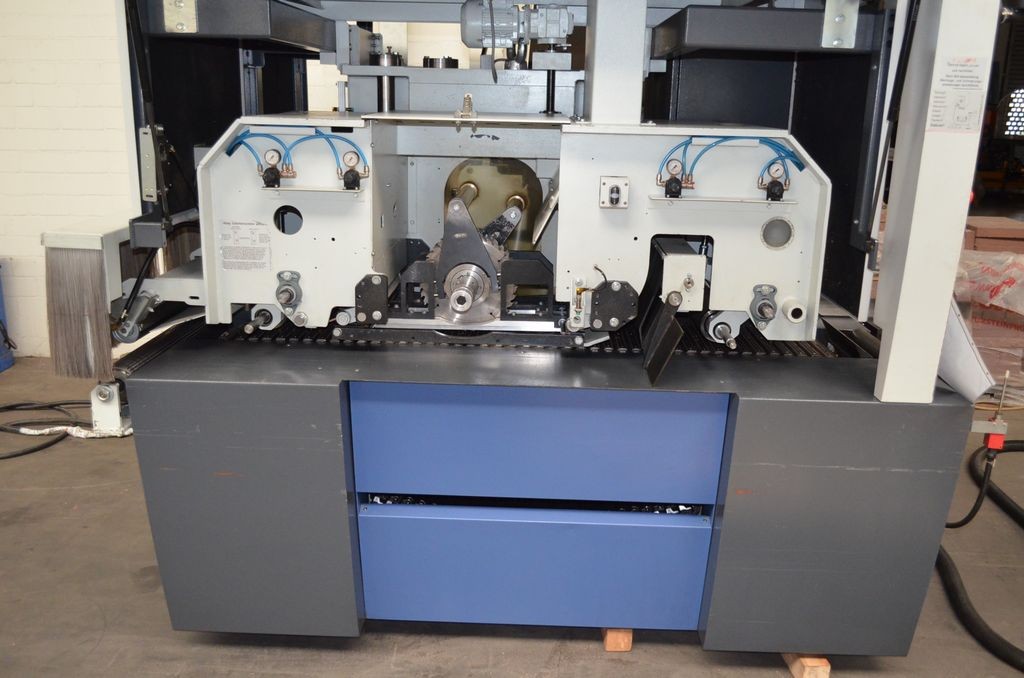

2 adjustable blades |
with moving pressure shoe system |
|
System Quickfix |
Hydro- Schnellspannung für die Sägeblätter |
|

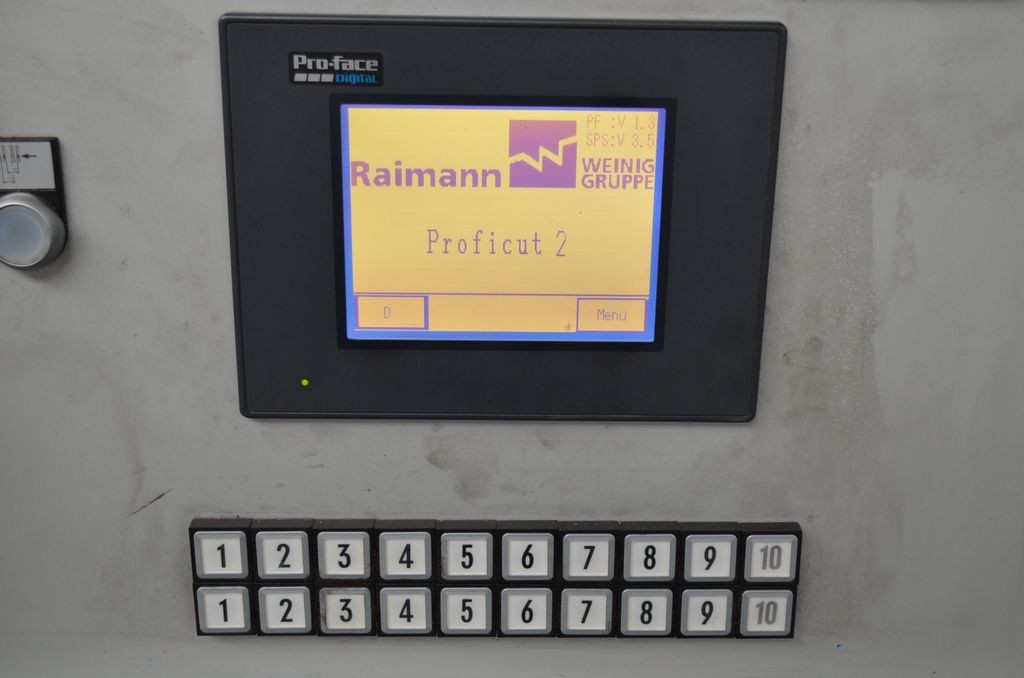

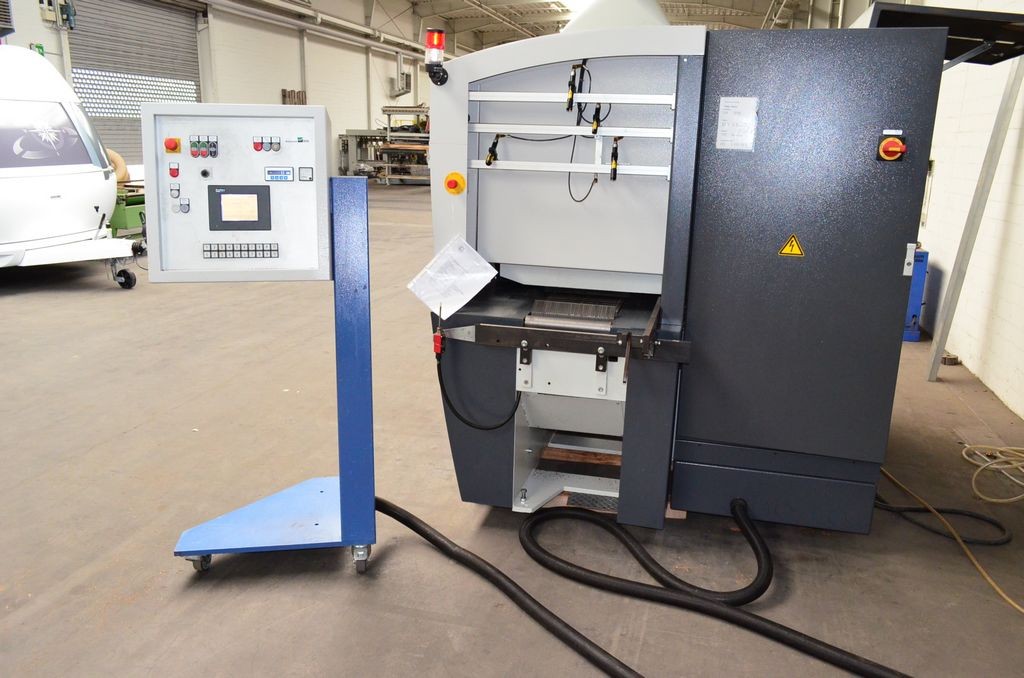

Control Proficut 2 |
for controlling 2 adjustable saws |
|
Positioning with gearmotor |
|
|

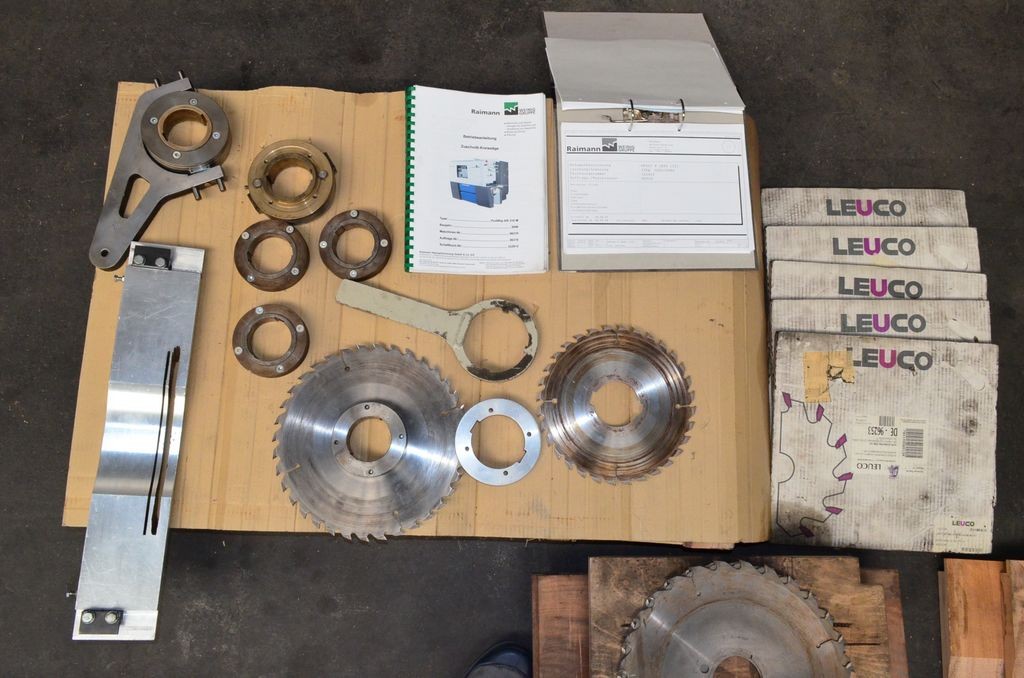

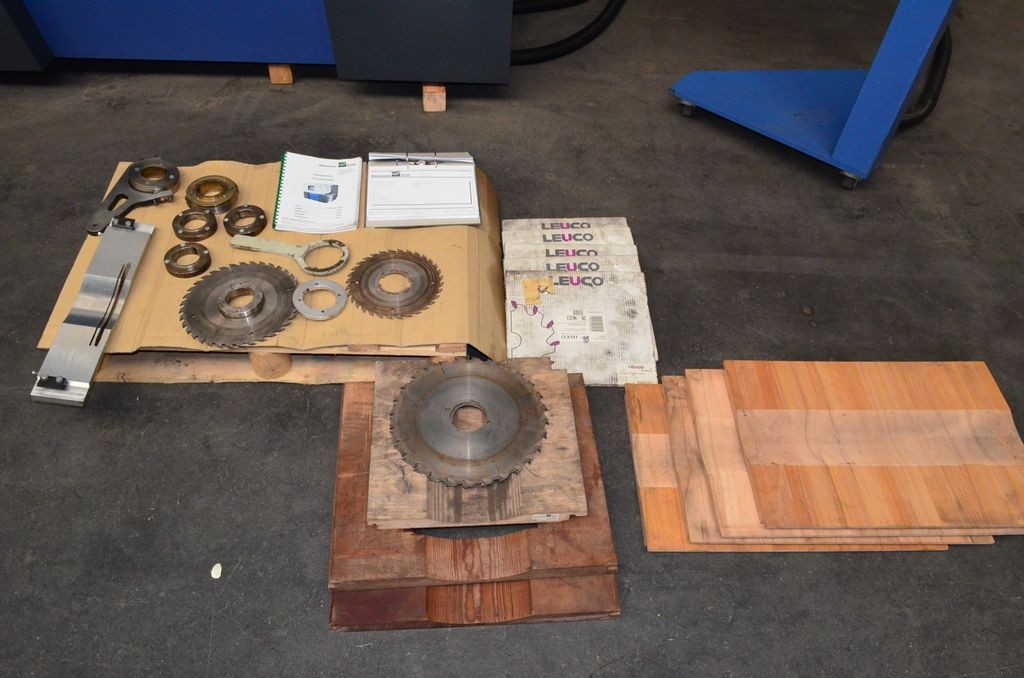

Saw blade diameter min./max. |
250/380 mm |
|

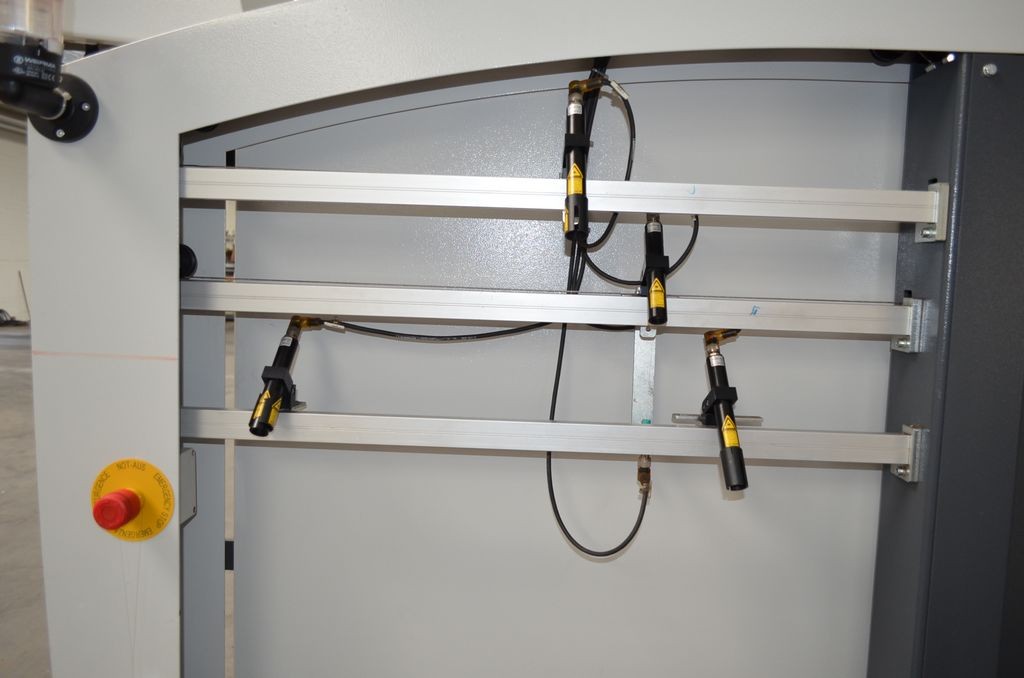

Laser – directional lights |
4 St. |
|
Operating push |
6 bar |
|
Infinitely variable feed rate |
8 – 48 m/min; |
|
Feed motor |
1,5 kW |
|
Nominal voltage |
400V/50 Hz |
|
Dimensions length x width x height |
2200x1900x2000 mm |
|
Weight |
3800 kg |
|
Location |
Lager, D-32683 Barntrup |
(Subject to errors, technical modifications and prior sale)
