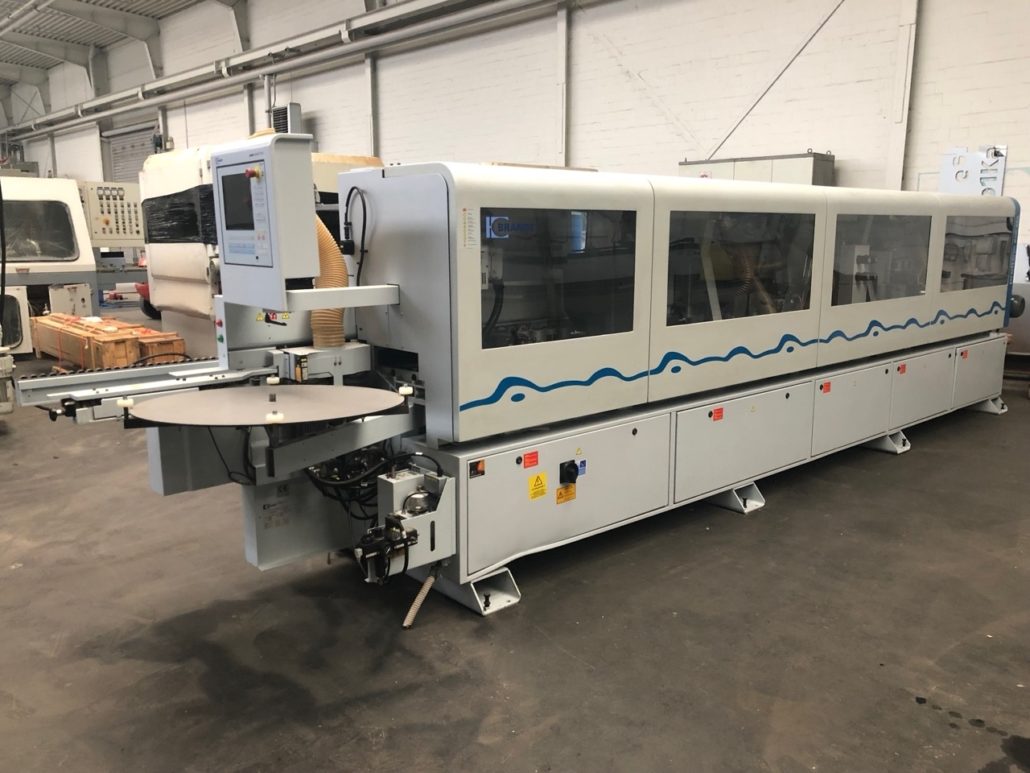

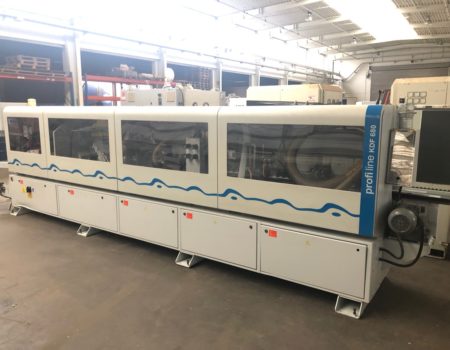

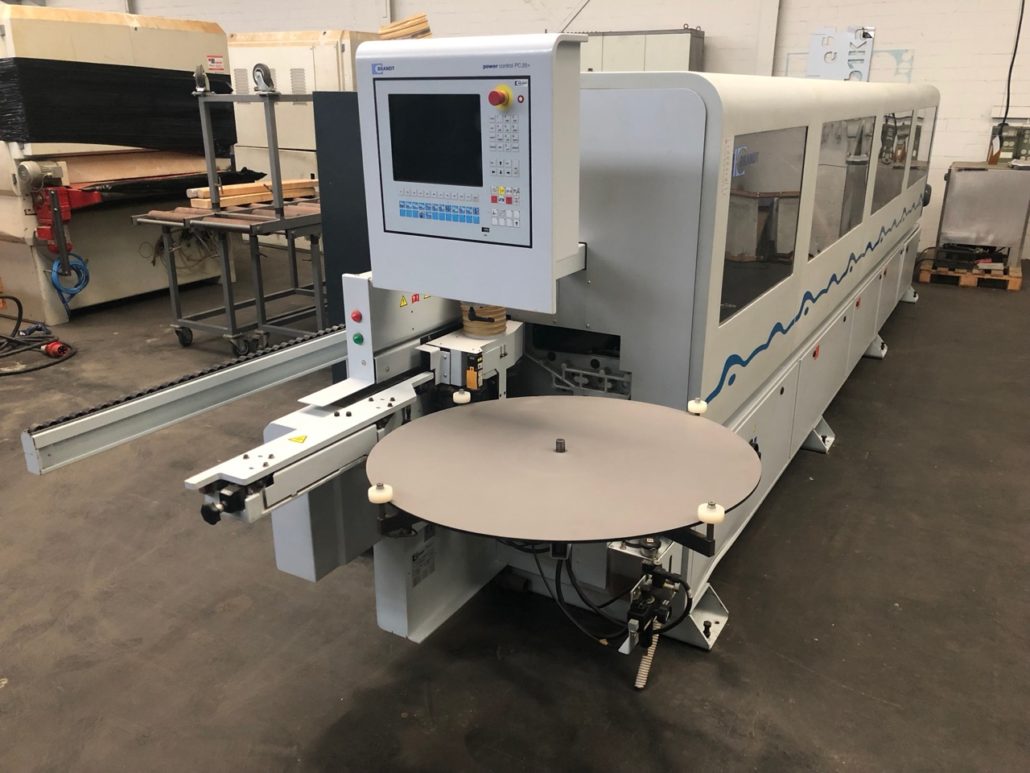

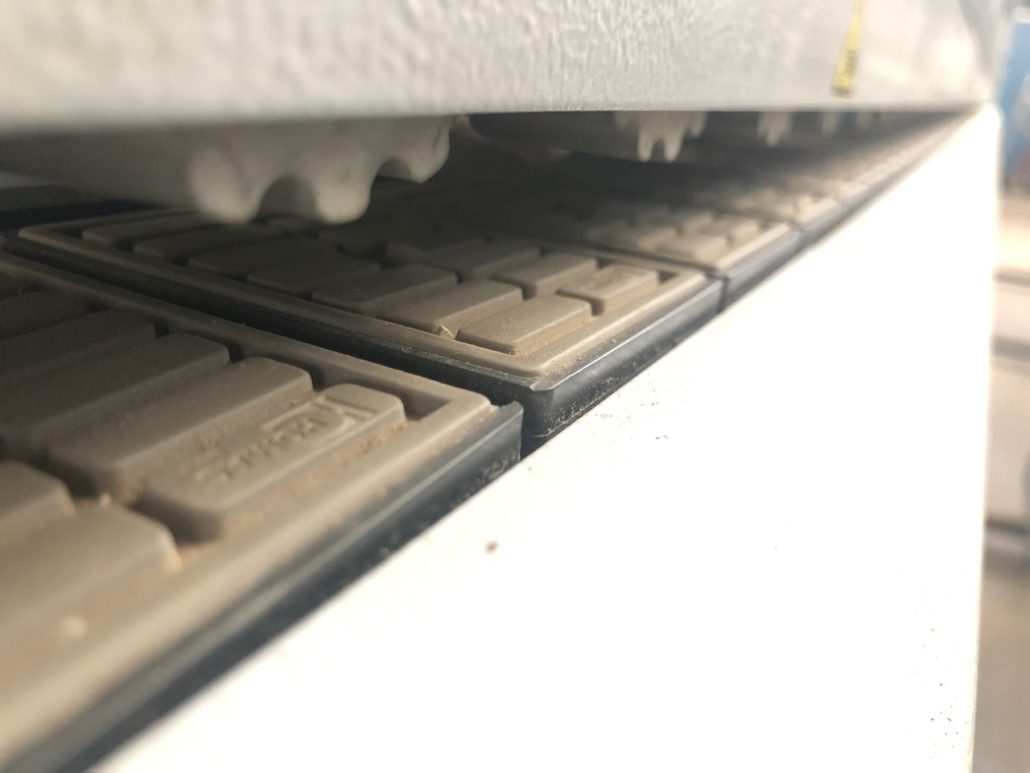

Edge banding machine Brandt Profiline KDF680

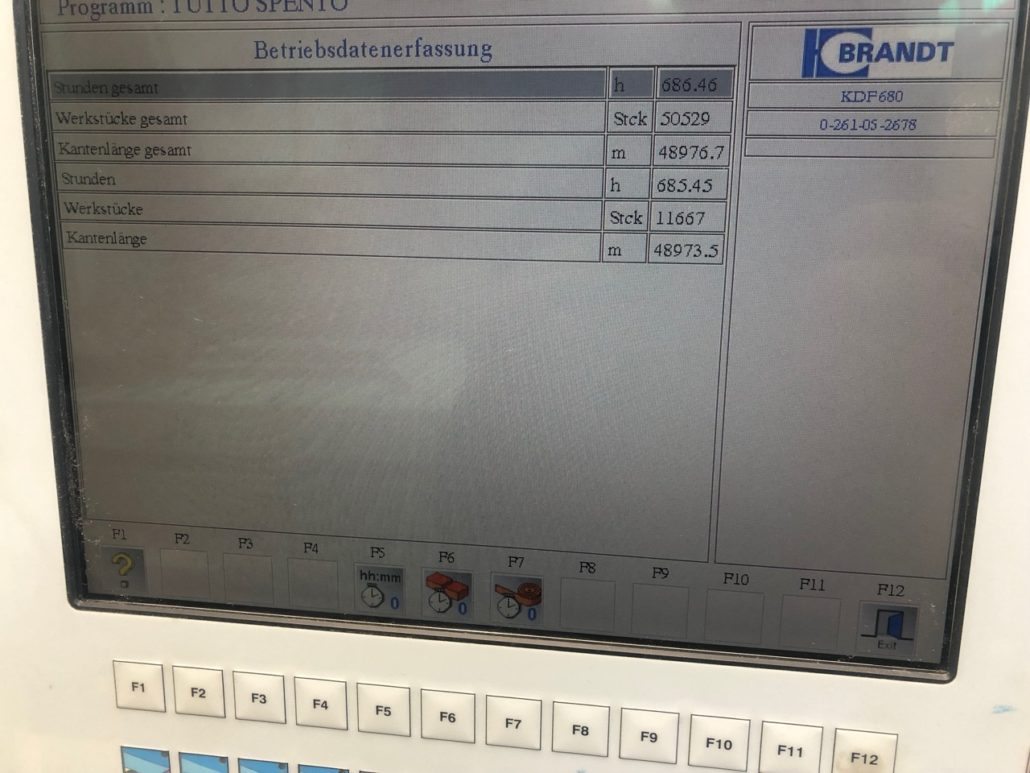

Operating hours

686 h

The machine has been running for 4 years. First commissioning in 2008.

Working height

950 mm

Edge thickness

0,4 – 20 mm (instead of 12mm)

Roll separation max.

3 x 45 mm

Workpiece thickness

8 – 60 mm

Or.

0,8 x 65 mm

Vorchub variable

8 – 16 m/min

Joint trimming unit

2 x 2.2 kW; 9000 rpm with 2 DIA – jointing heads 60mm

Equipment with reinforced pre-scissors

for thick PVC / ABS max. 3 x 45 mm

Workpiece preheating

for heating the edge of the workpiece before the glue is applied

Glue roller rotation either direct or reverse.

glue temperature monitoring by means of electronic thermostat. Automatic glue temperature reduction during work interruptions.

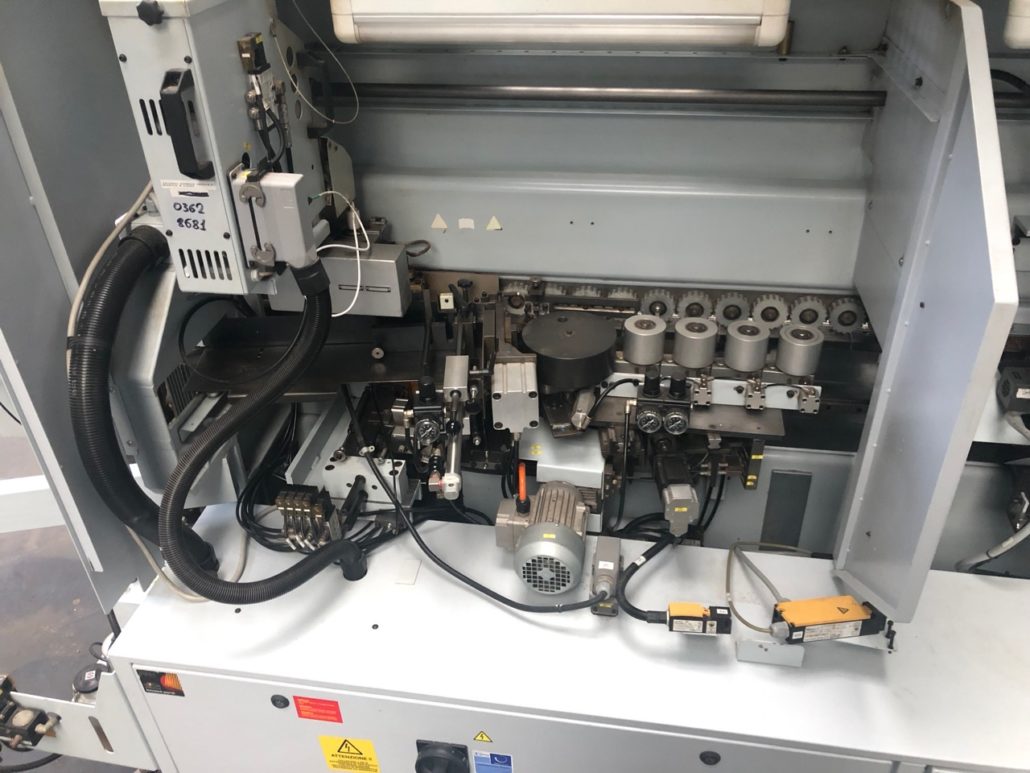

Glue – application unit QA 34

application unit A34 with

quickmelt melting unit instead of

standard order unit or Quickmelt

order unit (VKNR 2035).

Infrared melt adhesive activation.

Magazine 1 roll

automatic edge magazine for rolls and fixed lengths, incl. rolling plate diam. 800 mm.

Pressure zone edge thickness up to 20mm

1 main driven pressure roller as well

4 freewheeling pressure rollers

Program adjustment of the pressure zone

includes motorized one-axis adjustment of the print zone to edge thickness.

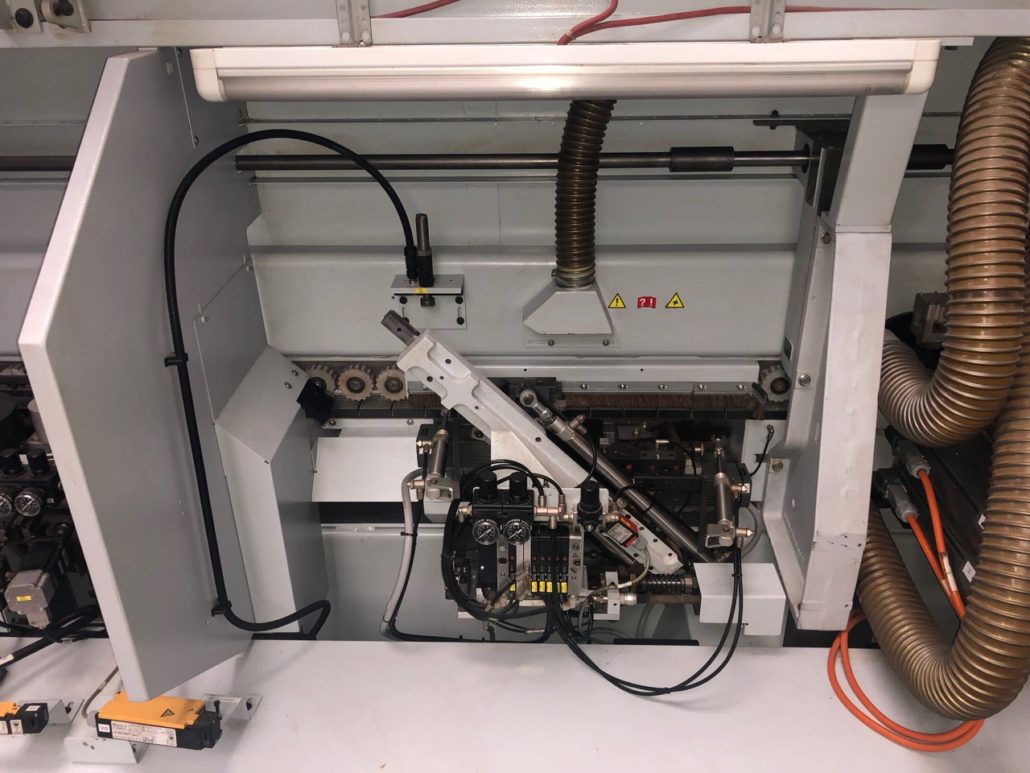

Cutting units HL6140

2 x 0,8 kW; 200 Hz; 12000 Upm

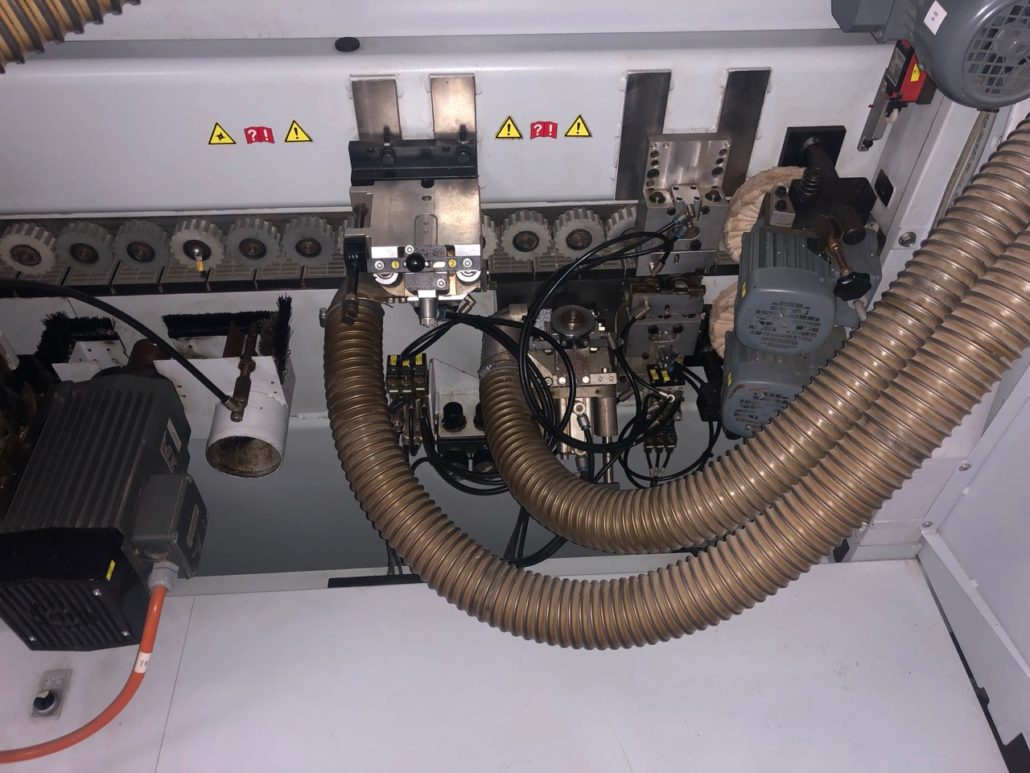

Pre-milling unit VF6200

2 x 1,85 kW; 200 Hz; 12000 Upm

Milling unit BF6245

2 x 0,55 kW

Form milling unit FF6220

2 x 0,35 kW; 200 Hz; 12000 Upm

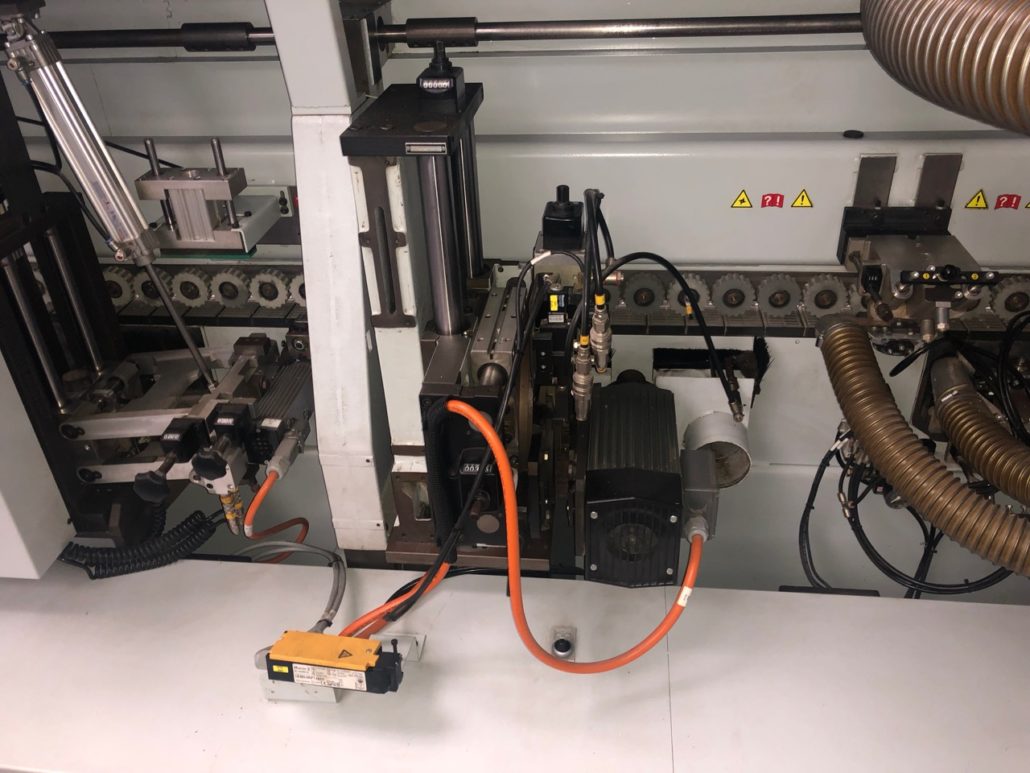

Universal trimming

swiveling 0 – 90 degrees. 1 motor 4.0 kW, 150 Hz, 9,000 1 / min.

Scraper ZK6510

with 2 quick-change heads for easy radius change, with 2 WPL profile knives.

Surface scraper glue joint ZF6600

equipped with 2 WPL reversible knives.

Buffing

2 motors per 0.18 kW,

Control

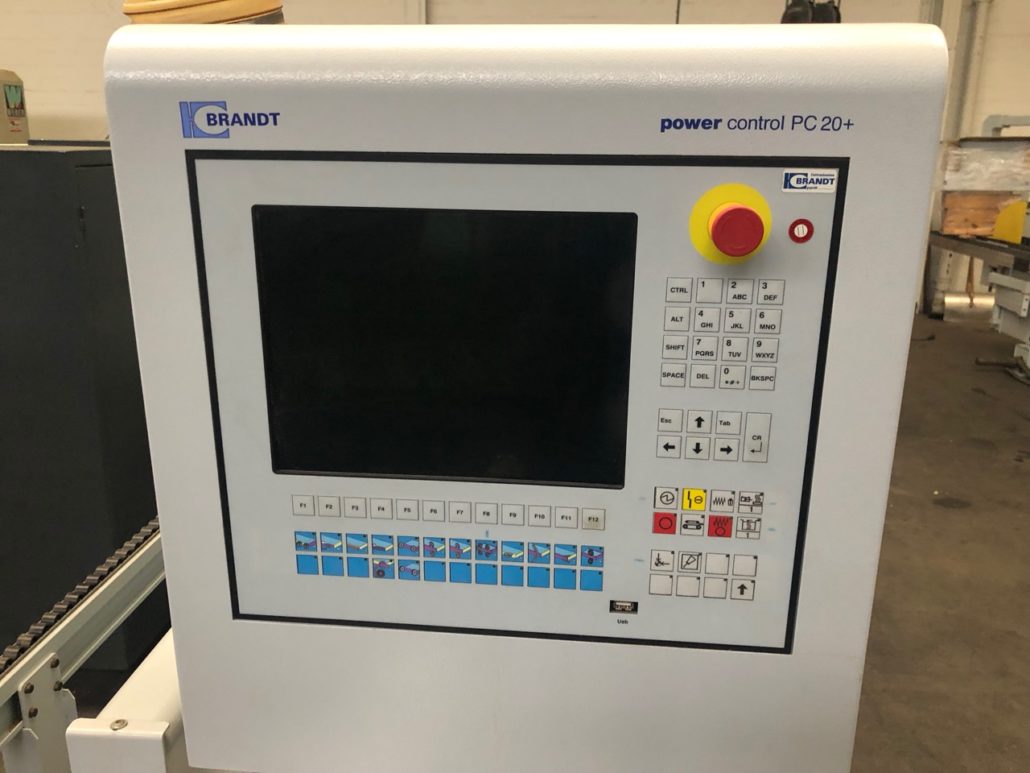

power control PC 20+

Machine dimensions:

7260 x 1555 x 1768 mm

Mass

about 3560 kg

Power consumption

22,4 kW

Location

D-32683 Barntrup Germany

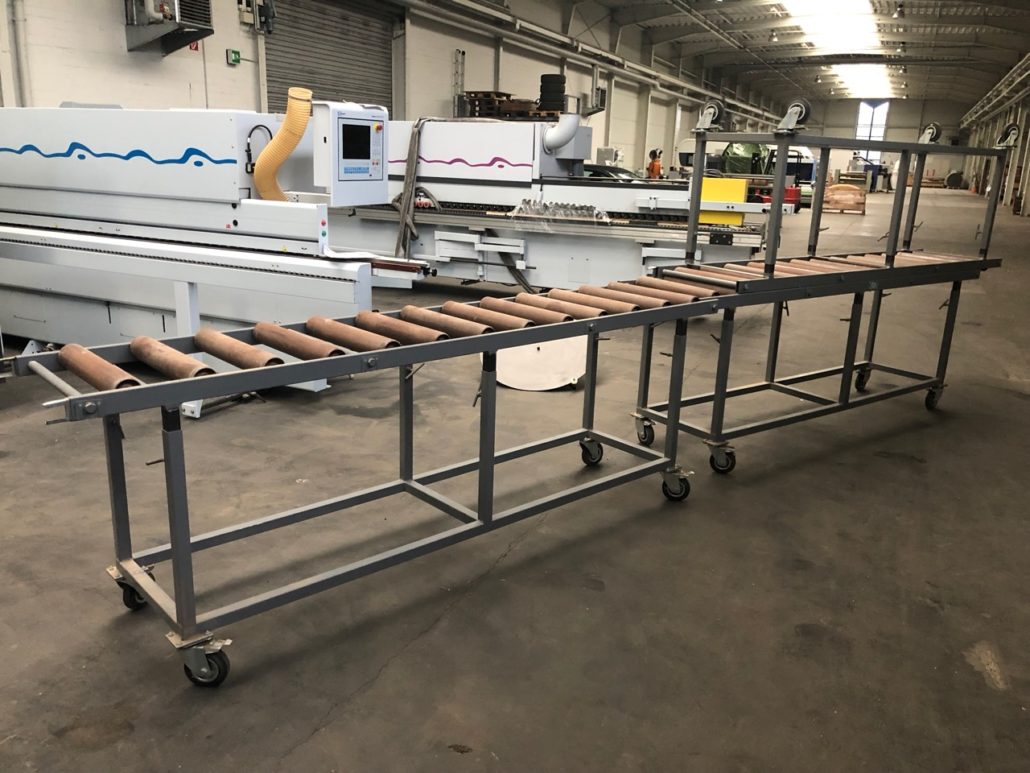

Return rolls

3 pieces total length approx. 7000 mm
