Description

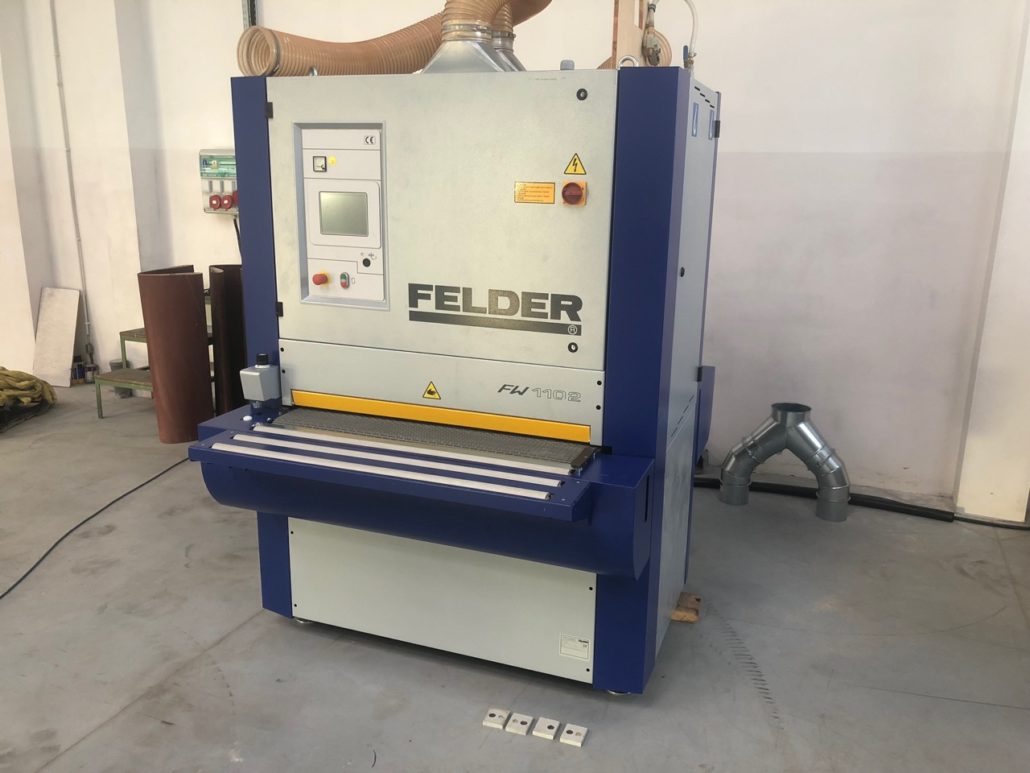

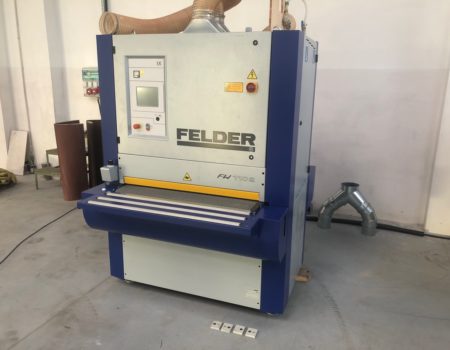

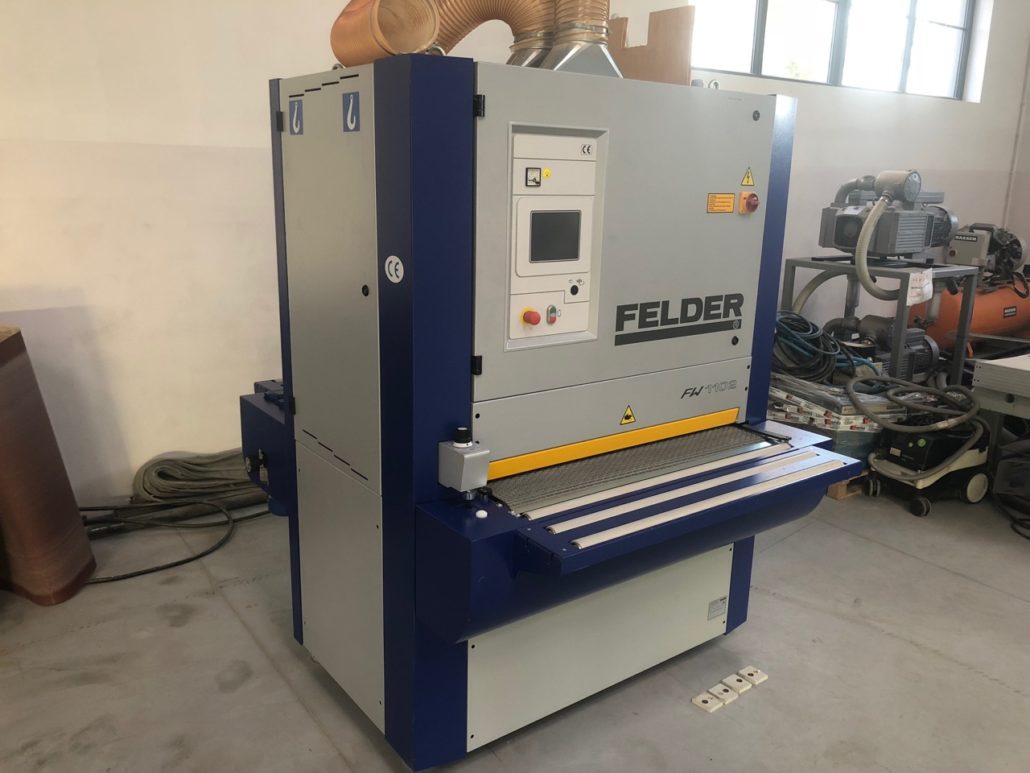

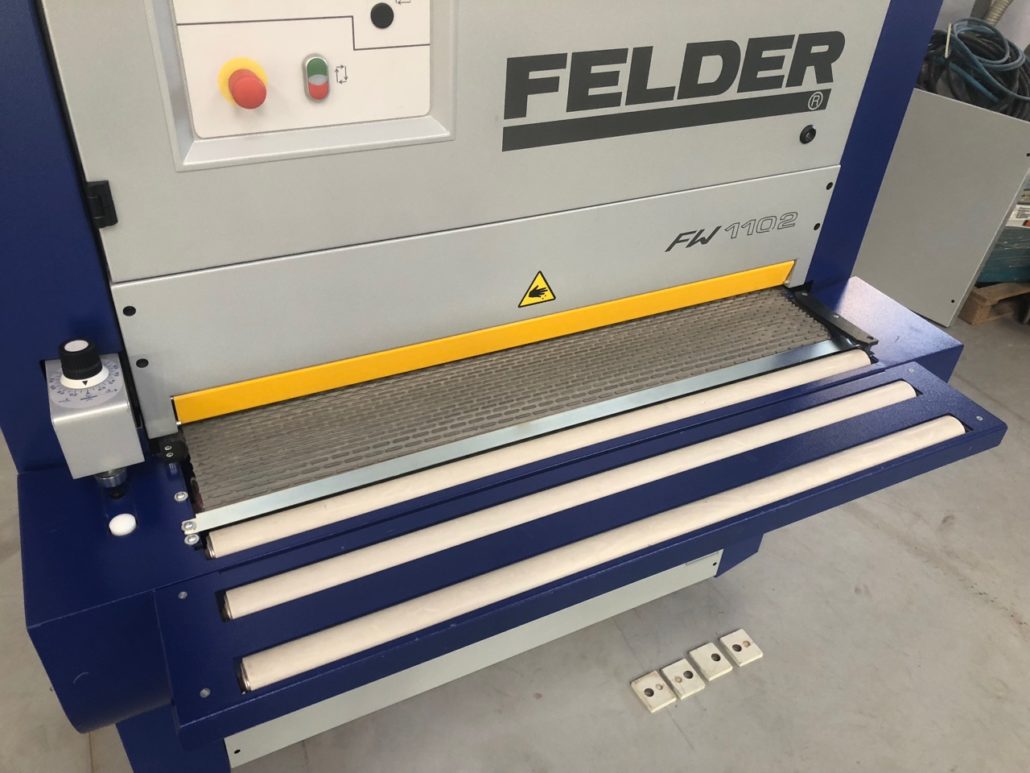

Special equipment with touch screen terminal for the electronic machine control and with an electropneumatic sectional pressure bar.
The machine is in absolute top condition (was very little used)
Grinding width 1100 mm
Workpiece thickness (grinding height) 3 – 170 mm
Execution:
1. Contact roller – rubber version (spiral grooved roller) – 85 Shore – for accurate calibration. Common drive motor 15 kW with Combi-Aggregate.

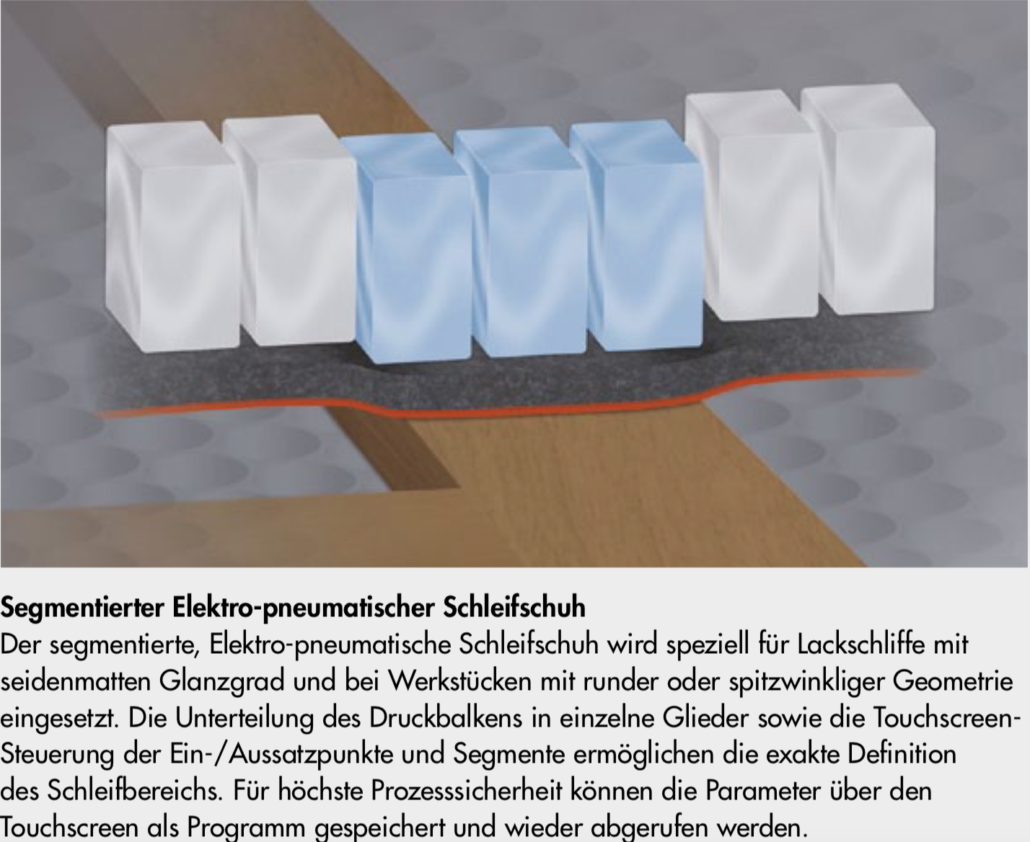

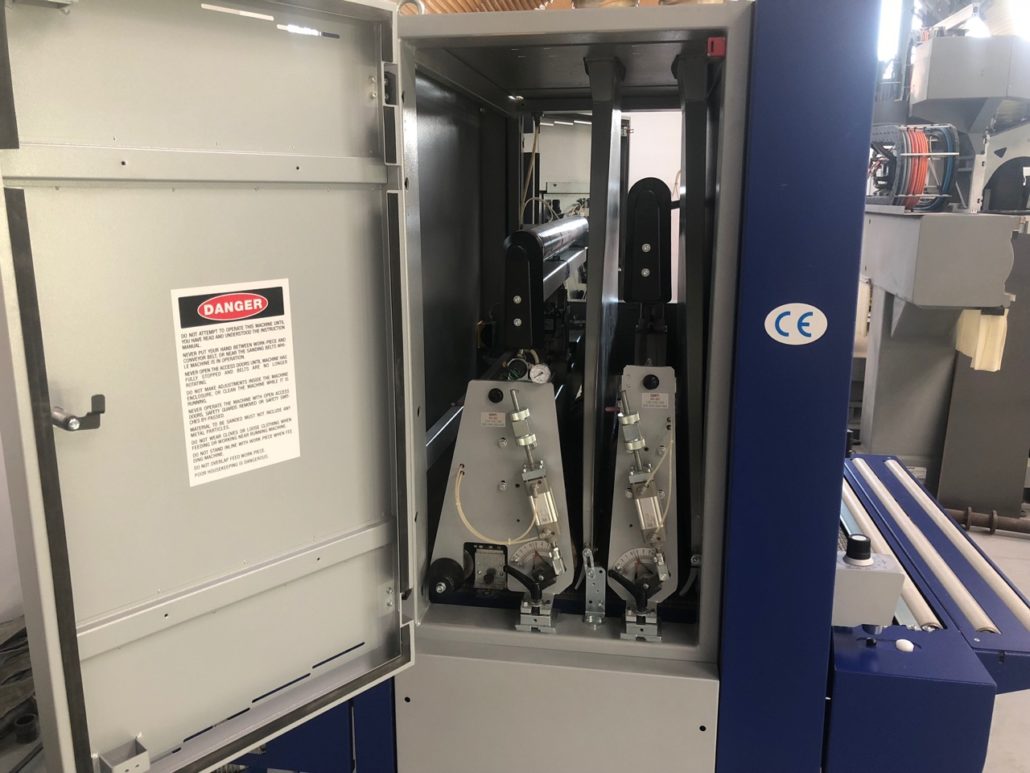

2. The versatile combi unit with contact roller and segmented electro-pneumatic grinding shoe.

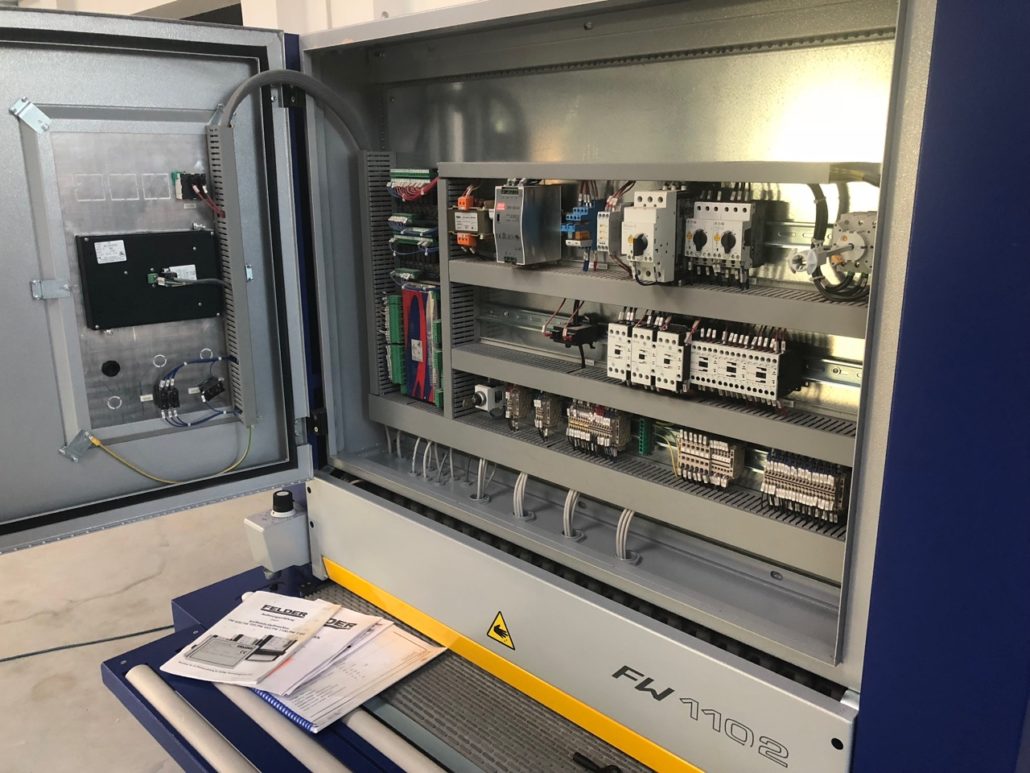

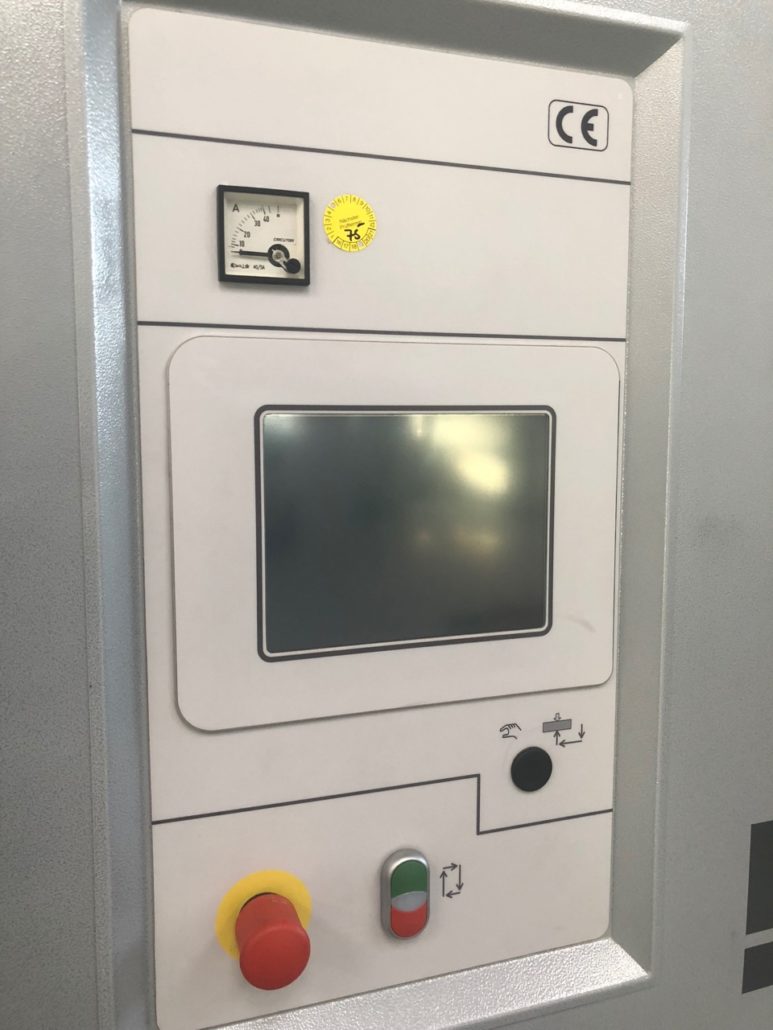

– Touchscreen control panel
– In and out roller table Removable roller table extension 300 mm
– Soft start, automatic star-delta start
– Switching on and off of the first and second contact roller from the control panel
– feed rate 3,7 – 16 m / min infinitely adjustable

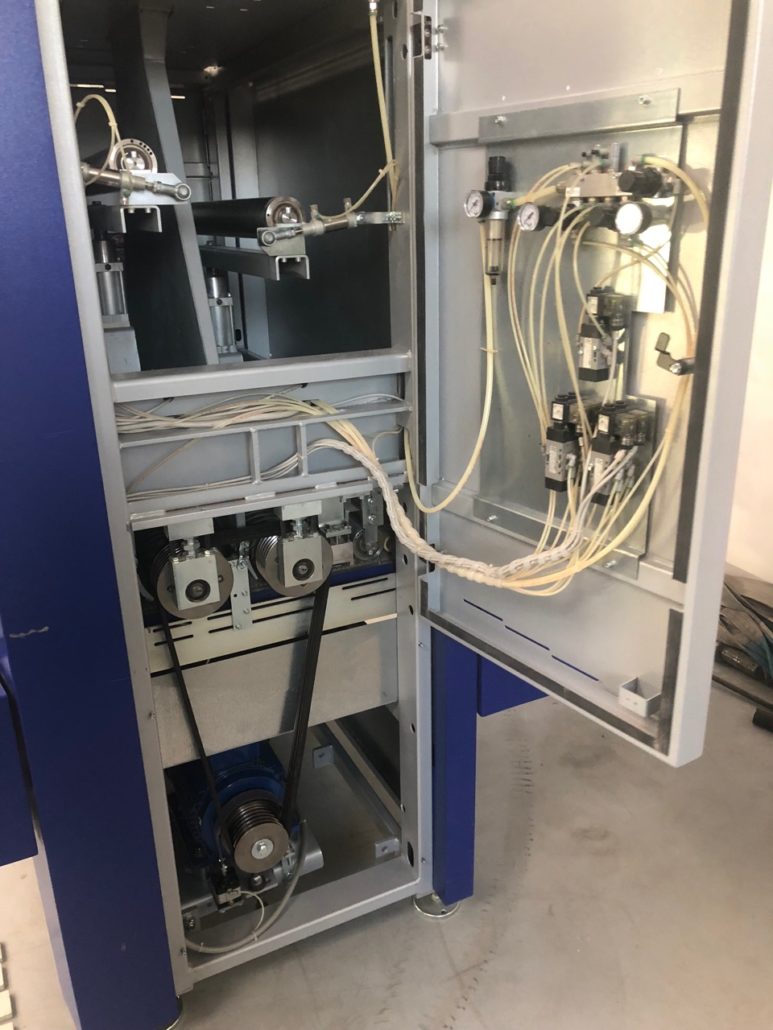

– Sanding belt drive for both units 15 kW
– Sampling device for workpiece thickness
– Working height 780 – 878 mm

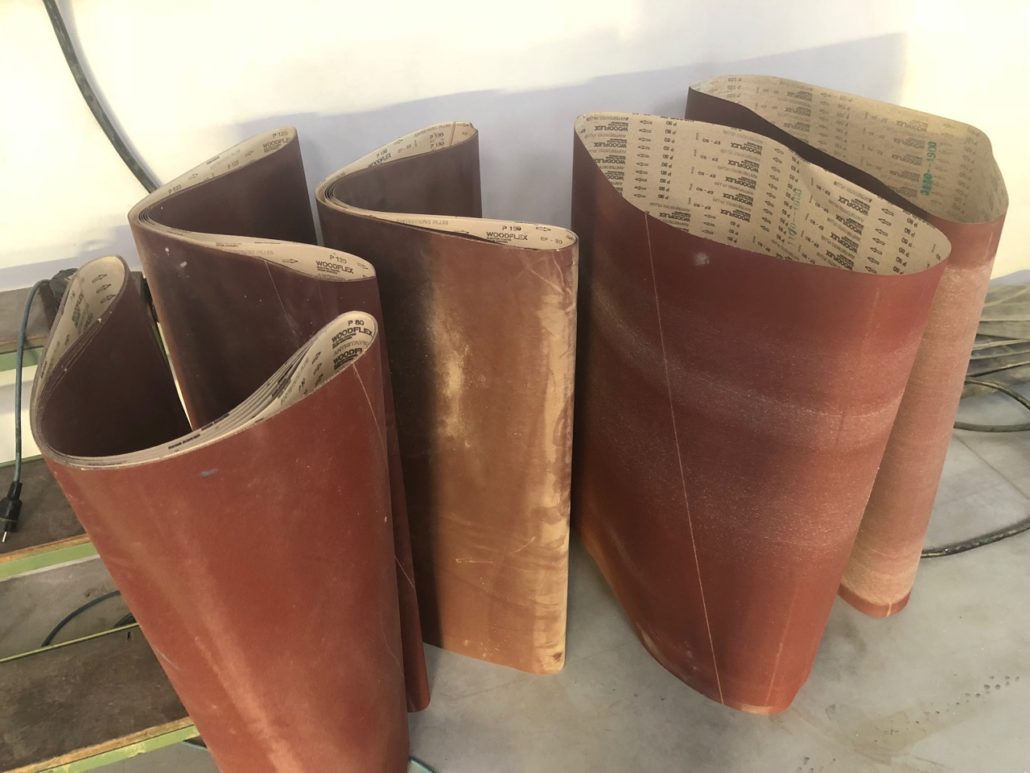

– Abrasive belt dimension 1110 x 1900 mm
– Operating voltage 400 V / 34A / 50Hz
– Connection compressed air 6-8 bar
– Weight about 1500 kg
– Suitable for: Calibrating with the contact roller. Fine sanding on veneered workpieces or solid wood (also for high-quality lacquer sanding)

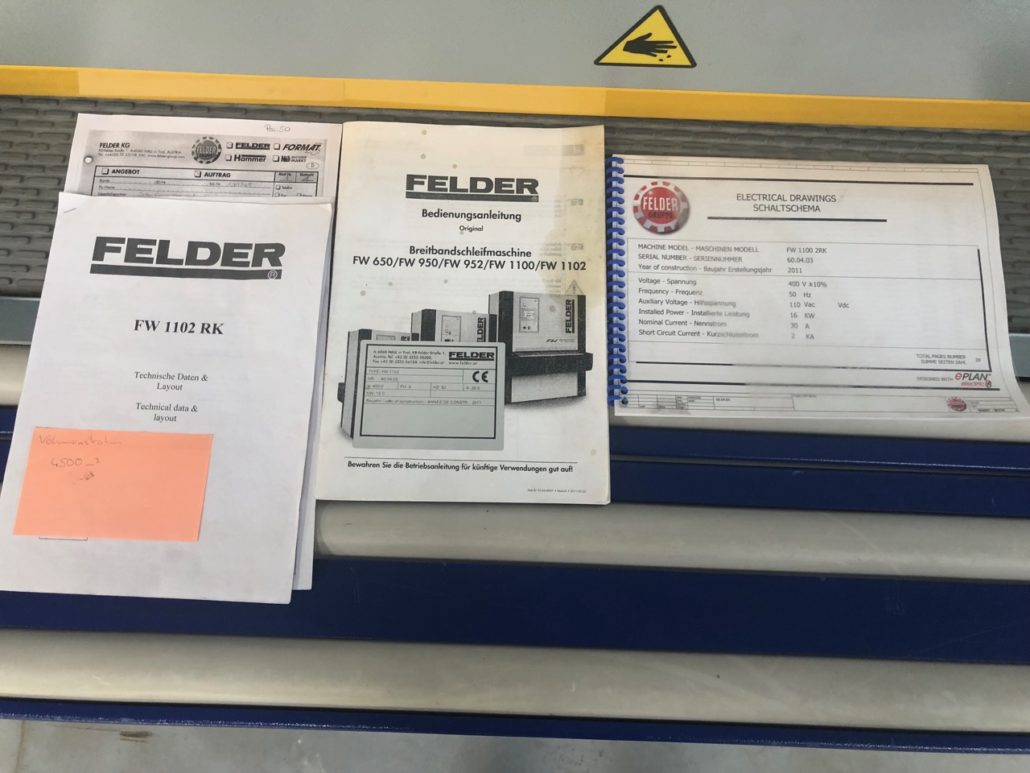

– Instruction Manual
– Location Gdansk / Poland
