Description
|

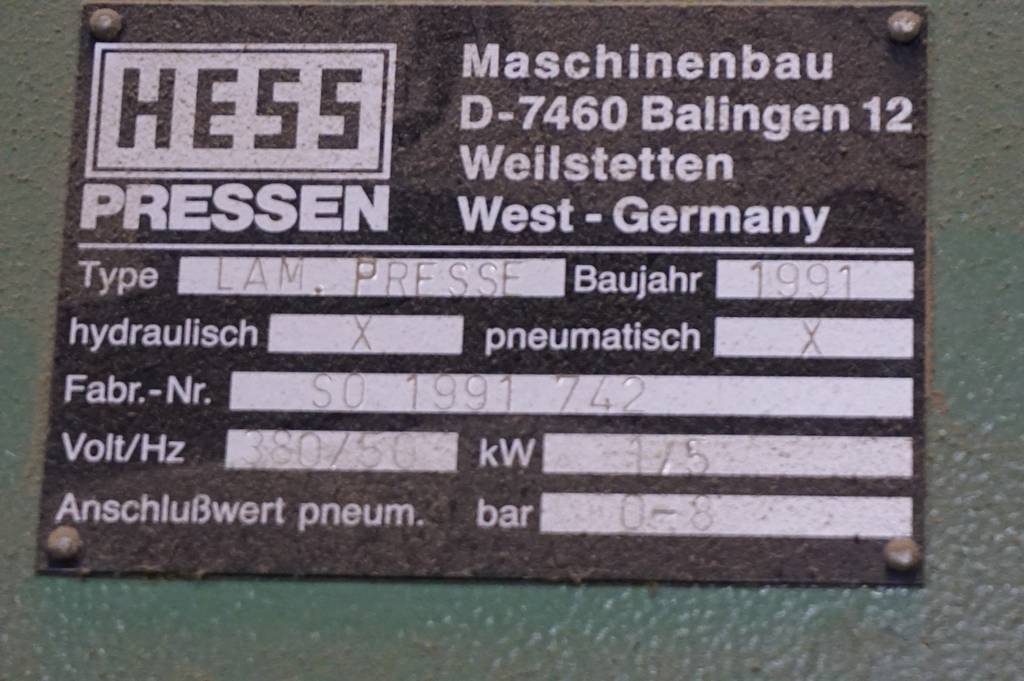

Machine no .: |
SO 1991 742 |
|

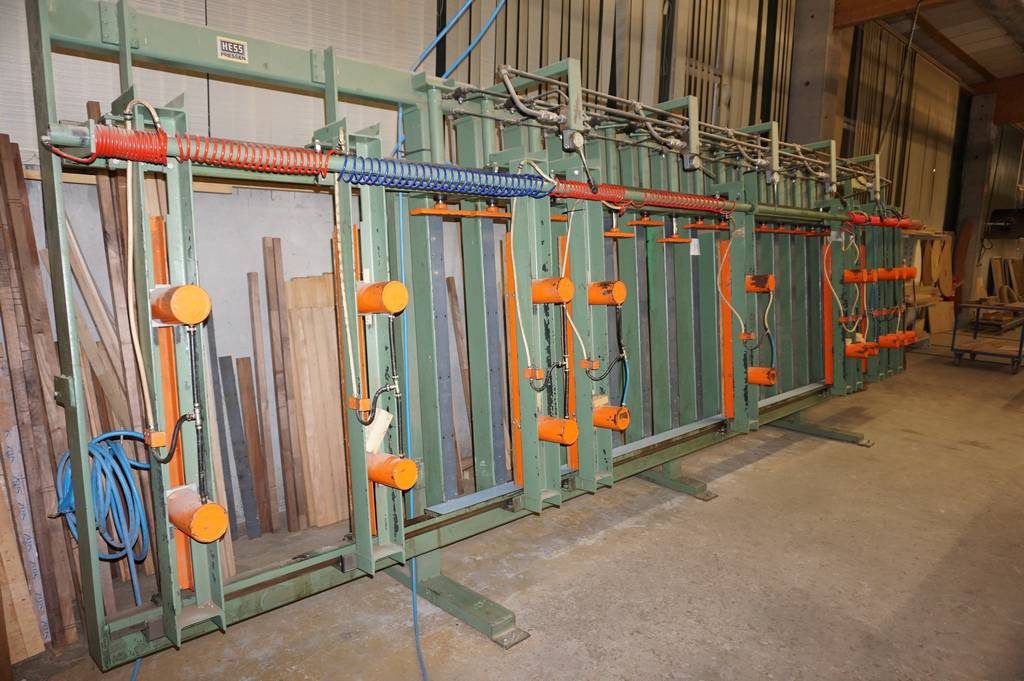

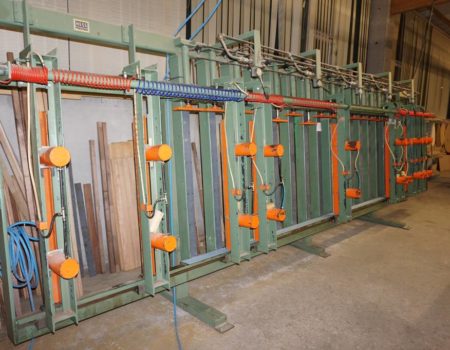

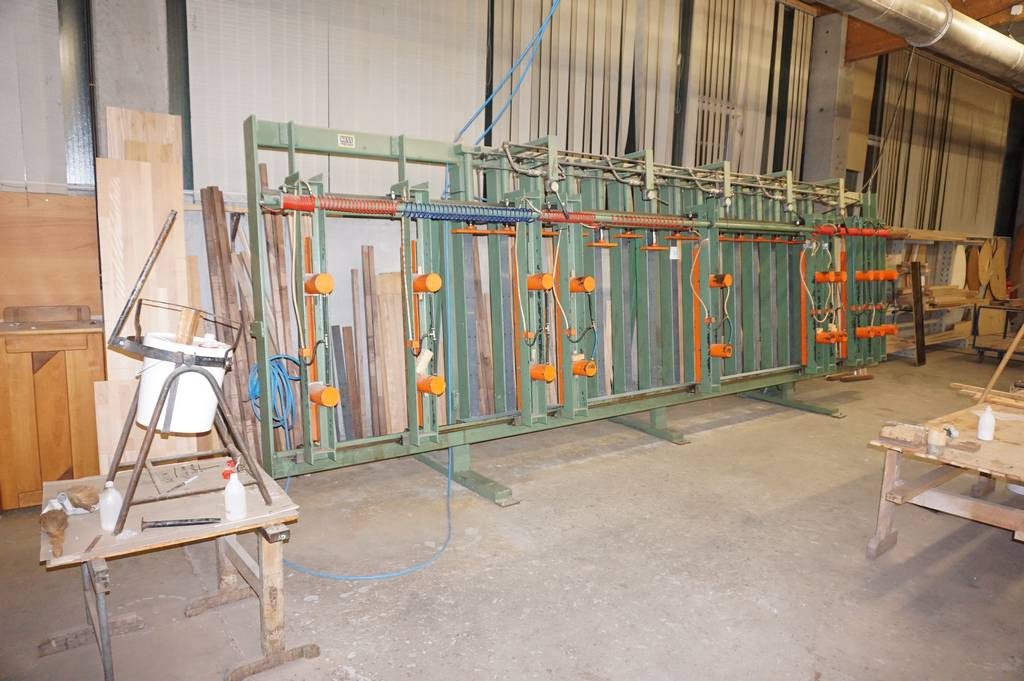

Electrohydraulic press |
for gluing solid wood or beams |
|
Working length |
max 4500 mm |
|
Working height max |
max 1250 mm |
|
Material thickness max |
max 120 mm |
|

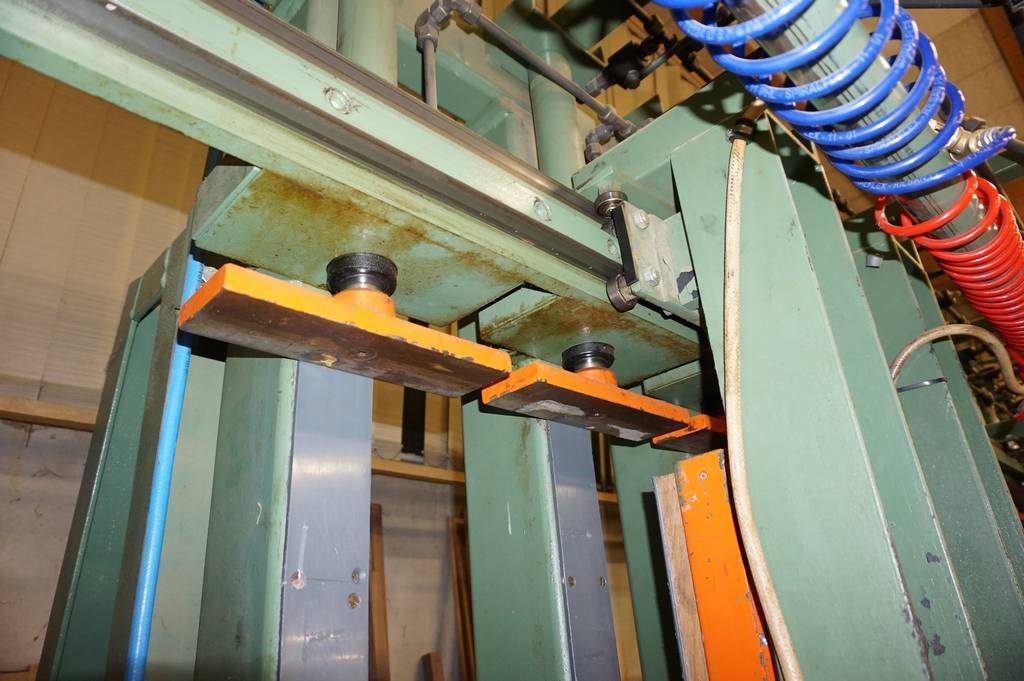

Hydraulic cylinder with pendulum plates |
15 pcs. |
|
Pneumatic holding down device, each with two cylinders and ball bearing guide |
10 pcs. |
|
Hydraulic aggregate |
1,75 kW |
|
Connection value pneum. |
0 – 8bar |
|
Power consumption |
380V, 50Hz |
|
|
|
(Changes and errors in the technical data subject to prior sale)
