Description
| Position 1096_1 | |

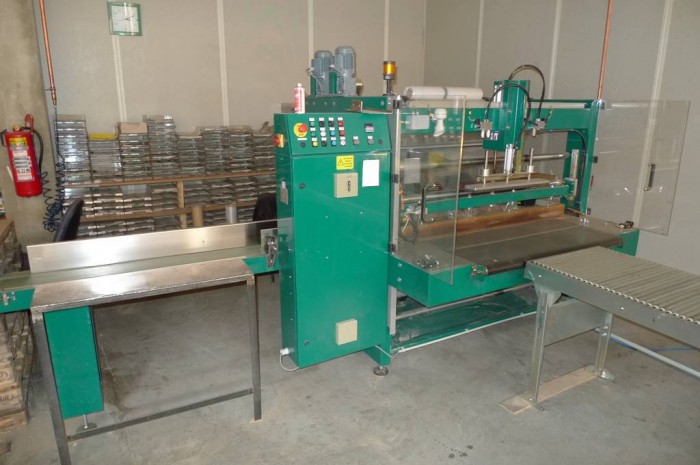

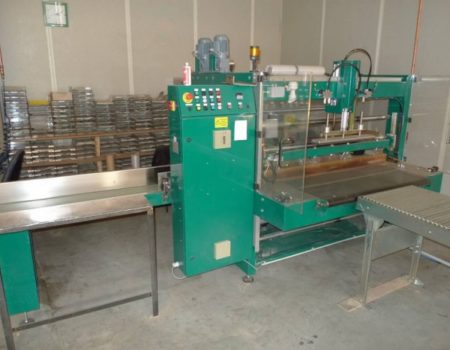

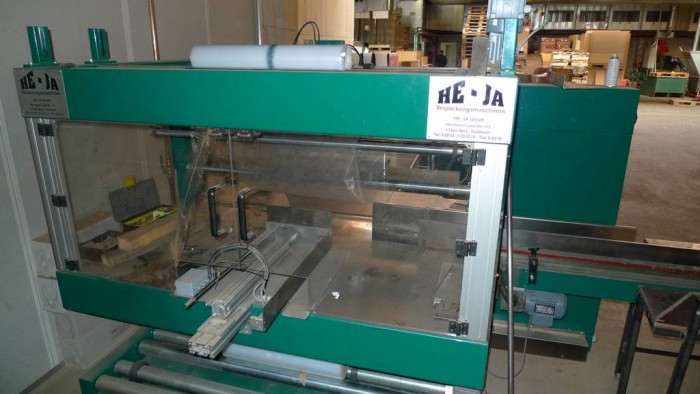

| Bundle packing machine for packing bands in thermoplastic PE plastics | |

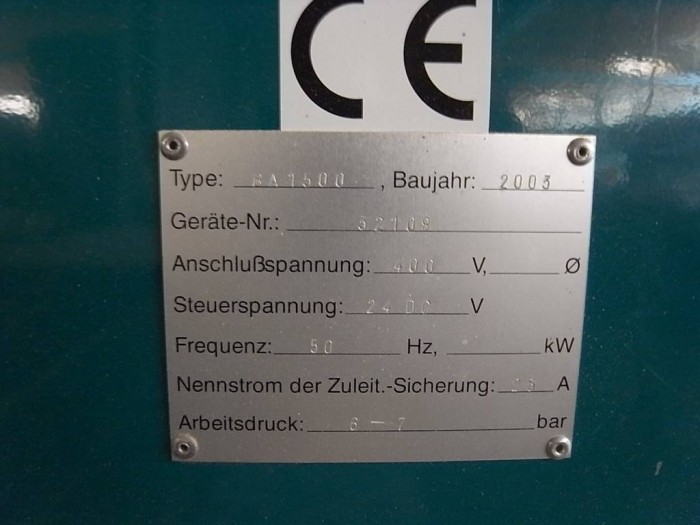

| Type | BA 1500 |
| Machine-No. | 32108 |
| Passage width | 1500 mm |
| Passage height | 250 mm |
| Film width | 1470 mm |
| Film rolls diameter | max 300 mm |
| compressed air | 6 bar |
| control Siemens, | Type: S7 |
| Position. 1096_2 | |

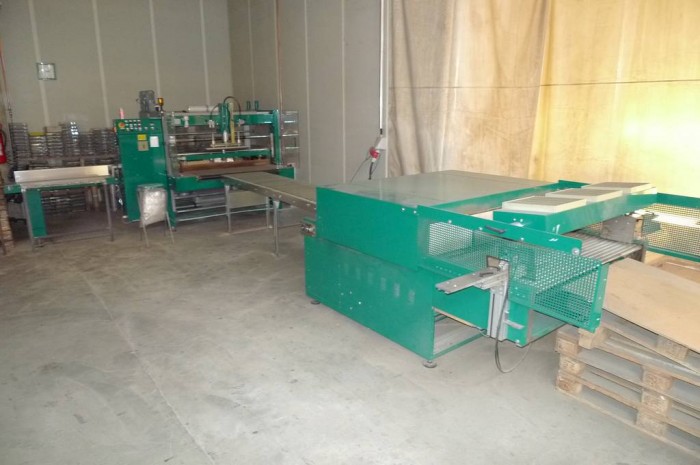

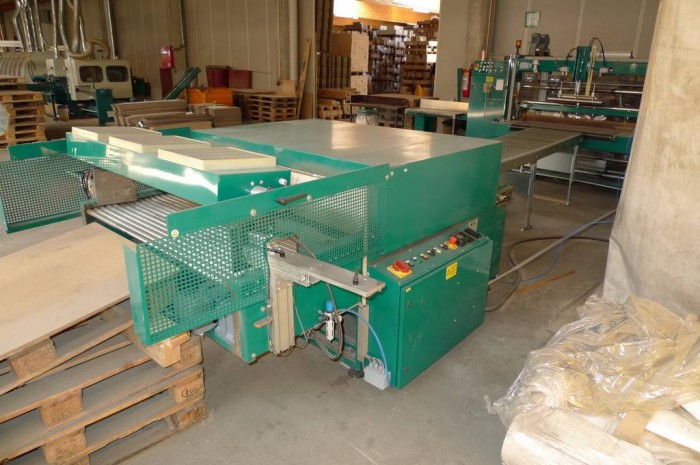

| Shrink tunnel, Type | T 1500 AK |
| for the processing of thermoplastic PE and PP shrink film | |
| Maschine-No. | 32107 |
| Passage width | 1500 mm |
| Passage height | 250 mm |
| Length of the heated tunnel hood | 1200 mm |
| Film width | 1470 mm |
| Film rolls diameter | max 300 mm |
| compressed air | 6 bar |
| control | Siemens Type: S7 |
| Blower | 2 piece je 19 cbm/min |
| Heating capacity | 30 kW |
