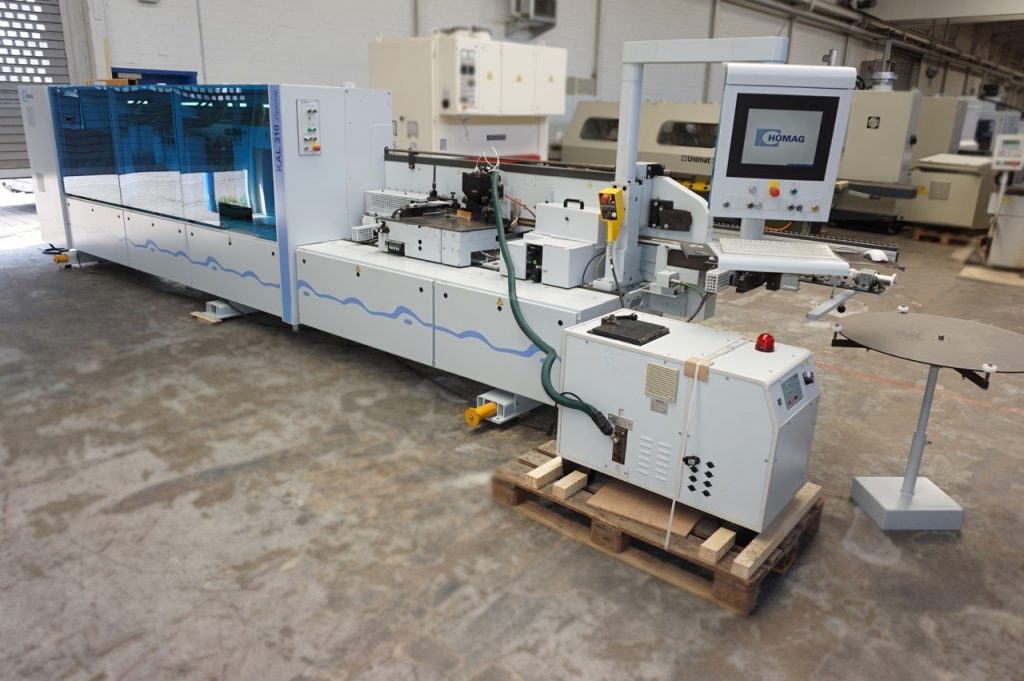

Description
suitable for PVC, veneer and sensitive edge (e.g., aluminum edge).
with melting pot ROBATECH for PUR Hot – Melt.
Operating time Total (h) | 14242 |
Machining time Total (h) | 615 |
Total running distance (m) | 282965 |
Machine no. | 0-200-19-2499 |
Working height | 950 mm |
Working dimensions |
|
Workpiece thickness | 12 – 60 mm |
Working width is minimal |
|
With a thickness of 22 mm | min. 55 mm |
With thickness of 60 mm | min. 100 mm |
Workpiece overhang | 30 mm |
Workpiece length | min. 300 mm |
Edge material strip max. | 0,4 – 20 mm |
Edge cross-section Strip max. | 900m2 |
Edge material roll | 0,3 – 3mm |
Edge cross-section max – for PVC | 135 mm2 |
Edge cross-section max – for veneer | 100 mm2 |
Edge cross section max – for aluminum edge |
|
Roll diameter max. | 830 mm |
Pneumatic connection | 7-8 bar |
|
|
Joining machine | 2 x 3 kW; 150 Hz; 9000Upm with 2 DIA – joining blade heads, workpiece thickness max 30mm |
Workpiece preheating | For heating the workpiece edge before the glue application |
Melting unit ROBATECH PUR Premelter Type 18 / Homag / EU | For melting reactive polyurethane glues. Contents of container 18 l, opening size 170 x 170 mm, melting capacity approx. 10 kg / h, pressure adjustment up to 70 bar. |
Supplementary assembly aluminum edge Gluing part A20 | – Gluing part A20 prepared for gluing aluminum edge – Edge dimensioning: Rollware up to max. 1.5 mm Edge cross-section max. 42 mm2 – including special control and an additional horizontal roller mount |
Long glue probe |
|
Magazine 1 roll | For solid edges, stripware and rolls |
Pressure zone C | 1 driven pre-press roller 150mm, 6 post-press rollers 70 mm |
Folding units HL84 / 85 | 2 x 0.5 kW; 200 Hz; 12000 rpm |
Pre-milling unit | 2 x 1, 5 kW; 200 Hz; 12000 rpm |
Form milling unit FK 11 manual | 2 x 0.55 kW; 200 Hz; 12000 rpm |
Exchange head set automatically adjustable FK | 2 interchangeable heads for mounting on the form milling unit FK 11/13/21/23 |
Change head set manually adjustable FK | 2 interchangeable heads for mounting on the form milling unit FK 11/21 |
DIA- radius milling cutter set | For FK R = 2 mm, Z = 4 |
DIA- radius milling cutter set | For FK R = 1.5 mm, Z = 4 |
Post-extrusion profile Optimat PN10 | Scanning from top, bottom and side for chamfering or rounding of pre-milled PCV edges |
Quick change head set | 2 quick change heads R = 2 mm for PN10 for easy radius change |
Quick change head set | 2 quick-change heads R = 1 mm for PN10 for easy radius change |
Finishing unit FA 11 | Post-gluing device glue joint with carbide blade, Cleaning agent application by means of spray nozzle |
Control | Power control PC 22 instead of Homatic NC21 |
Additional roller rail at the inlet | With adjustment of the inlet run-up for max. 10 mm Workpiece thickness min. 14 mm for outer layer |
Scrapers for pressure rollers Pressure zone |
|
Stand by glue application | Glue temperature lowering at idle individually adjustable |
Counter sensing roller adjustment | At the top / bottom of the pre-milling unit |
Pre-installation for Boomerang ZHR05 |
|
Workpiece support Shear design | Me roll support, max. 1000 mm can be extended |
Extension shears | Per step jump |
Sliding sleds | For right-angled insertion of the workpieces with one-sided machining, fold-down |
Feed rate | 18 m/min |
Machine dimensioning: |
|
Overall length | 7975 mm |
Total width closed / open | 910/ 1540 mm |
Total height closed / open | 1803/ 2250 mm |
Mass | approx. 6000 kg |
Total connection value | approx. 31 kW |
Location | D-32683 Barntrup, Germany |
The machine is in very good condition !
(Subject to errors, technical modifications and prior sale)
