Description

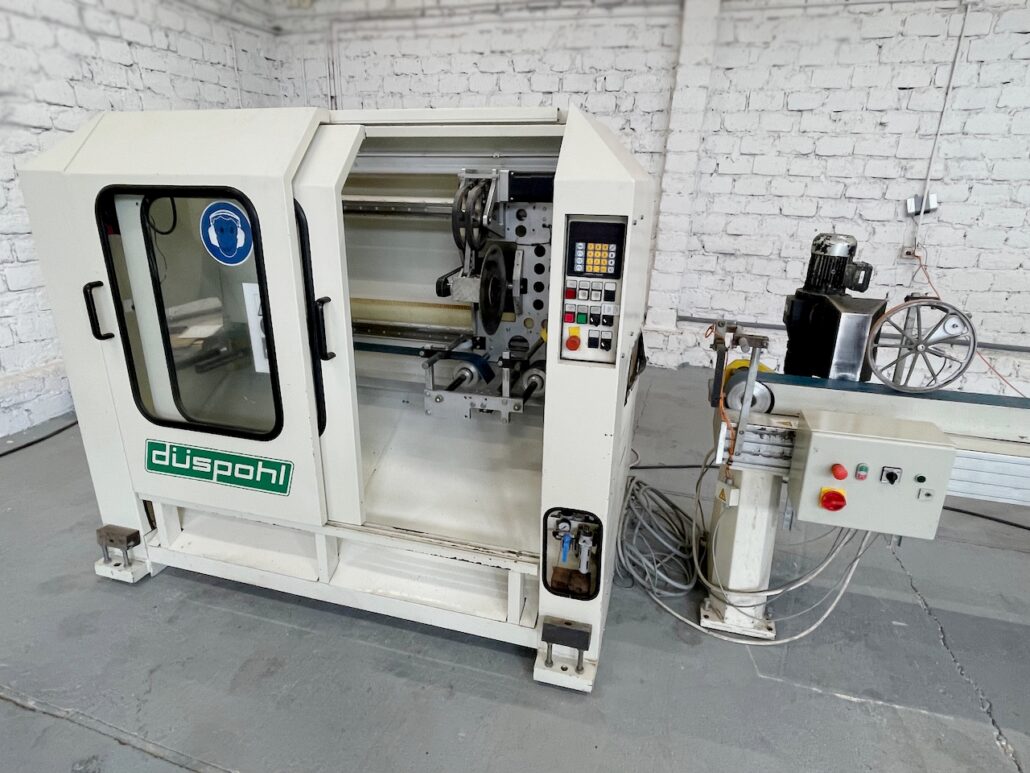

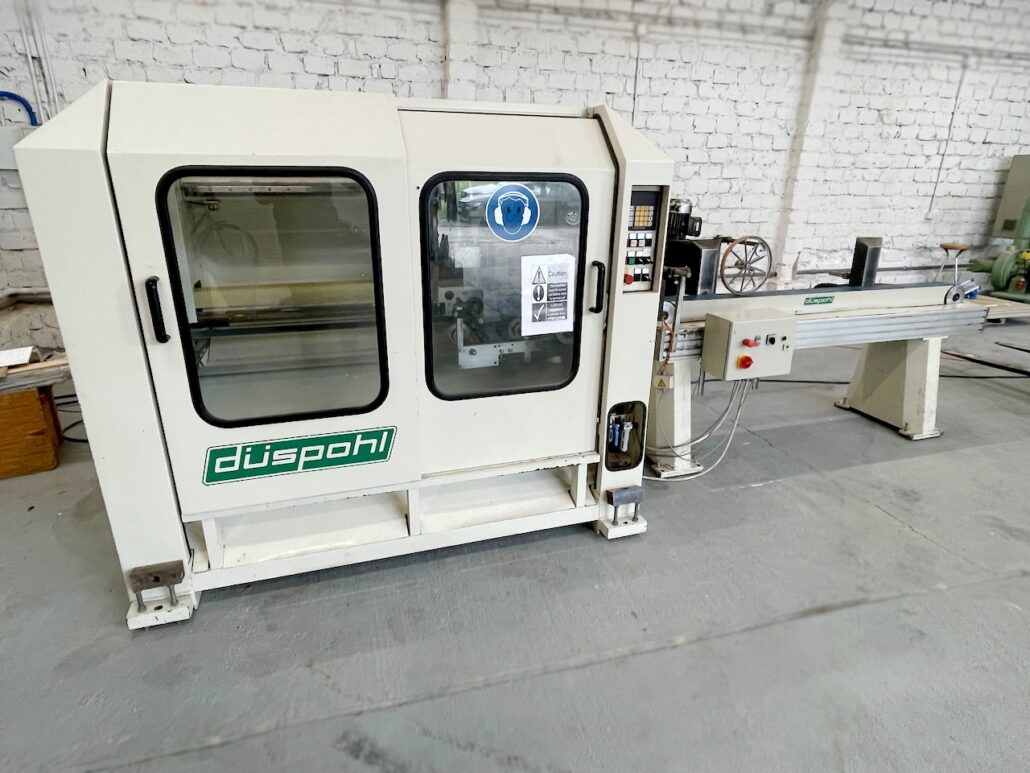

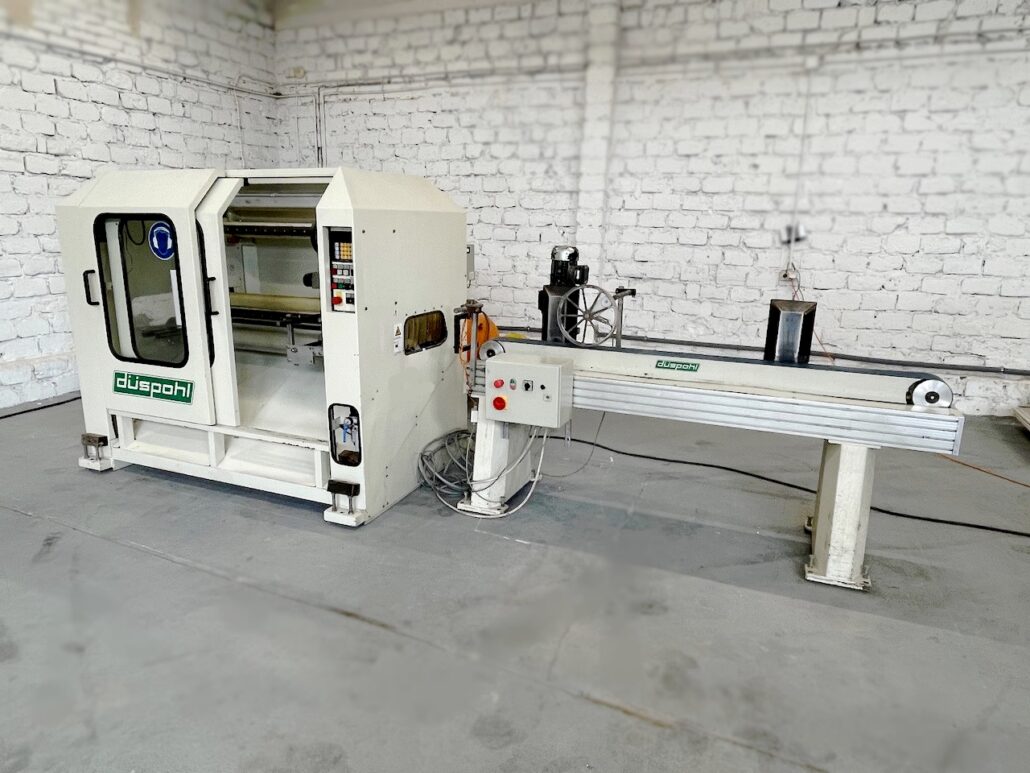

Machine for cutting to length or cutting profiles made of wood or synthetic materials or similar in a continuous flow.
Machine No .: | 00900192 |
Cutting area | 10 – 320mm |
Cutting height | max. 130mm |
Crosscut saw motor | 4 kW |
Saw blade speed | 4200 U/min |
Feed rate | 80 m/min |
Saw carriage drive | 5,90 kW |
Saw stroke with servo drive | 1,1 kW |
Drive band chop saw | 0,64 kW |
Number of cuts | 50 / min |
Accuracy | +-1,5mm |
Operating voltage | 400 V, 50 Hz |
Total connected load | about 14 kW |
Dimensions | 2010 x 1360 x 1800 mm |
Weight | 1200 kg |

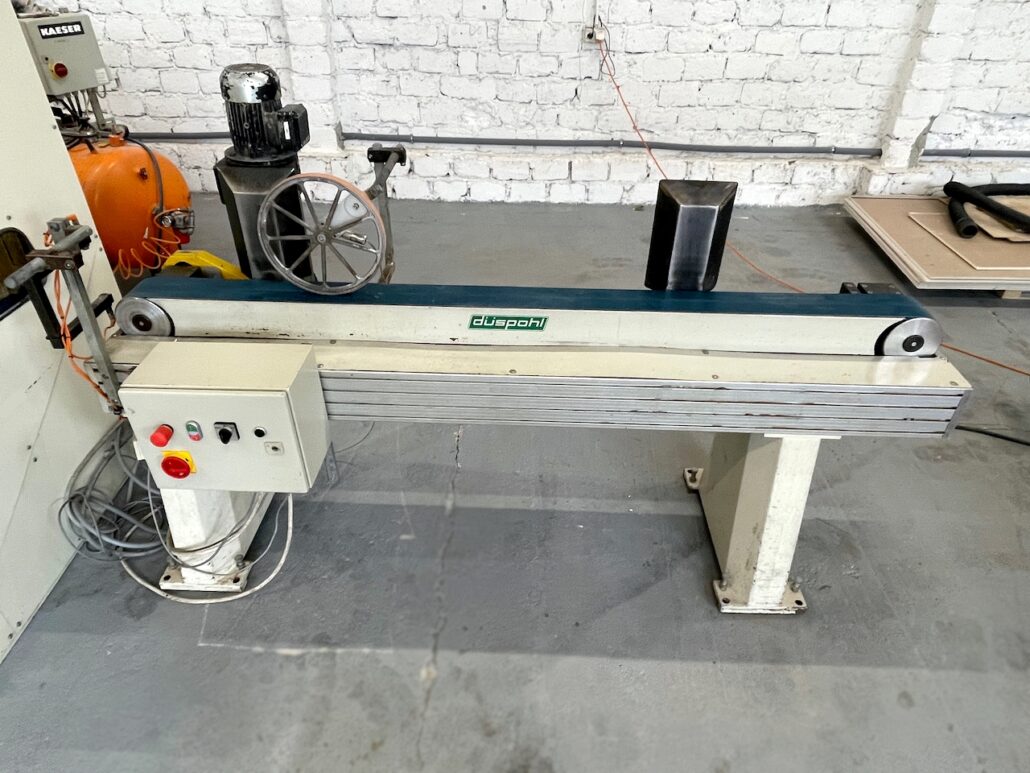

Machine complete with infeed belt | operating mode – automatic and manual |
New conveyor belts | |
(Subject to technical errors/modifications and prior sale)
