Description
Minimum cutting length 350 mm
Maximum cutting length 6000 mm
Blade diameter 500 mm
Shaft diameter 32 mm
Drive 2 x 2,5 kW
3 CNC axes (length + 2 angles)
Swivel range via variable speed motor 22° – 90°

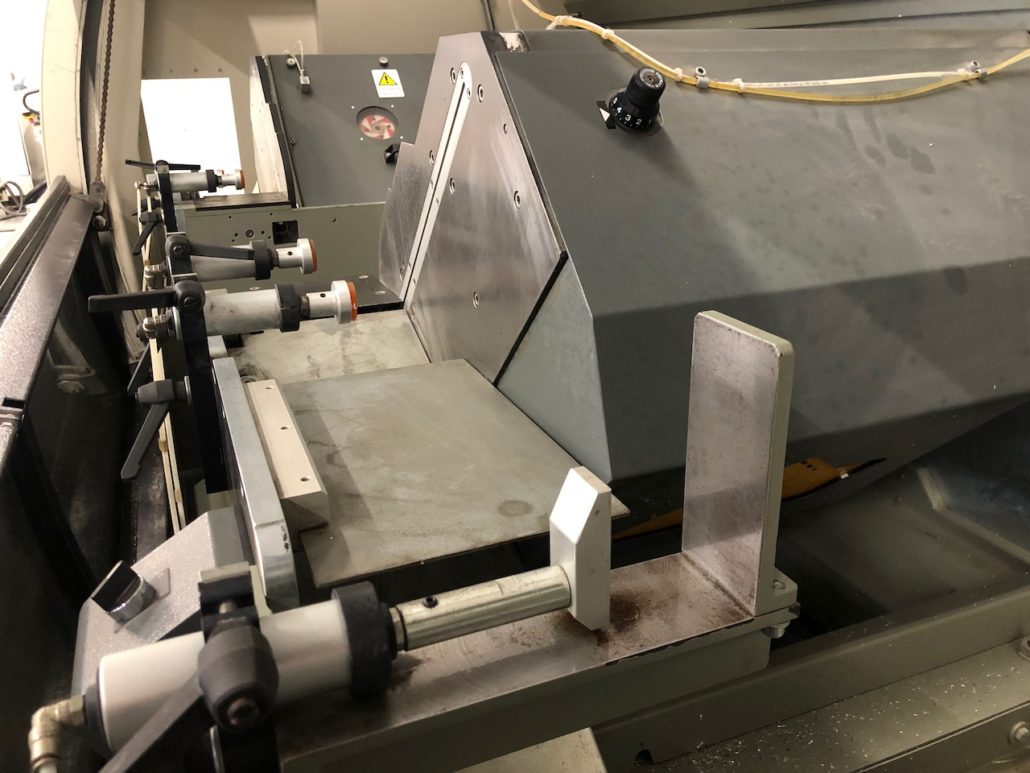

Clamping device 2 + 3 horizontal clamping cylinders
Blade motor revolutions 2800 / min
Total installed power 7 kW
Blade feed speed 0 – 60 mm / s
Cutting speed (speed blade peripheral) 73 m / s
Carriage travel speed 20 m / min
Length setting central saw unit adjustment with electronic position control
Operating pressure 6 + 8 bar
Air consumption per cycle at 6 bar 80 NL
Cooling installation
Printer
Soundproof cabin
Dimension 7950 x 2000 x 2095
Weight 3760 kg
(Subject to technical errors/modifications and prior sale)
