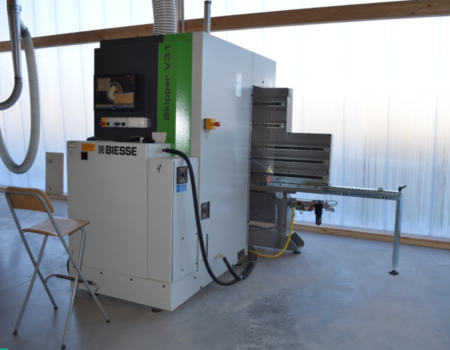

Description
|
Machine no. |
57349 |
|
Working field in X-direction |
2500 mm |
|
Working field in Y-direction |
900 mm |
|
Workpiece dimensions: |
|
|
Length – X |
200 – 2,500 mm |
|
Width – Y |
70 – 900 mm |
|
Thickness – Z |
10 – 70 mm |
|

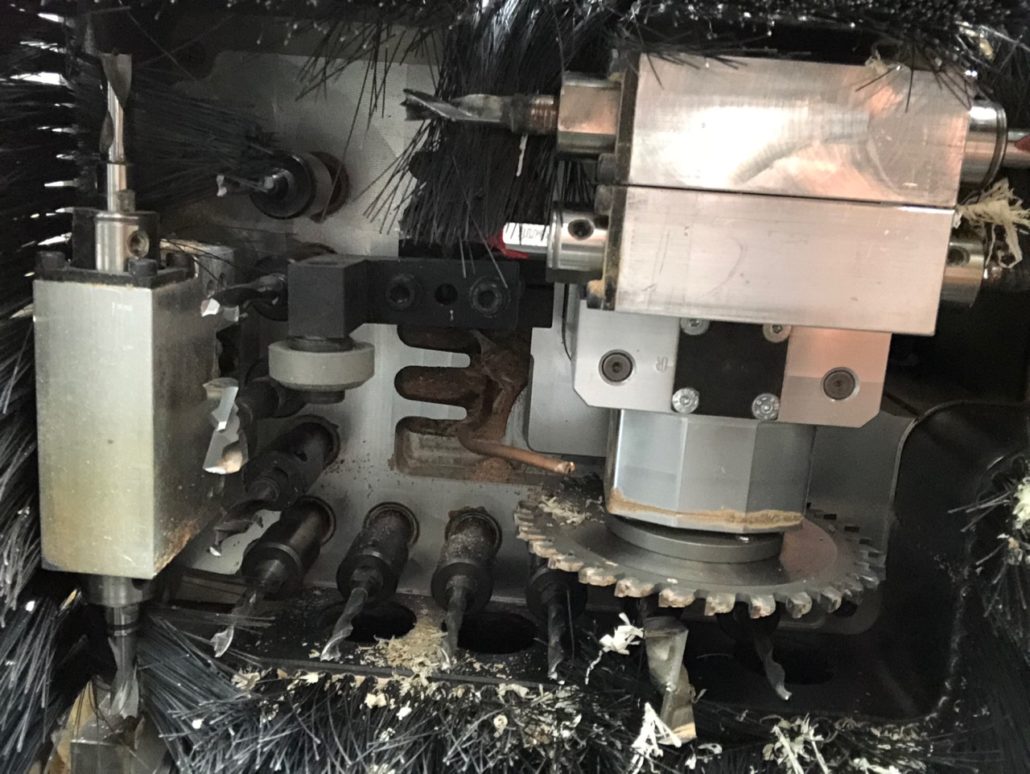

Drilling spindles horizontal, grid 32 mm |
4 + 2 (4 spindles in X-direction and 2 spindles in Y-direction) |
|
Drilling spindles vertical, grid 32 mm |
10 pcs. (5 spindles in X-direction and 5 spindles in Y-direction) |
|

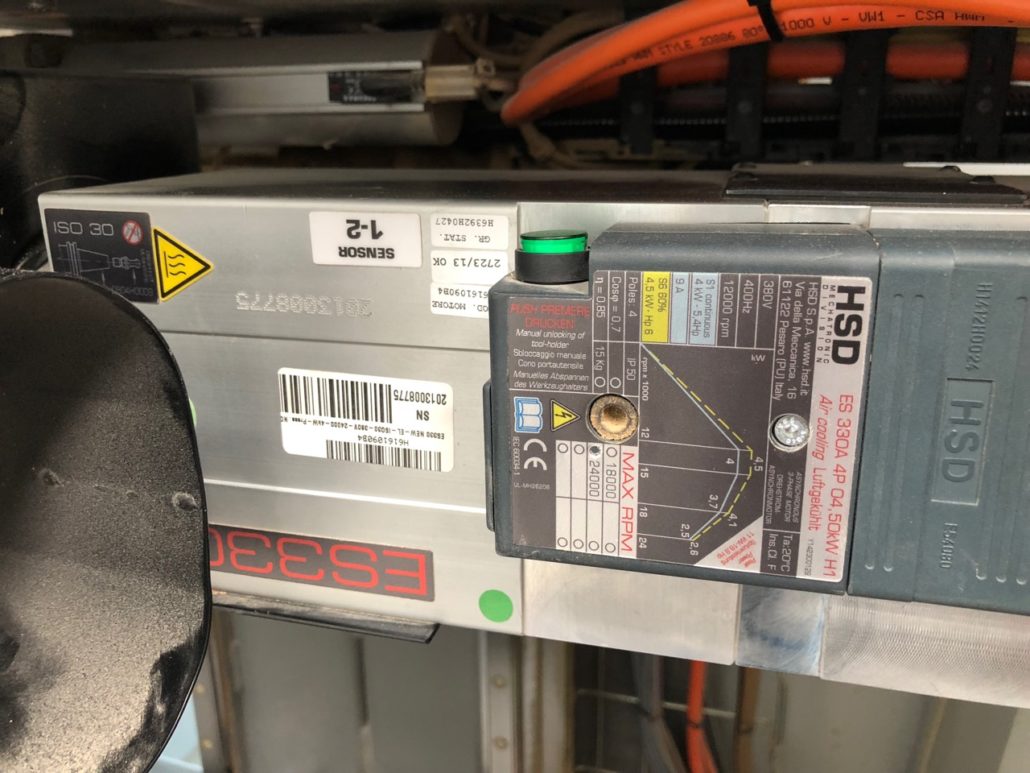

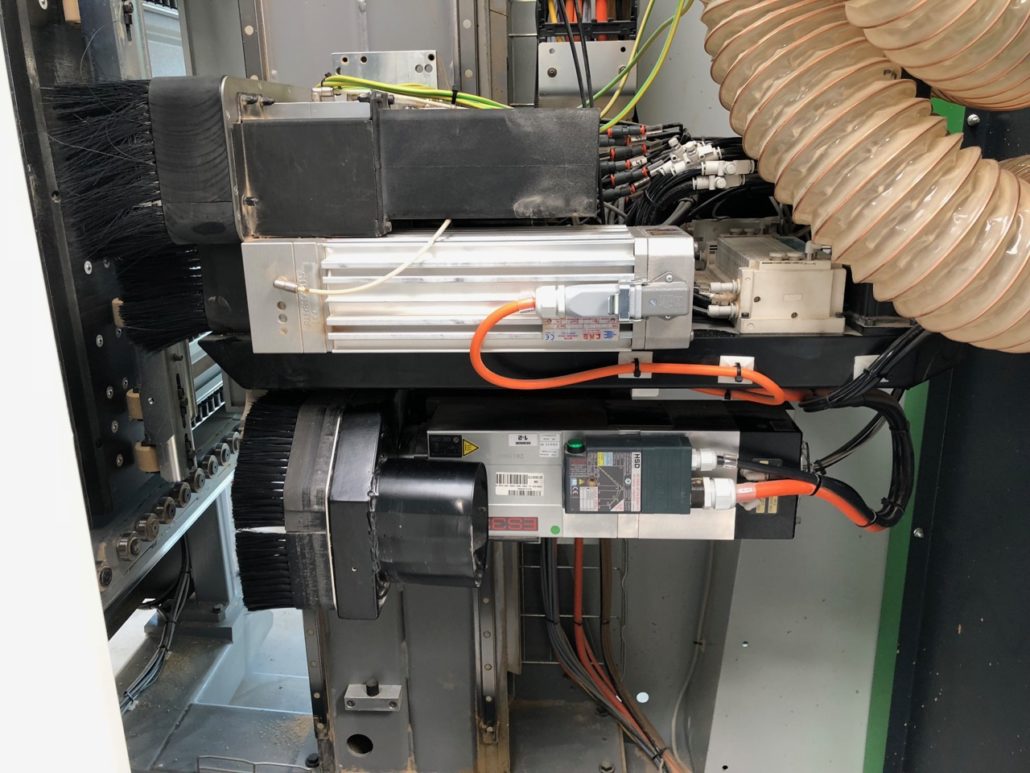

Milling spindle |
4.5 kW with ISO 30 adapter, air-cooled |
|
Rotation speed |
from 1,000 to 24,000 rpm |
|
Engine power |
12.2 kW |
|
Machine programming |
BiesseWorks |
|
Grooving saw |
Ø 120 mm in X, maximum depth for cuts 25 mm |
|
Collets |
1 pc. |
|
Extraction is needed |
2,750 m³ / h |
|
Air demand |
400 NL / min. |
|
Working height from the ground: |
700 – 750 mm |
|
Software packet |
HOPS 6 4 AV1-1.AV license |
|
Teleservice package |
via Internet |
|

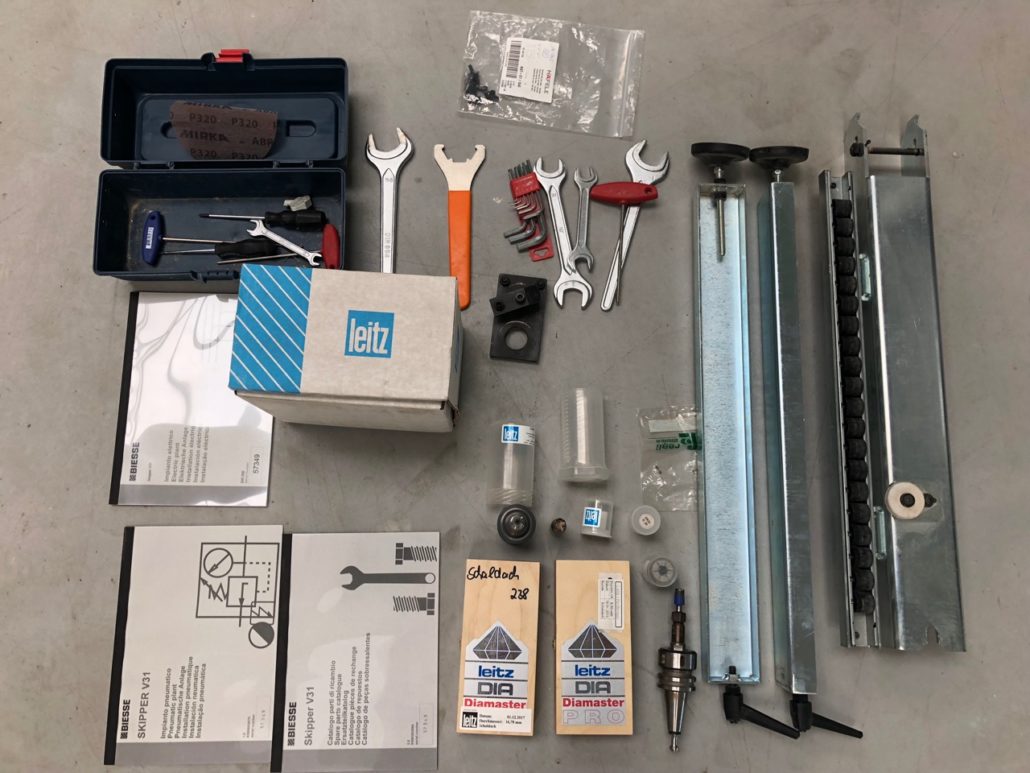

documentation |
available |
|
Electrical connection value |
12 kW |
|
Mass |
1300 kg |
(Subject to errors, technical modifications and prior sale)
