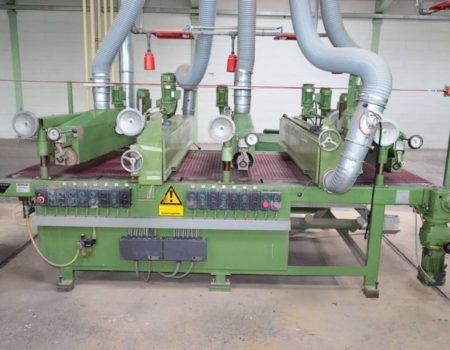

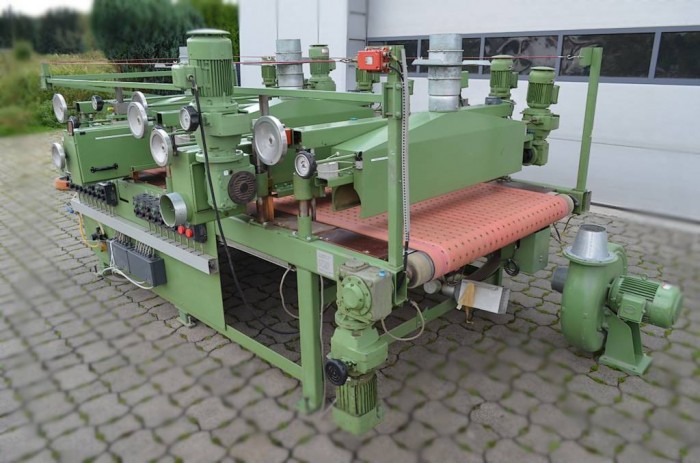

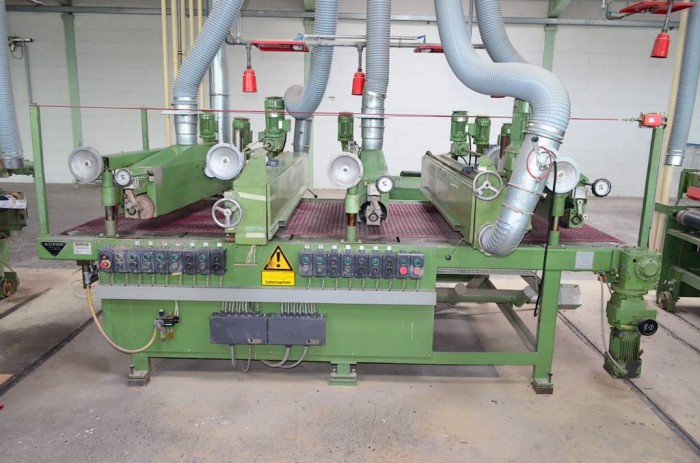

Brushing (staining) machine Bürkle
Sold Position
Description
| Masch.-no.. |
4610.10 |

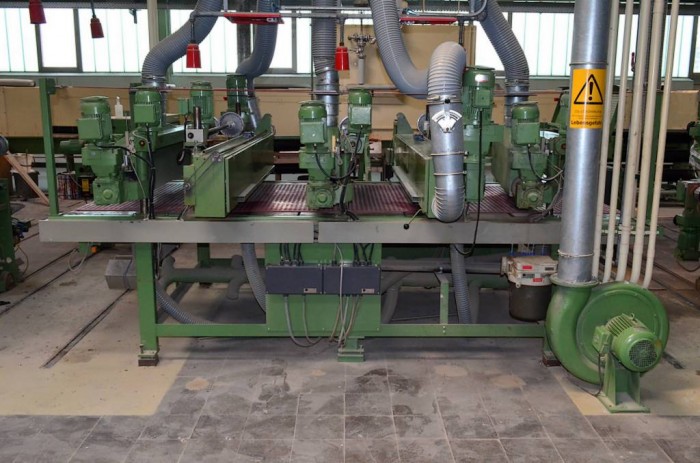

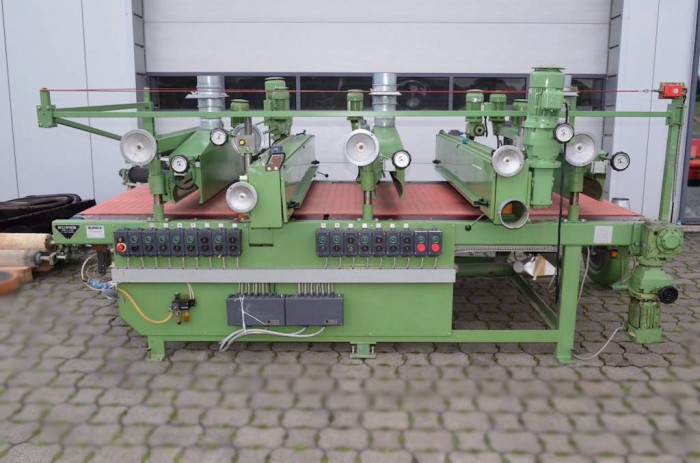

| Brushing machine with 5 units with the quick-change system allows the cleaning and setup times are reduced weter. |
|
| Secure the workpiece by vacuum transport conveyor. |
|
| Workpiece width |
max 1300 mm |
| Workpiece length |
250 – 3000 mm |
| Workpiece thickness |
3-120 mm |
| 5 Brush aggregates |
|

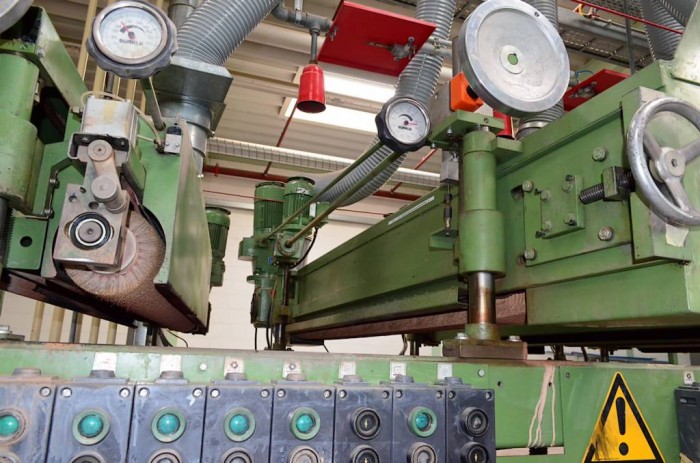

| Brush aggregate |
routierende brush, slanted, diameter 150 mm |
| Cross brush |
brush counter-clockwise |
| Brush aggregate |
routierende brush, diameter 150 mm |
| Cross brush |
brush right continuously |
| Brush aggregate |
routierende brush, 1 Molton wiping roller, diameter 150 mm |

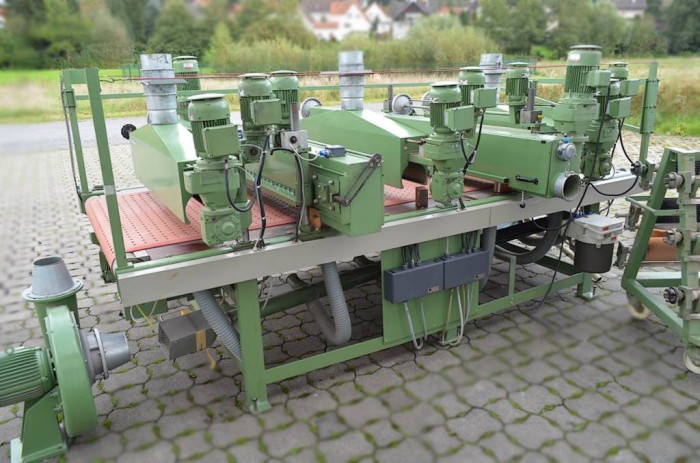

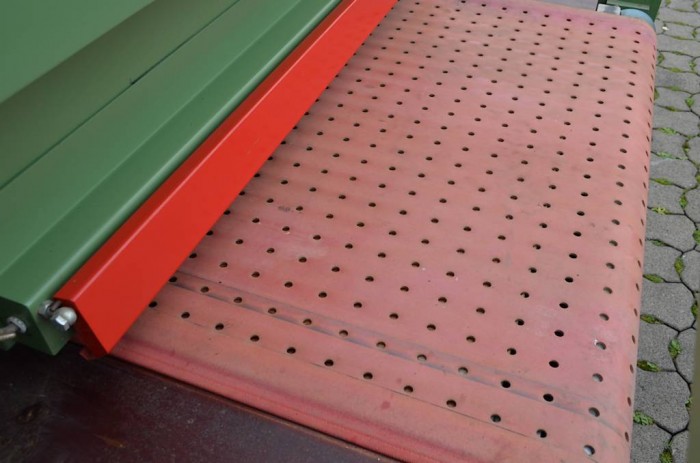

| Vacuum conveyor table |
with perforated conveyor belt and exhauster |
| Motorized height adjustment |
|
| Operating voltage |
400 V, 50 Hz |
| Constant working height |
880 mm + / – 20 mm |
| Feed |
8-32 m / min |
| Overall length |
3600 mm |
| . |
|

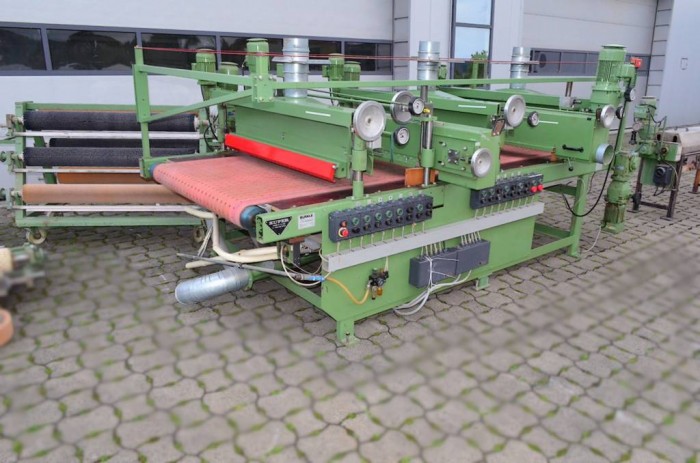

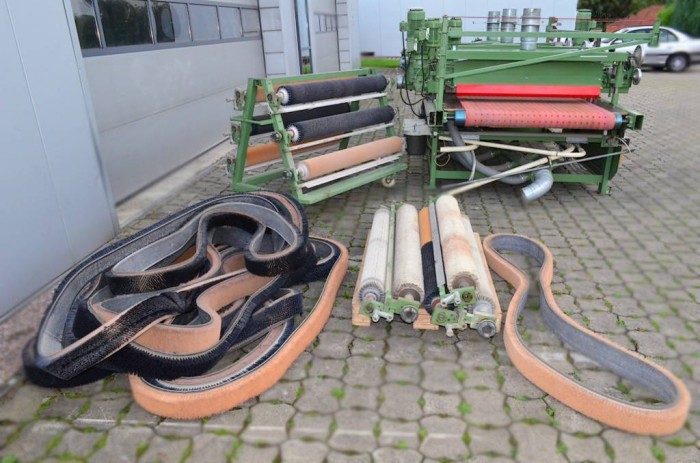

| Incl. Trolley |
with 6 pcs. brushes, diameter 150 mm |
| Incl. additional accessories |
with 5 pcs. brushes, diameter 150 mm |
| Incl. Cross distributor brushes |
about 10 pcs. of different varieties |

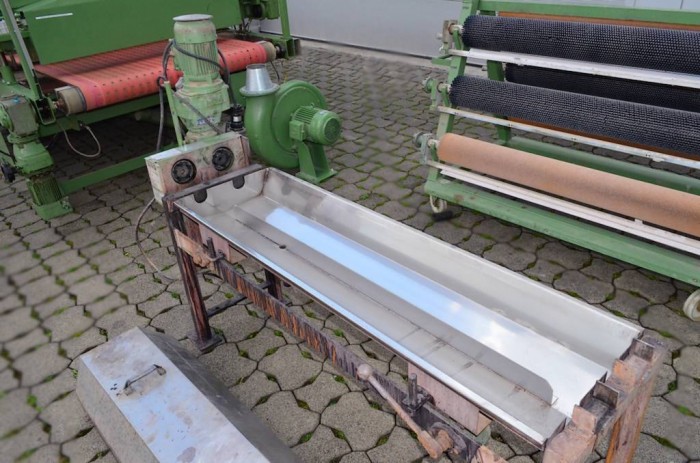

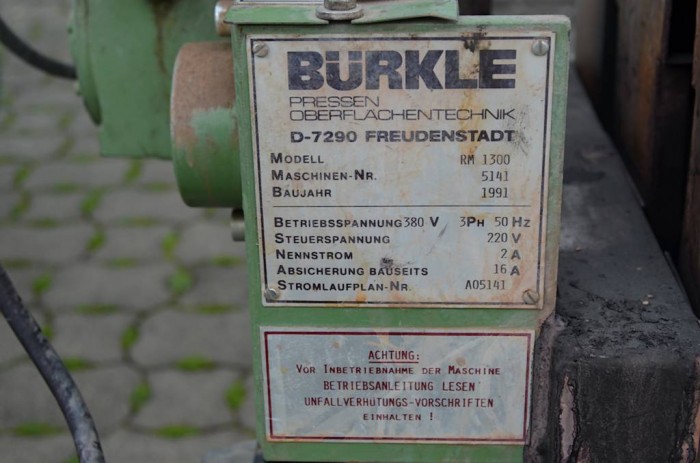

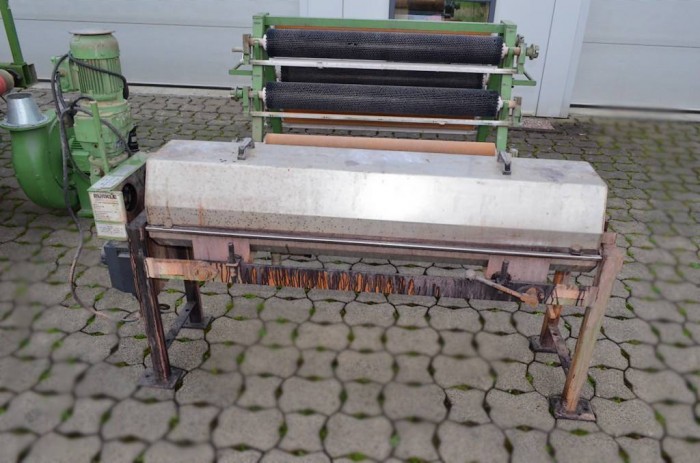

| Incl. Bathtub Bürkle RM 1300 |
for washing the rotating brushes |
| Location |
D-32683 Barntrup, stock |
